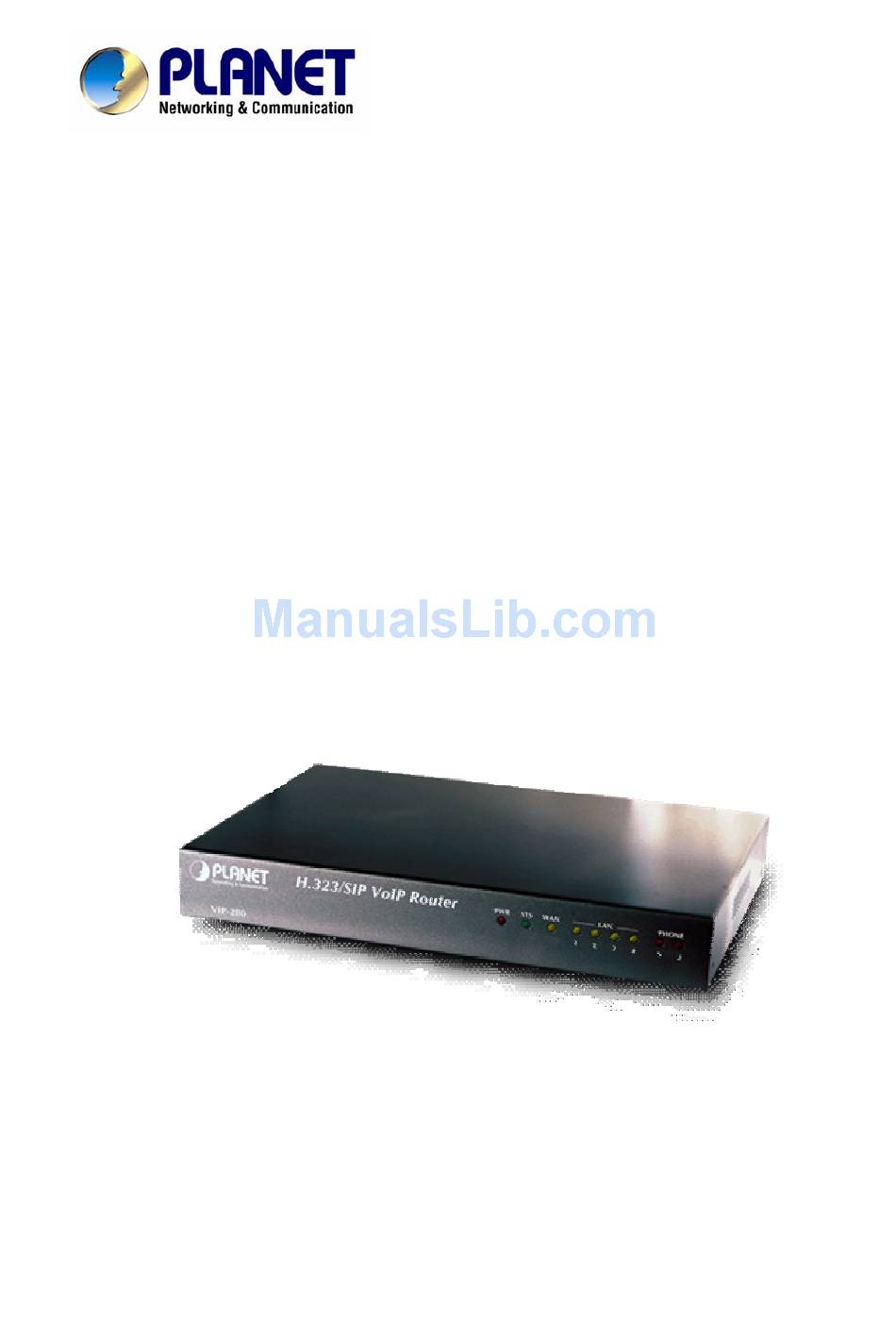

- Page 1 H.323/SIP VoIP Router VIP-280 User’s manual...
-
Page 2: Ce Mark Warning
Copyright Copyright (C) 2005 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted. - Page 3 Revision User’s Manual for PLANET H.323/SIP VoIP Router: Model: VIP-280 Rev: 1.0 (Sept. 2005) Part No. EM-VIP280V1...
-
Page 4: Table Of Contents
LAN IP address configuration via web configuration interface...10 WAN IP address configuration via web configuration interface ... 11 Chapter 3 Network Service Configurations... 13 Configuring and monitoring your VIP-280 from web browser ...13 Overview on the web interface of VIP-280...13 Manipulation of VIP-280 via web browser ...13 Chapter 4 VoIP Configurations ... - Page 5 Virtual Server...34 DMZ ...34 System Maintenance...35 Configurations ...35 Reboot System...36 Save Modification to Flash Memory...36 Appendix A Voice communications ... 37 Default Configuration ...37 Peer-to-Peer (P2P) mode ...38 Voice communication via SIP proxy server –SIP50...40 Appendix B VIP-280 Specifications... 43...
-
Page 6: Chapter 1 Introduction
VoIP technology, the PLANET VIP-280 is capable of handling both SIP and the H.323 calls. Up to 4 registrations to the SIP proxy or H.323 Gatekeeper, the VIP-280 is able to make calls to either H.323 or SIP voice communication environment. Moreover, the VIP-280 is the ideal choice for Voice over IP communications and providing integrated Internet sharing features, such as Virtual server, SPI firewall protection, and DMZ support;... -
Page 7: Package Content
The contents of your product should contain the following items: H.323/SIP VoIP router Power adapter Quick Installation Guide User’s Manual CD RJ-11 cable x 2 Physical Details The following figure illustrates the front/rear panel of VIP-280. Front Panel of VIP-280 Rear Panel of VIP-280... -
Page 8: Led Display & Button
LED Display & Button LED Indicators Power is supplied to the VoIP router System LED will be ON when the registration toward the GK/SIP proxy is successful Orange: the VoIP router is connected to WAN at 10Mb/s. Green: the VoIP router is connected to WAN at 100Mb/s. LAN 1 ~ LAN 4 Orange: the VoIP router is connected to LAN at 10Mb/s. -
Page 9: Chapter 2 Preparations & Installation
Microsoft Internet Explorer 4.01 or higher with Java support Default LAN interface IP address of VIP-280 is 192.168.0.1. You may now open your web browser, and insert 192.168.0.1 in the address bar of your web browser to logon VIP-280 web configuration page. -
Page 10: Lan/Wan Interface Quick Configurations
LAN/WAN Interface quick configurations Nature of PLANET VIP-280 is an IP Sharing (NAT) device, it comes with two default IP addresses, and default LAN side IP address is “192.168.0.1”, default WAN side IP address is “172.16.0.1”. You may use any PC to connect to the LAN port of VIP-280 to start machine administration. -
Page 11: Wan Ip Address Configuration Via Web Configuration Interface
Default: 192.168.0.1 It is suggested to keep the DHCP server related parameters Hint in default state to keep machine in best performance. After confirming the modification you’ve done, Please click on the Modify button to make the changes effective. WAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 172.16.0.1) of VIP in the adddress bar. - Page 12 after you modify the parameters.
-
Page 13: Chapter 3 Network Service Configurations
Provides user input data fields, check boxes, and for changing machine configuration settings Displays machine running configuration To start VIP-280 web configuration, you must have one of these web browsers installed on computer for management Netscape Communicator 4.03 or higher Microsoft Internet Explorer 4.01 or higher with Java support... - Page 14 VIP-280 main page...
-
Page 15: Chapter 4 Voip Configurations
Chapter 4 VoIP Configurations VIP-280 Status This page main display the current and last time VoIP call status & result. Parameter Description PC Time Gateway Time Ports Message Port Type Display Name Status Idle Signal Connected IP Caller ID Start Time... -
Page 16: Line Setting
Register Sever Status Error Message Line Setting This page will setup the phone line information each port. Parameter Description Port Interface Name Line Number TxGain RxGain Inbound Outbound This VoIP router can register to 4 GK/SIP proxy simultaneously. Users can setup the GK/SIP proxy information on “VoIP Config Server”... -
Page 17: Tone Setting
Hotline Tone Setting This page defines the tones generated to the phone connected to the phone port. All lines use same tone parameters. After modify the tone parameters, you must save modify then Reboot to let the modified parameters work. Parameter Description Detect Voice Busy Cycle Tone define Table... -
Page 18: Voip Call Out
VoIP Call Out This page defines the routing rule for Call out to VoIP. (User key in the phone number through phone set dial pad, then VoIP router translate the phone number by the routing table setting here to destination IP, and dial out number then call out via network protocol). Each time when you off hook the phone connected to this VoIP router, you will hear a dial tone to remind you to key in the phone number, after you input the number you called, if digits of the number of you called is not exceed the Max Digits, please remember to press the # key for ending the input. - Page 19 Min Digits Max Digits IP Address Strip Prefix matched with the rule will call out by this rule define. Please Notify there is a compare order rule on this routing table. That mean the VoIP router will check the rule list from top to bottom one by one, any rule item matched with the prefix digits that user key in will go to call out directly no regard to the rest rules below.
-
Page 20: Voip Call In
Profile Delete To add new rule item on routing table, please assign the item number you want to insert before, input AREA CODE and IP address then press ADD button to add it on the list. Then modify the necessary information on the routing table list. - Page 21 line and number to dial out. Parameter Description Area Code Strip Prefix Maximum Minimum From Line No Define the Prefix number this rule service, any VoIP called from network dialed number prefix digits matched with the rule will call out to phone by this rule define.
- Page 22 Server Alert Profile Forward Delete call will ring the dedicate phone line that assigned with matched number. Assign which server to authorize this incoming VoIP call before call out. For example, if the dial number should be checked by server 1 setting on the “Regster Server”...
-
Page 23: Call Setup
Please remember to press the modify button to take it effect. For store back to flash memory, please press “Save Modification” (Plaase refer to the “Syetem Maintenance Call Setup This page defines the optional special VoIP parameters when making/received a VoIP call. For define some special parameters for different VoIP equipment or authorize purpose, please add a profile at “VoIP Config Call Routing... -
Page 24: Call Forwarding
T.38 FAX Relay Package Frame Q.931 Fast Start ID2,ID3,ID4 Delete To add new profile item on routing table, please assign the number you want to insert before, input profile NAME then press ADD button to add it on the list. Then modify the necessary information on the routing table list. - Page 25 Line busy No answer Please add a profile at “VoIP Config Call out Routing table (Please refer to the “VoIP Config Parameter Description Other Name Always On Busy No Answer No Answer Sec. Delete To add new rule item on routing table, please assign the item number you want to insert before, input AREA CODE then press ADD button to add it on the list.
-
Page 26: Register Server
Register Server If this VoIP router want to use GK/SIP proxy service to transfer the VoIP call, you can input the GK /SIP information here. The VoIP router can register to up to four GK/SIP proxy simultaneously. Parameter Description Register Server Status SR1~SR4 Remark Proxy... -
Page 27: Webcall
When voice communication is established via H.323 protocol, please add a ”h323:” in front of the IP address. Hint Such as: the GK IP address is 192.168.0.100, then input “h323:192.168.0.100” in the IP address. When voice communication via the SIP protocol, please add a “sip:”... -
Page 28: Webcall Config
Parameter Description Gateway IP Name Call Stop WebCall Config This page let you define the welcome message, LOGO, call number when using Web Call function. Web Call accept List: Define the display name on select option during Web call. Parameter Description Name Number Delete... - Page 29 Delete Stop Set Welcome page: Set up the authorization check option for Web Call function. When Enable the authorization check, user need to input the valid user name and password to use the Web Call function. Set User: valid name for Web Call user Password: valid password for Web Call user.
-
Page 30: Chapter 5
Chapter 5 System Configurations System Config Bridge Mode Setting This page allows you to disable/enable this device become bridge device or not. When it becomes a bridge device, bridge interface use LAN's IP address, LAN's subnet mask. When working on Bridge Mode, the VoIP router will use only the LAN setting IP, The VoIP router will use the same LAN IP setting as WAN IP. -
Page 31: Lan To Wan Access Rules
Basic Settings: You can configure basic firewall settings in this router. LAN-to-WAN Access Rules: You can define LAN-to-WAN network access rules which evaluate the network traffic's source IP address, destination IP address, and communication port to decide if it's allowed to pass through the firewall. WAN-to-LAN Access Rules: You can define WAN-to-LAN network access rules which evaluate the network traffic's source IP address, destination IP address, and communication port to decide if it's allowed to pass through the firewall. -
Page 32: Wan To Lan Access Rules
WAN to LAN Access Rules This pages allows you to define WAN-to-LAN network access rules which evaluate the network traffic's source IP address, destination IP address, and communication port to decide if it's allowed to pass through the firewall. By default, the stateful packet inspection module of this router blocks all traffic to the LAN that originates from the Internet. -
Page 33: Dhcp Server Setting
DHCP Server Setting This page allows you to set up configurations of DHCP server built in the router. The DHCP server of this router provides IP addresses, the subnet mask, the gateway address, and DNS server addresses to the LAN computers and devices dynamically. The default IP address space of this DHCP server is 192.168.0.x, with subnet mask 255.255.255.0, and the default gateway of this network is the IP address of this router (192.168.0.1). -
Page 34: Virtual Server
Virtual Server This page allows you to map a TCP or a UDP port of the router to a host which actually deals with requests on the private network. This page let you set up the DMZ service on the VoIP router. -
Page 35: System Maintenance
System Maintenance This page let you backup / Restore all of your configuration parameters on the VoIP router. It is very good idea to back up all of your VoIP router configuration parameters after install. Configurations To Backup, press Download setting backup file, and input the file name you want and file location to save. -
Page 36: Reboot System
Reboot System Use the Reboot button on this page to reboot your VoIP router, before you reboot, please make sure you have to press the “Saved modification” to save your current configuration to Flash ROM, otherwise all the change will be disappear after reboot. Save Modification to Flash Memory Most of the VoIP router parameters will take effective after you modify, but it is just temporary stored on RAM only, it will disappear after your reboot or power off the VoIP router, to save the parameters into... -
Page 37: Appendix A Voice Communications
Appendix A Voice communications There are several ways to make calls to desired destination in VIP-280. In this chapter, we’ll lead you step by step to establish your first voice communication via web browsers operations. Default Configuration Without any configuration, your VIP-280 is come with following basic information. -
Page 38: Peer-To-Peer (P2P) Mode
Supposing you have one VIP-280 connects to four telephones, just pick up phone 1 and dial ‘202’, phone 2 should rings. VIP-280 local port #2 Line number: 201 Peer-to-Peer (P2P) mode VIP-280 WAN IP Address: 172.16.0.1 Number: 7001 VIP-280 configurations: STEP 1: Please log in machine via web browser, and select Line Setting in the Line config menu. - Page 39 After the settings for the remote calling party, you may dial number 1001 to connect to the H.323 IP phone, and number 2001 to connect to the SIP IP phone. If you’re using the VIP-280, you may dial or receive the Hint...
-
Page 40: Voice Communication Via Sip Proxy Server -Sip50
Authentication VIP-280 IP Address: 172.16.0.28 Line Number: 280 Machine configurations on the VIP-280: STEP 1: Please log in machine via web browser, and select Register Server setting in the VoIP Config menu. In this setting page, please insert the account/password information, and then the sample configuration screen is shown below (in this sample, we’re using the SIP-50 as... - Page 41 STEP 2: Select Line Setting in the Line config menu. In this Line Setting page, please insert the telephone number assigned to this line, and then the sample configuration screen is shown below (in this sample, we’re using number 280 for incoming calls). STEP 3: If wants to assign the individual voice codec (G.723.1/G.729/G.711) to establish the voice communications, please browse the Call Setup in the Call Routing menu, and refer to the...
- Page 42 ====================================================== Test the scenario: To verify the VoIP communication, you may make calls from SIP client (VIP-280) 280 to the SIP client (VIP-320) 320 or reversely make calls from SIP client (VIP-320) 320 to the SIP client (VIP-280) 280. =======================================================...
-
Page 43: Appendix B Vip-280 Specifications
Appendix B VIP-280 Specifications Product H.323/ SIP VoIP Router Model VIP-280 Hardware 1 x 10/100Mbps RJ-45 port 4 x 10/100Mbps RJ-45 port 2 x RJ-11 connection Standards and protocol H.323 version v2/v3,H.323 Fast start, and H.245 DTMF relay, SIP 2.0...
