Examples

Denying a specific subnet

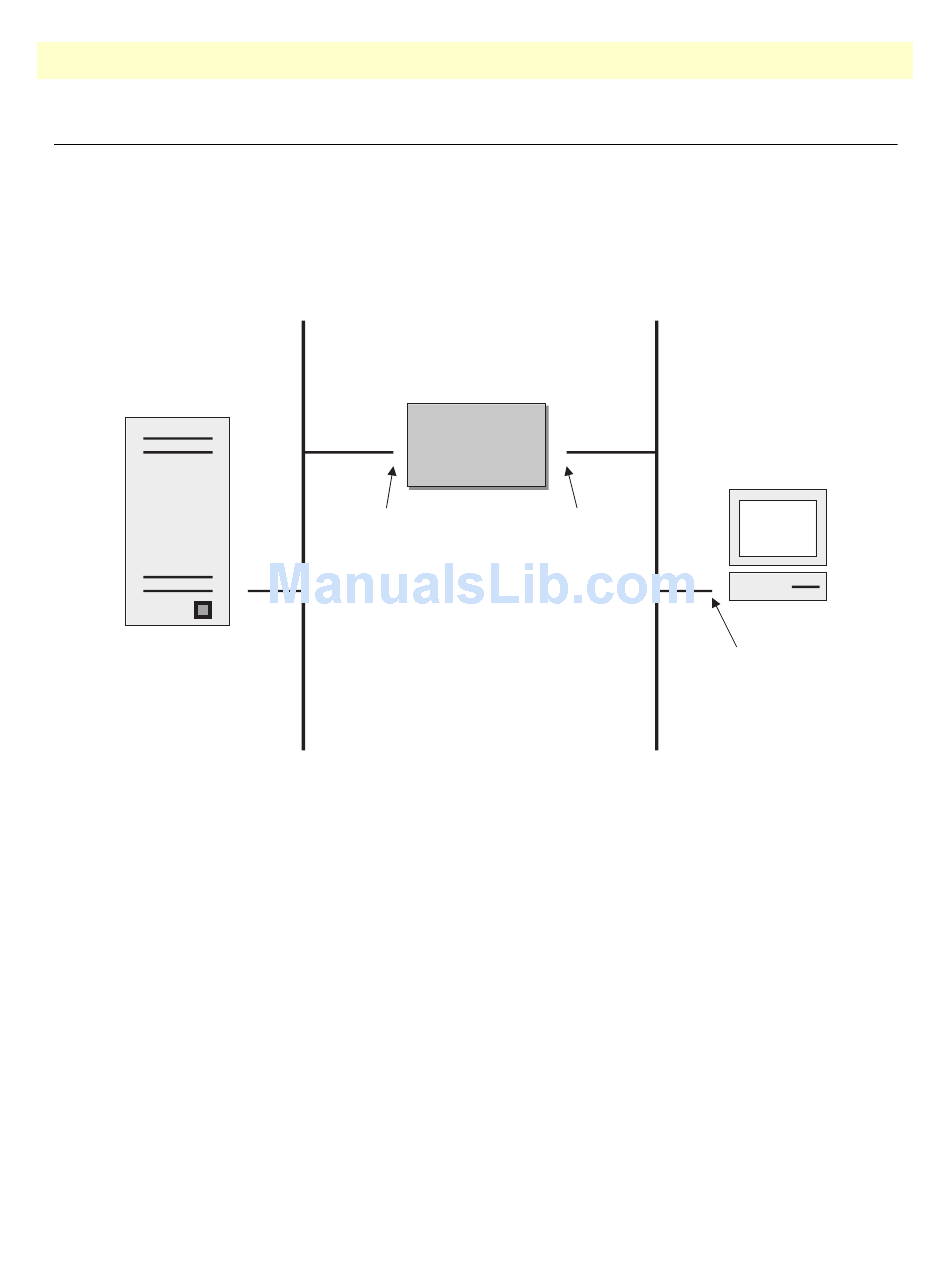

Figure 39 shows an example in which a server attached to network 172.16.1.0 shall not be accessible from outside
networks connected to IP interface lan. To prevent access, an incoming filter rule named Jamming is defined,
which blocks any IP traffic from network 172.16.2.0 and has to be bound to IP interface lan.
Server
The commands that have to be entered are listed below.
172.16.2.1>enable
172.16.2.1#configure
172.16.2.1(cfg)#profile acl Jamming
172.16.2.1(pf-acl)[Jamming]#deny ip 172.16.2.0 0.0.0.255 172.16.1.0 0.0.0.255
172.16.2.1(pf-acl)[Jamming]#permit ip any any
172.16.2.1(pf-acl)[Jamming]#exit
172.16.2.1(cfg)#context ip router
172.16.2.1(cfg-ip)[router]#interface lan
172.16.2.1(if-ip)[lan]#use profile acl Jamming in
172.16.2.1(if-ip)[lan]#exit
172.16.2.1(cfg-ip)#copy running-config startup-config

Examples

172.16.1.0
secure
172.16.1.1/24
Figure 39. Deny a specific subnet on an interface
24 • Access control list configuration
172.16.2.0
lan
Node
Node
172.16.2.1/24
Host
172.16.2.13/24
