Figure 74 shows the corresponding CS Context and call router elements in node A:
interface isdn IF-PBX-A
We assume that the CS interfaces have already been created and configured. So we can start directly with the
call router elements.
Since the command sequence is quite long it is useful to create the configuration offline and download it using
TFTP.
Note
In the following lines the prompt is omitted as in a configuration file and for
better readability.
#-------------------------------------------------------------
# Call Router Config File
#-------------------------------------------------------------
context cs switch
#
# Hunt-group service "SVC-FALLBACK" to catch VoIP network errors
#
service hunt-group SVC-FALLBACK
no cyclic
timeout 6
route call 1 dest-table ISDN-SERVICE
route call 2 dest-interface LOCAL-BREAKOUT
Call router configuration task list
Context
Call Router
SVC-
FALL
BACK
TAB- TAB-
ISDN- DEST-
SERVICE A

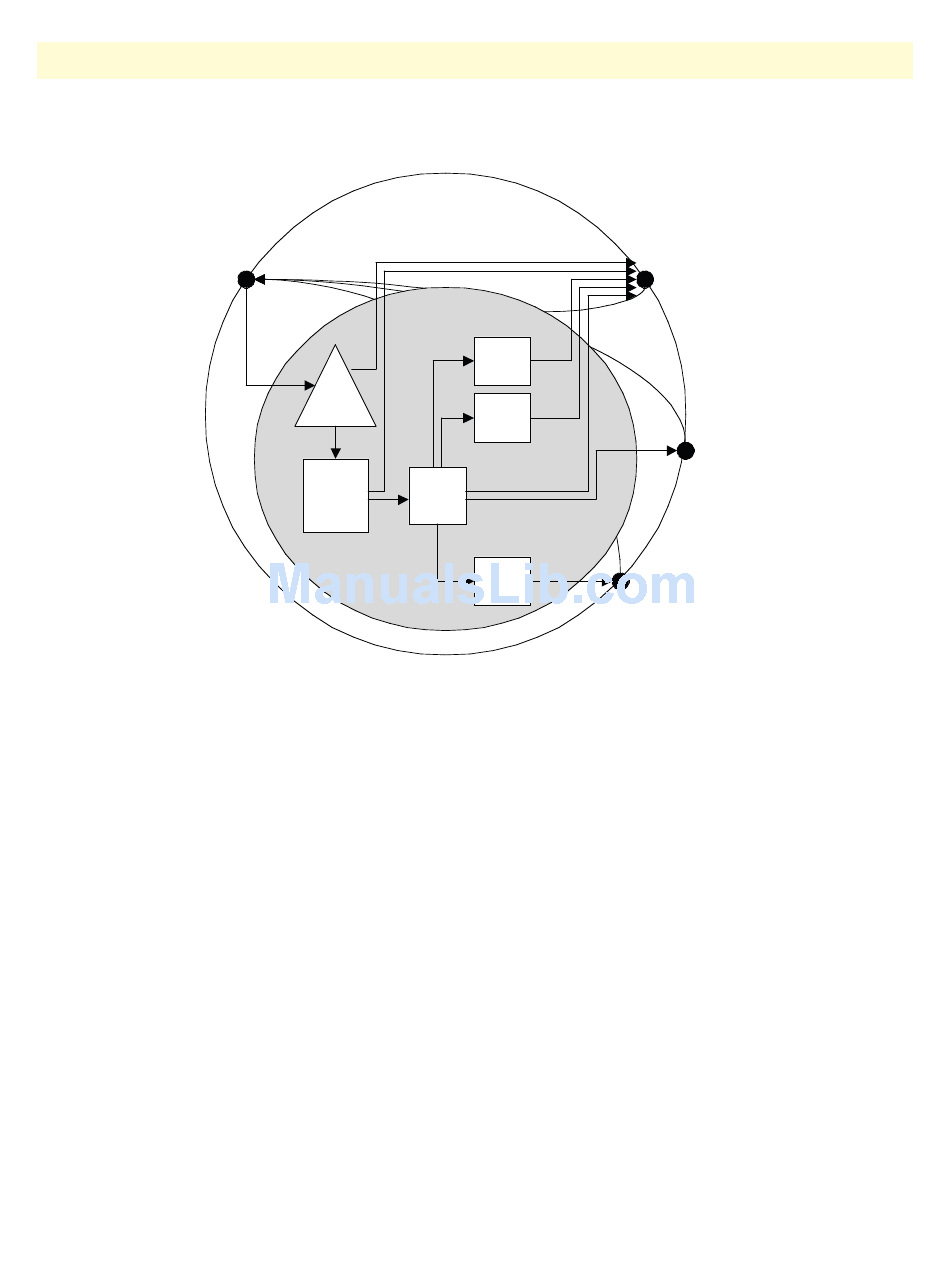

Figure 74. CS context and call router elements
40 • Call router configuration
interface isdn IF-LOCAL-BREAKOUT
MAP-
CAC-
APPLE
MAP-
CAC-
ORANGE
MAP-
CAC-
interface sip IF-NODE-C
MELON
interface h323 IF-NODE-B
514
