SmartWare Software Configuration Guide

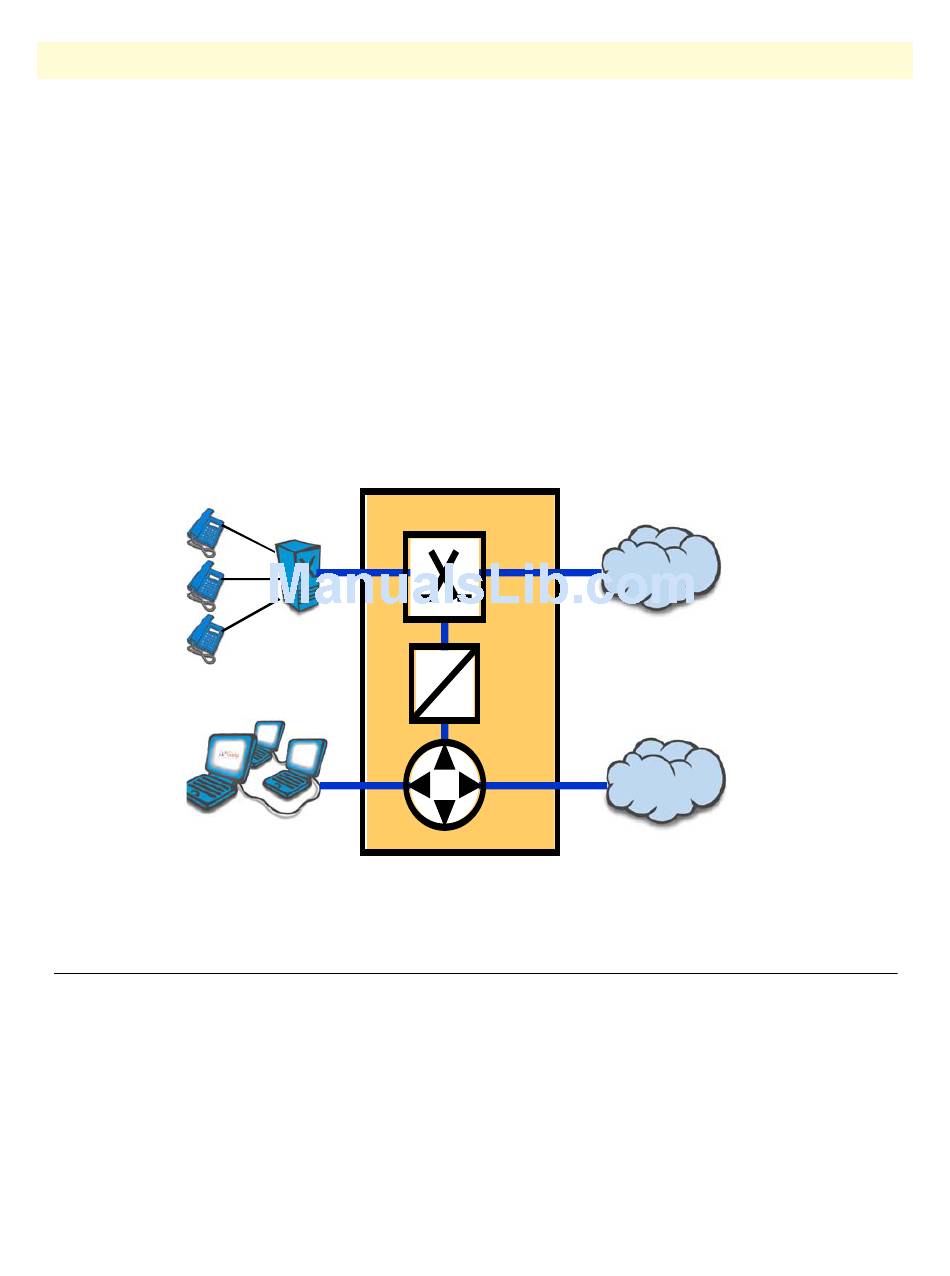

Figure 1 depicts the basic system model of a Patton SmartNode. All SmartNode devices have the following
main components:
• 64k circuit switching between on-board ISDN ports and between ISDN and PSTN interface cards. The
circuit switching engine uses dedicated hardware resources and therefore can bypass the VoIP gateway and
packet routing engine.
• A gateway (GW) that converts telephone circuits into Internet protocol (IP) packet streams and vice versa.
H.323-compliant and SIP Voice over IP (VoIP) is supported.
• An IP router with on-board ports and optional data interface cards is QoS enabled, thereby allowing classi-
fication, shaping, and scheduling of multiple service classes.
For more detailed hardware information, refer to the getting started guide that came with your Smart-
Node system.
Local
Telephony
IP LAN

SmartWare embedded software

SmartWare is the application software that runs on the SmartNode hardware platforms. SmartWare is available
in several releases. Refer to SmartWare release notes for detailed information about hardware support.
A SmartWare build is a binary image file. It is usually divided into several checksum-protected files to improve
download efficiency and security. The download to the SmartNode is handled in sequence by using a down-
load batchfile. Refer to chapter 5,
loads.

SmartWare embedded software

Circuit Switch
Node
Gateway
IP Router
Figure 1. Basic system (abstract) model
"System image handling"
Public Telephony
VoIP
IP WAN
on page 64 for details on SmartWare image down-
1 • System overview
