Controls Interface

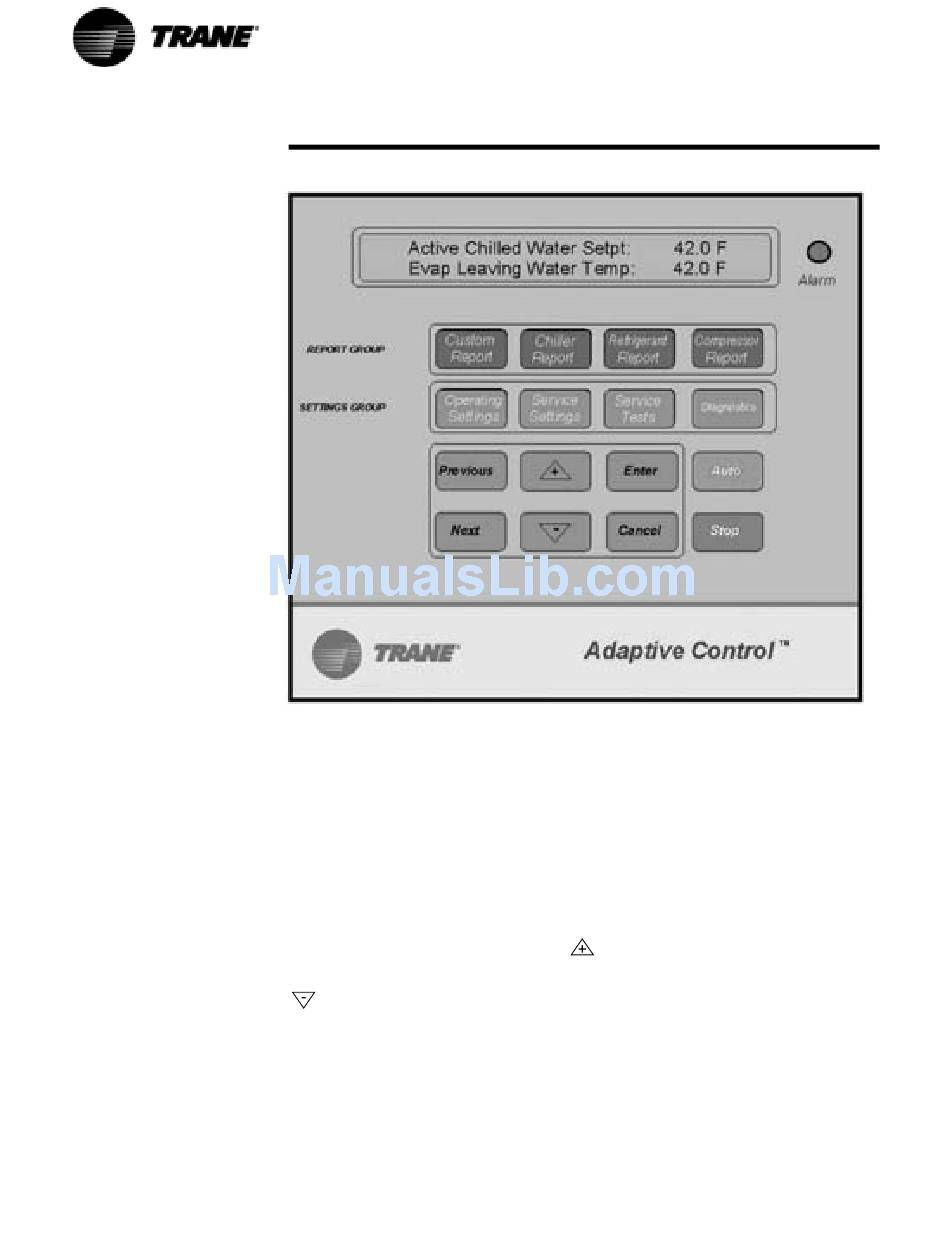

Figure 39 Operator Interface Adaptive Control
Selected Group Report
This group of four keys allows the operator to select and view the following
reports:
- Custom Report
- Chiller Report
- Refrigerant Report
- Compressor Report
The Custom Report is the only report of the four that is defined by the
operator. Any display under the other three reports can be added to the
Custom Report by pressing the plus
the display. A maximum of 20 entries can be contained under the Custom
Report. Items can be deleted from the Custom Report by pressing the minus
key when the desired read-out is on the display. The operator must be in
the Custom Report menu to delete the desired item.
The Chiller Report, Refrigerant Report and Compressor Report are informa-
tional reports that give current status. Each report and its contents are
discussed in detail on the following pages.
When any of the four report keys are pressed, the first readout on the display
will be the header. The header identifies the title of the report and summa-
rizes the items in the report.
The Next key and Previous key allow the operator to scroll up and down
through the display items listed under the report displays. When the last item
of a report is displayed and the Next key is pressed, the display will wrap
key while the desired read-out is on
