RESTRICTIONS:
•
Total distance between components should not exceed 200 ft. (actual) or 300 ft. (equivalent).
•
Elevation difference greater than 100 ft. (actual) will result in at least a 2% efficiency decrease.

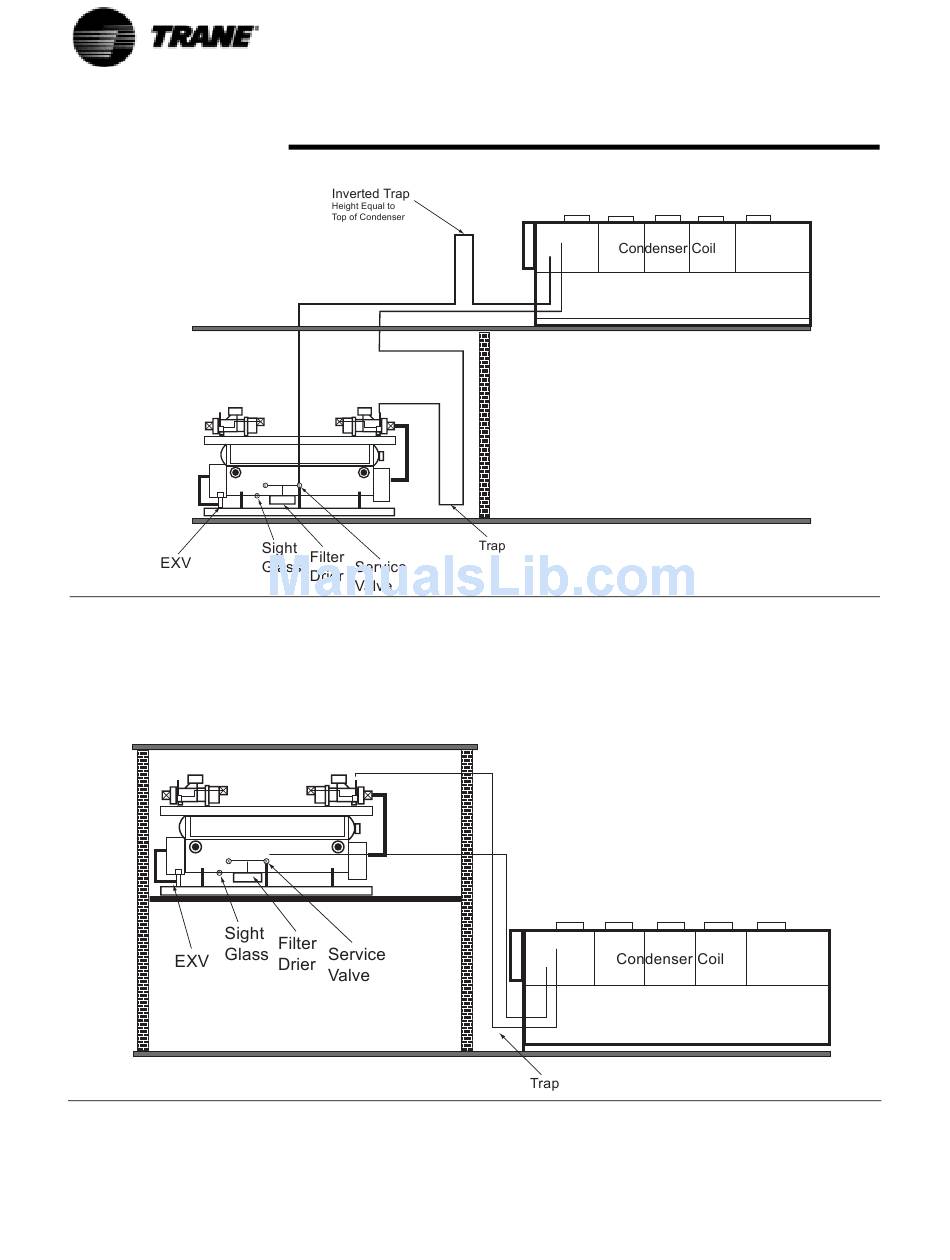

Figure 24
Condenser Above the Compressor /Chiller
RESTRICTIONS:
•
Total distance between components should not exceed 200 ft. (actual) or 300 ft. (equivalent).
•
Liquid line riser(s) must not exceed 15 ft. from base of air cooled condenser.
Figure 25
Condenser Below Compressor/ Chiller
46
Installation - Remote Condenser
RLC-SVX07A-EN
