Trane R Series Installation Operation & Maintenance page 57

R series rotary liquid chillers water-cooled and condenserless
Hide thumbs Also See for R Series:
Table of Contents

Advertisement

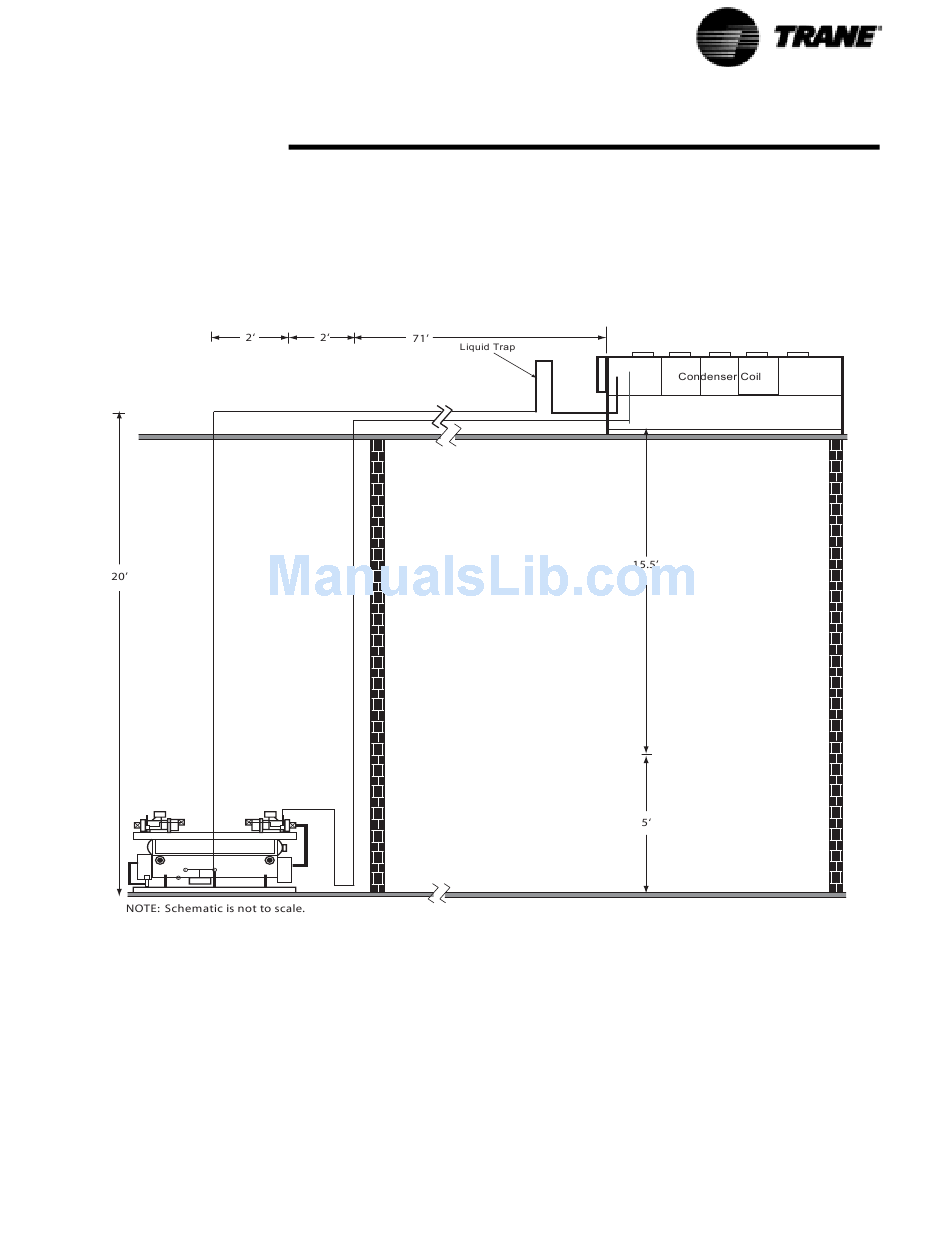

Figure 26
Example Pipe Size Configuration
RLC-SVX07A-EN
Installation - Remote Condenser
New line size for horizontal and downflow lines
remains
(Table
8
HORIZONTAL AND DOWNFLOW LIQUID
LINES ARE
UPFLOW LIQUID LINES ARE
= 1 1/8"
= 1 1/8"
= 1 3/8"
57
