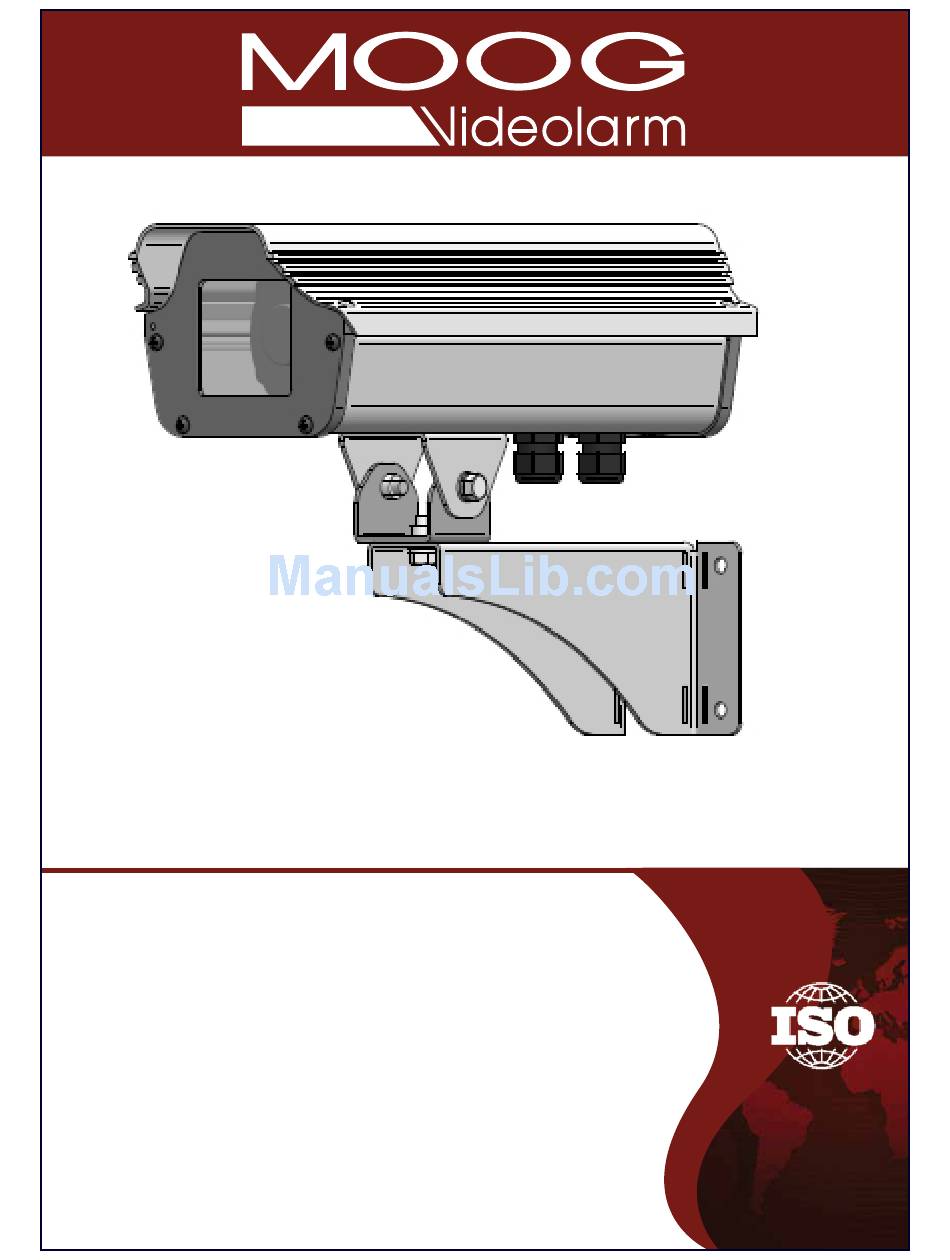

A C H 1 3 H B 8 N
Aluminum Outdoor Environmental Camera Housings
Installation and Operation Instructions for the following models:
ACH13HB8N
Outdoor environmental housing for POE plug enabled IP
fixed cameras, wall/pole mount, dynamic (intelligent)
power allocation heater/blower system, 30W midspan
(100-240VAC input 50/60Hz)
Before attempting to connect or operate this product,
please read these instructions completely.
www.videolarm.com
CERTIFIED
81-IN5455
05-28-2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACH13HB8N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moog Videolarm ACH13HB8N

  • Page 1 A C H 1 3 H B 8 N Aluminum Outdoor Environmental Camera Housings www.videolarm.com Installation and Operation Instructions for the following models: ACH13HB8N Outdoor environmental housing for POE plug enabled IP fixed cameras, wall/pole mount, dynamic (intelligent) power allocation heater/blower system, 30W midspan...
  • Page 2 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings.
  • Page 3 LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defects in material or workmanship,as follows: PRODUCTCATEGORY PARTS LABOR All Enclosures and Electronics Five (5) Years Five (5) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Three (3) Years **6 months if used in autoscan /tour operation /tour operation...
  • Page 4: Electrical Specifications

    Electrical Specifications Unpacking the Product ACH13WM8N ACH13HB8N Midspan Input Power: 100 to 240VAC Power: .8A Frequency: 50 to 60 HZ Output English Camera: POE (55VDC) Heater: 55VDC (max. 20W) Energía de entrada: 100 a 240VAC: Energía: .8A Frecuencia: 50 a 60 hertzios Salida: Español...
  • Page 5 Attach the bracket to the wall and secure Connect housing to wall bracket appropriately. Conecte la cubierta con el soporte de pared Una el soporte a la pared y asegúrelo apropia- • • damente. Reliez le logement à la parenthèse de mur •...
  • Page 6 Sled Screw Camera Sled Place camera on sled and align mounting holes on each. Adjust camera parallel to sled and tighten the Plug in RJ45 input and output cables bolt on the bottom. • Coloque la cámara fotográfica en el trineo y alinee los agujeros de •...
  • Page 7 Reset To maximize power for heater hold reset 1 sec. then release. “HEAT” LED TURNS OFF. • Para maximizar la energía para el calentador celebre el reajuste 1 sec. entonces lance. “CALIENTE” EL LED APAGA. • Pour maximiser la puissance pour le réchauffeur tenez la remise pendant 1 sec. libérez alors. « CHAUFFEZ » LA LED S'ÉTEINT. •...
  • Page 8 If desired, use the security screws in place of hex Close the top cover and tighten to the base with the screws. hex screws. • Cierre la cubierta superior y apriete a la base con los tornillos • Si está deseado, utilice los tornillos de la seguridad en lugar de de la tuerca hexagonal.
  • Page 9 Replacement Parts List Part Number Description RPACH010 ACH13 Front Endcap Assembly ACH13HB8N RPACH020 ACH13 Lid Screws RPHACH8N Heater for POE housing RPACH050 12V Heater & Thermostat Kit For ACH13 RPACH060 ACH13 Top Extrusion RPACH070 ACH13 Bottom Extrusion RPBACH8N Blower for POE housing...
  • Page 10: Product Registration/Warranty

    Product Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second-to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators.
