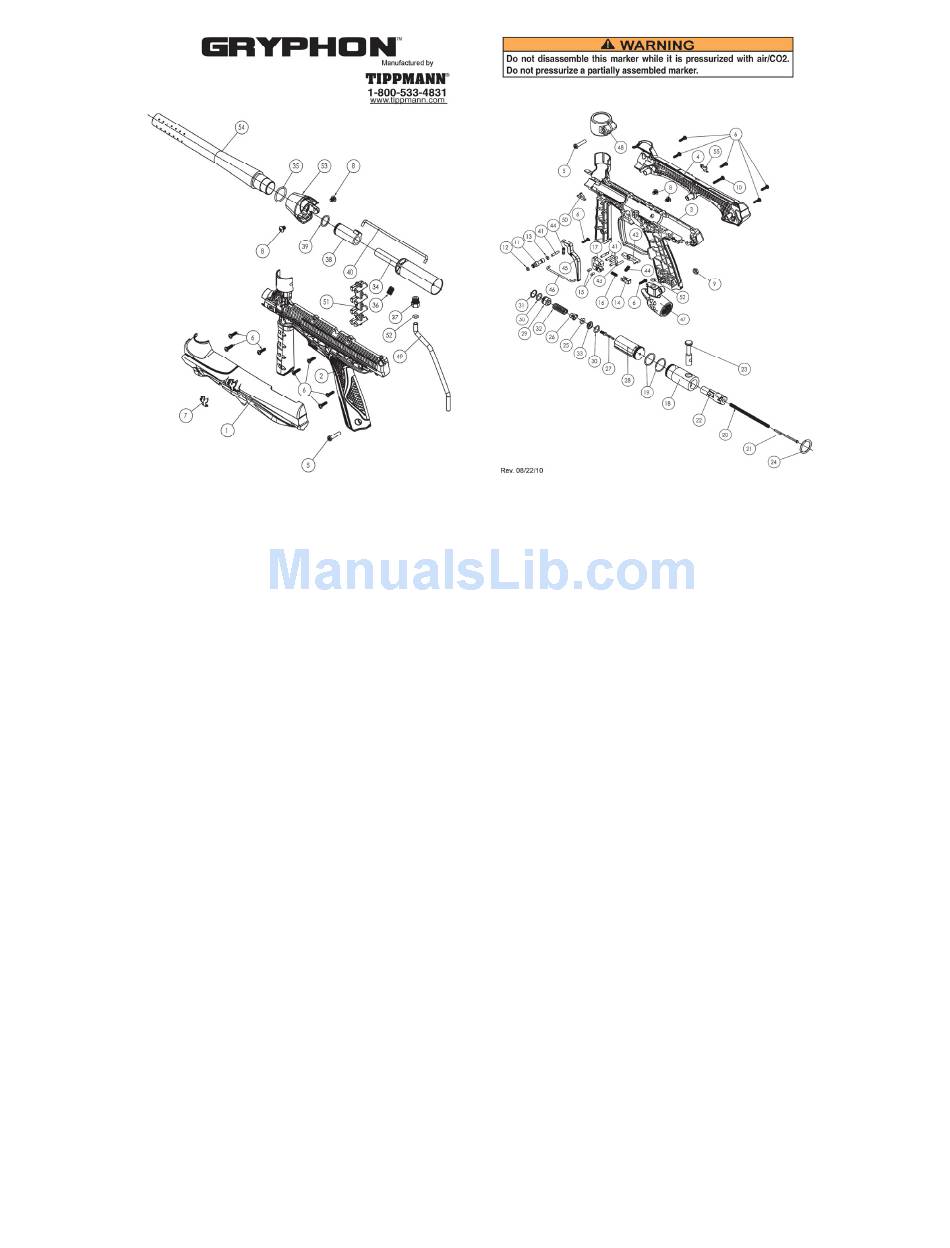

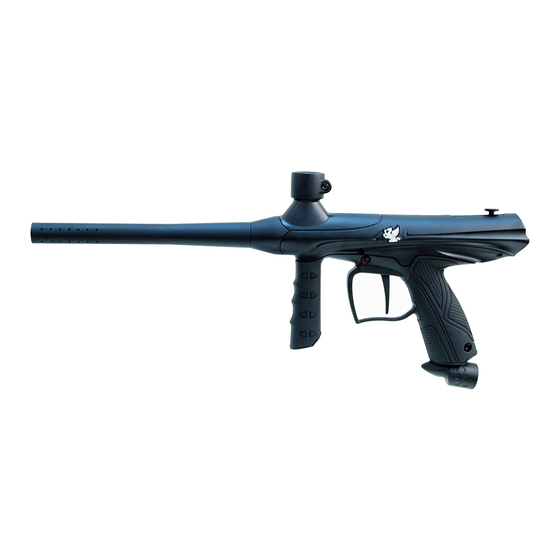

Tippmann GRYPHON Parts List

ITEM QTY. PT. NO. DESCRIPTION
1 TA40003 1 Cover, Left
2 TA40001 1 Receiver, Left
3 TA40002 1 Receiver, Right
4 TA40004 1 Cover, Right
5 TA06015 2 Screw, 10-32 x 0.840" LHSHCS
6 TA09920 14 Screw, #6 x 12.5mm phillips head self-tap
7 TA40019 1 Logo/Nameplate, Left
8 98-26 4 Screw, 10-32 x .25" BHCS
9 9-PA 1 Nut, 10-32 Hex - Black
10 TA40020 1 Screw, #6 x 21mm phillips head self-tap
11 98-37N 1 Safety Pin
12 98-55 1 O-ring, Red
13 FA-07 1 O-ring, Black
14 98-18 1 Trigger Return slide
15 98-19 2 Dowel Pin, 1/8 x 1/4
16 98-20 1 Spring
17 TA40011 1 Trigger Adapter (Complete Assembly: items #14, 16, and 17)
18 TA40015 1 Rear Bolt
19 98-12A 2 O-ring
20 CA-14 1 Spring
21 CA-15 1 Guide Pin
22 TA05005 1 Rear Bolt Plug
23 TA40014 1 Rear Bolt Handle
24 98-57 1 O-ring
25 PA-28 1 Valve Stem Cup Seal
26 CA-29 1 Valve Stem Cup
27 CA-30N 1 Valve Plunger
28 98-25N 1 Valve Body
Gryphon Parts List
ITEM QTY. PT. NO. DESCRIPTION
29 98-56 1 Valve Plug
30 SL2-25 2 O-ring
31 PA-31A 1 Snap Ring
32 98-32 1 Spring
33 CA-27 1 Valve Seat
34 98-21N 1 Power Tube
35 02-40 1 O-ring, Barrel
36 02-22 1 Set Screw, 5/16-24 x 7/16
37 TA40018 1 Gas Line Joint (1/8 NPT Plug Nut
38 02-17 1 Front Bolt
39 SL2-4 1 O-ring
40 TA01016 1 Linkage Arm
41 98-33 5 Dowel Pin, 1/8 x 5/8
42 02-35 1 Sear
43 CA-36 1 Dowel Pin, 1/8 x 5/8 - Black
44 TA40013 2 Spring
45 TA40009 1 Trigger
46 TA10010 1 Trigger Link
47 TA40008 1 Air Supply Adapter (ASA)
48 TA40007 1 Feed Elbow Clamp Ring
49 TA40016 1 Gas Line
50 FA-18 1 Ball Latch
51 TA40005 1 Front Grip Inset Panel
52 TA40017 2 O-ring, Gas Line
53 TA40006 1 Barrel Adapter
54 TA40012 1 Barrel
55 TA40021 1 Logo/Nameplate Right
