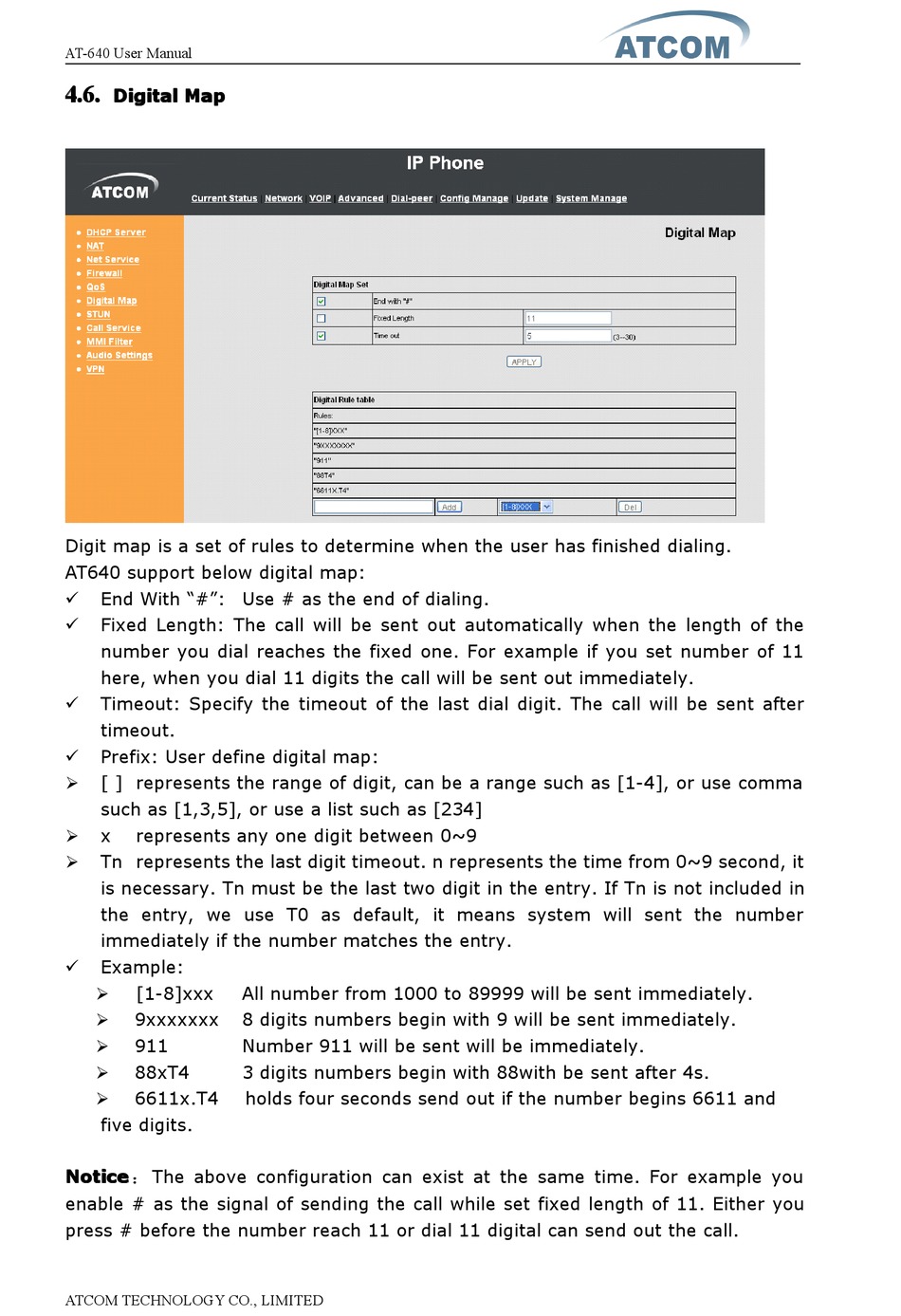

Digital Map

Map Map Map
Digit map is a set of rules to determine when the user has finished dialing.
AT640 support below digital map:
� End With "#": Use # as the end of dialing.
� Fixed Length: The call will be sent out automatically when the length of the
number you dial reaches the fixed one. For example if you set number of 11
here, when you dial 11 digits the call will be sent out immediately.
�
Timeout: Specify the timeout of the last dial digit. The call will be sent after
timeout.
� Prefix: User define digital map:
�
[ ] represents the range of digit, can be a range such as [1-4], or use comma
such as [1,3,5], or use a list such as [234]
� x represents any one digit between 0~9
�
Tn represents the last digit timeout. n represents the time from 0~9 second, it
is necessary. Tn must be the last two digit in the entry. If Tn is not included in
the entry, we use T0 as default, it means system will sent the number
immediately if the number matches the entry.
� Example:
� [1-8]xxx
�
9xxxxxxx
� 911
� 88xT4
�
6611x.T4
five digits.
Notice ： The above configuration can exist at the same time. For example you
Notice Notice
Notice
enable # as the signal of sending the call while set fixed length of 11. Either you
press # before the number reach 11 or dial 11 digital can send out the call.
ATCOM TECHNOLOGY CO., LIMITED
All number from 1000 to 89999 will be sent immediately.
8 digits numbers begin with 9 will be sent immediately.
Number 911 will be sent will be immediately.
3 digits numbers begin with 88with be sent after 4s.
holds four seconds send out if the number begins 6611 and
