AT-640 User Manual
also update downloaded update file, logo picture, ring, mmiset file by web.
7.2. 7.2. 7.2. 7.2.

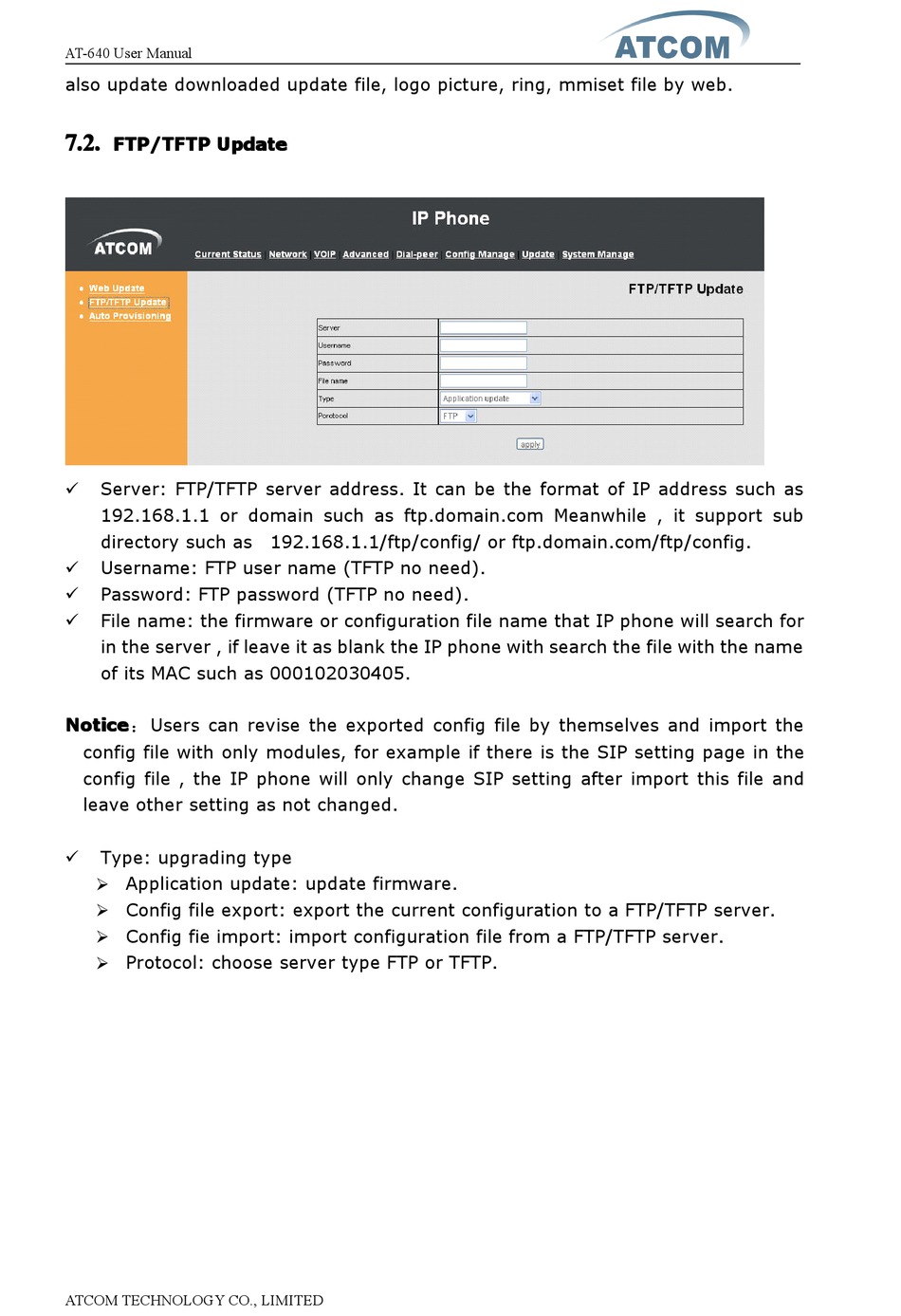

FTP/TFTP Update
FTP/TFTP FTP/TFTP

FTP/TFTP Update

Update Update
� Server: FTP/TFTP server address. It can be the format of IP address such as
192.168.1.1 or domain such as ftp.domain.com Meanwhile , it support sub
directory such as 192.168.1.1/ftp/config/ or ftp.domain.com/ftp/config.
� Username: FTP user name (TFTP no need).
� Password: FTP password (TFTP no need).
� File name: the firmware or configuration file name that IP phone will search for
in the server , if leave it as blank the IP phone with search the file with the name
of its MAC such as 000102030405.
Notice
Notice Notice Notice： Users can revise the exported config file by themselves and import the
config file with only modules, for example if there is the SIP setting page in the
config file , the IP phone will only change SIP setting after import this file and
leave other setting as not changed.
� Type: upgrading type
� Application update: update firmware.
� Config file export: export the current configuration to a FTP/TFTP server.
� Config fie import: import configuration file from a FTP/TFTP server.
� Protocol: choose server type FTP or TFTP.
