Multi Line Set; Function Key Set - ATCOM AT-640 User Manual

AT-640 User Manual
Multi line function is one of SIP line is busying, but other lines can get the call when
have new calls with the line.
The settings as below:
1, go to System Manage Multi Line set page,
2, set the F1/F2/F3/F4 to Multiple line and set the
SIP1:8047 or SIP2:8047 or IAX2:6008
The flow as below:
1,A call AT640 as 8047 and calling.
2,B call AT640 as 8047
3,LED of Line 2 is flicker
4,press Line2 or answer of softkey can call from B.
The one of 4 lines can also be configured as IAX2 line
1.Choose line (for example line2) ,set F2 to Line
2.Set SIP2:name as IAX2:name
8.4. 8.4.
8.4. 8.4.

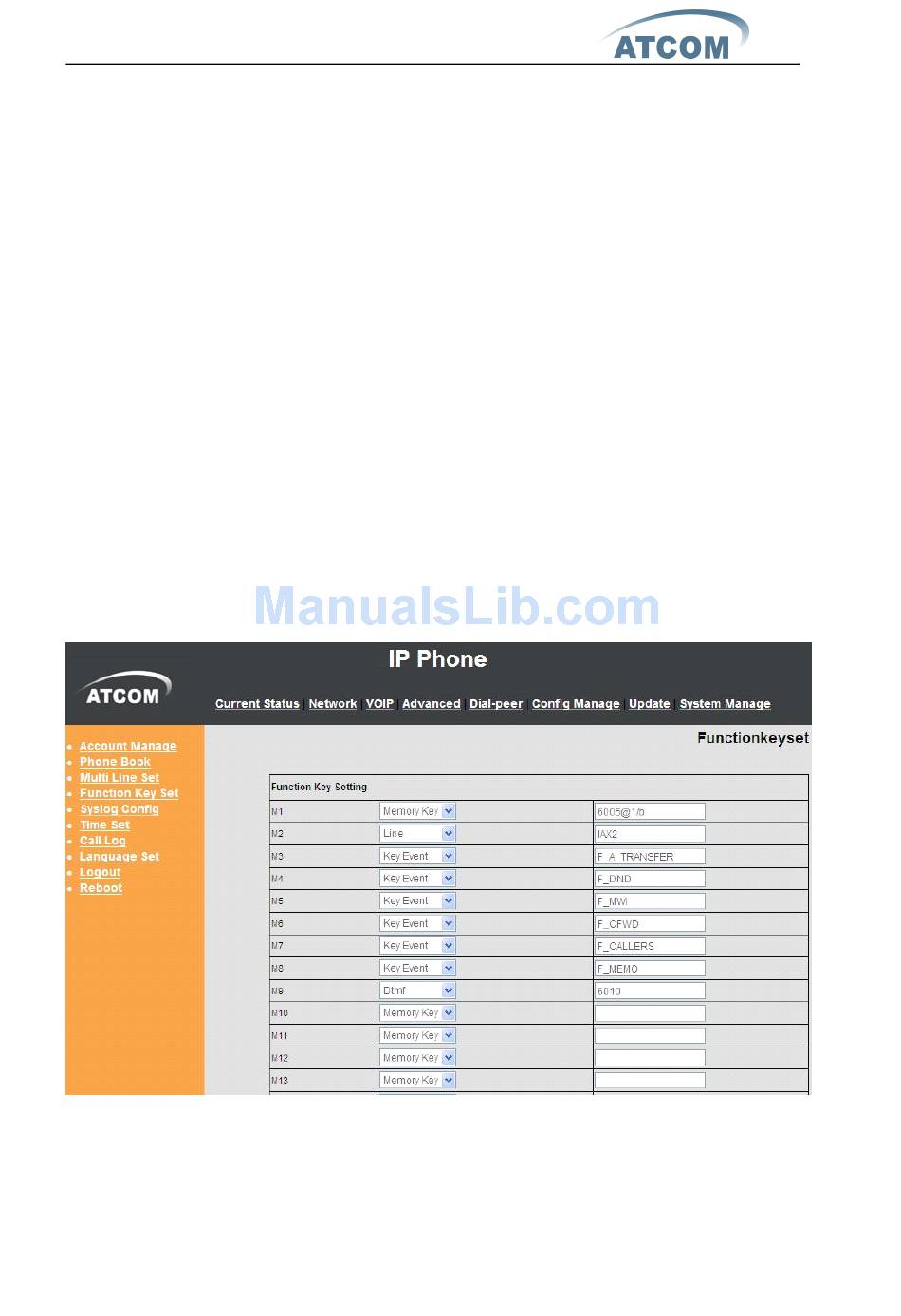

Function Function Function Function Key Key Set Key Key
There are 9 function key on the phone, and be expanded to 29 with expander
board.There are 5 types of the key:
1.NONE: do not use this key
ATCOM TECHNOLOGY CO., LIMITED
Set Set Set
same SIP:name, such as
