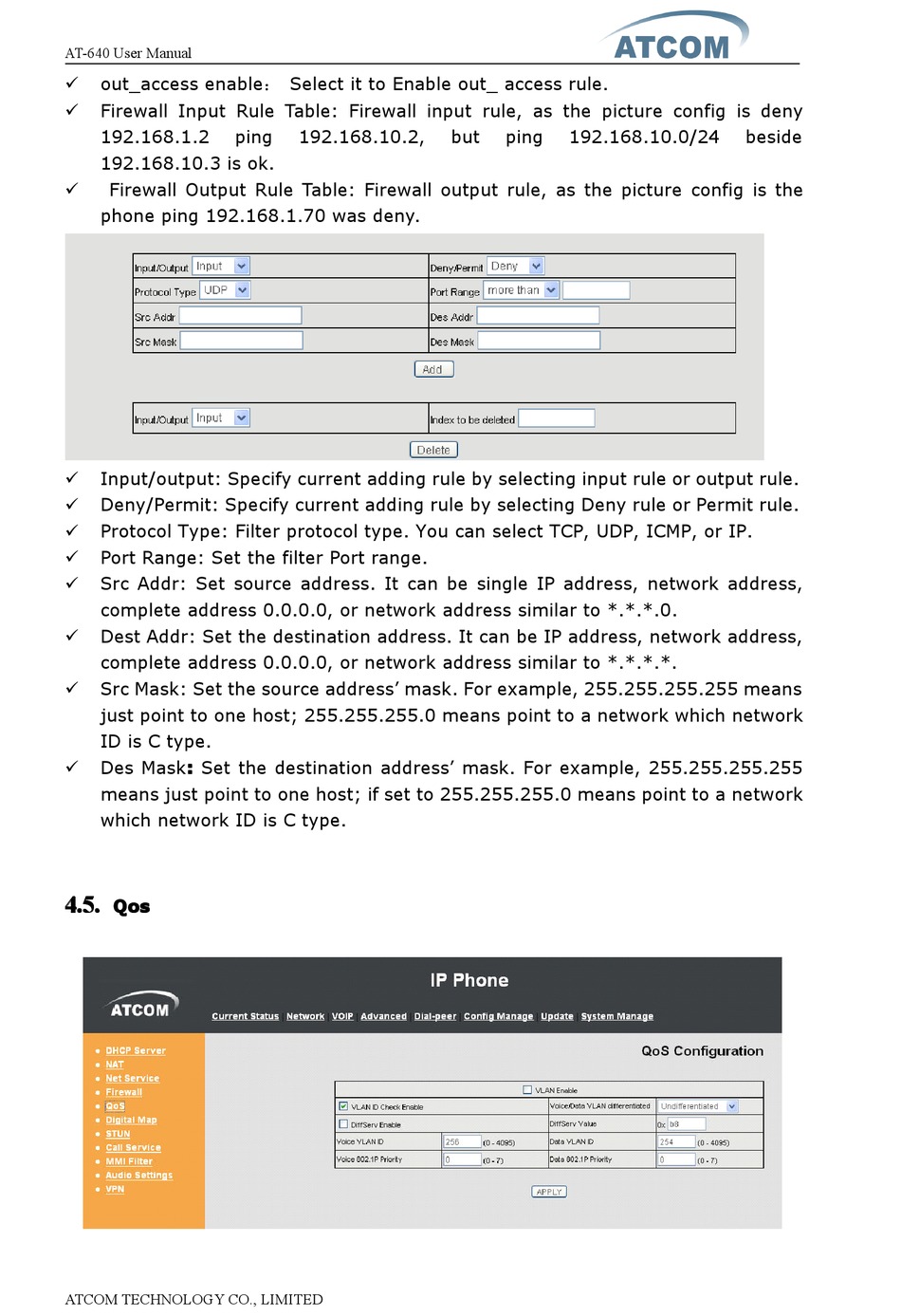

� out_access enable： Select it to Enable out_ access rule.
� Firewall Input Rule Table: Firewall input rule, as the picture config is deny
192.168.1.2 ping
192.168.10.3 is ok.
� Firewall Output Rule Table: Firewall output rule, as the picture config is the
phone ping 192.168.1.70 was deny.
� Input/output: Specify current adding rule by selecting input rule or output rule.
� Deny/Permit: Specify current adding rule by selecting Deny rule or Permit rule.
� Protocol Type: Filter protocol type. You can select TCP, UDP, ICMP, or IP.
� Port Range: Set the filter Port range.
� Src Addr: Set source address. It can be single IP address, network address,
complete address 0.0.0.0, or network address similar to *.*.*.0.
� Dest Addr: Set the destination address. It can be IP address, network address,
complete address 0.0.0.0, or network address similar to *.*.*.*.
� Src Mask: Set the source address' mask. For example, 255.255.255.255 means
just point to one host; 255.255.255.0 means point to a network which network
ID is C type.
� Des Mask: : : : Set the destination address' mask. For example, 255.255.255.255
means just point to one host; if set to 255.255.255.0 means point to a network
which network ID is C type.
