AT-620 User Manual
then the packet of the signal and voice will use the voice VLAN ID as the tag, but
the data packets will not take the VLAN tag.
5,if disable the VLAN, regardless to set the voice and data VLAN differentiated or
not, all packets will not take the VLAN tag; if enable the DiffServ, all packets will
only take the DiffServ value.
6) One must to notice, enable the VLAN ID check enable that is default, if enable
Must to notice, VLAN ID check Enable feature is default enable, if enable it,
The phone will match the VLAN ID strictly, When others' VLAN ID mismatch
with IP Phone, the packets will discard, Contrarily, the phone will accept the
packets with the distinct VLAN ID.
You must set the IP with static mode when you set VLAN, otherwise can't
obtain the IP in the VLAN and also cannot dial with point to point

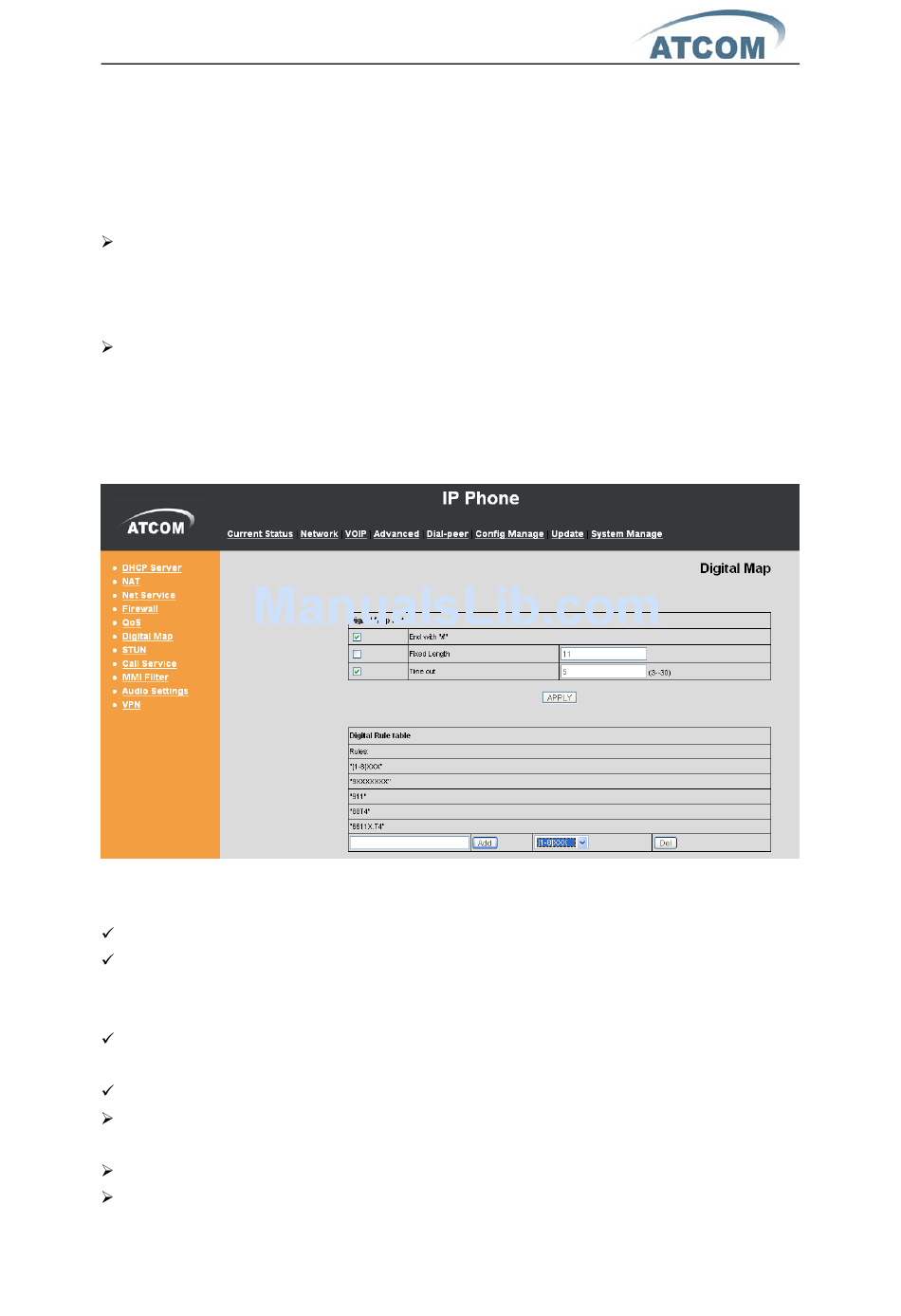

Digital Map

4.6.
Digit map is a set of rules to determine when the user has finished dialing.
AT620 support below digital map:
End With "#": Use # as the end of dialing.
Fixed Length: The call will be sent out automatically when the length of the
number you dial reaches the fixed one. For example if you set number of 11
here, when you dial 11 digits the call will be sent out immediately.
Timeout: Specify the timeout of the last dial digit. The call will be sent after
timeout.
Prefix: User define digital map:
[ ] represents the range of digit, can be a range such as [1-4], or use
comma such as [1,3,5], or use a list such as [234]
x represents any one digit between 0~9
Tn represents the last digit timeout. n represents the time from 0~9
second, it is necessary. Tn must be the last two digit in the entry. If Tn is not
