Transparent mode configuration examples
66

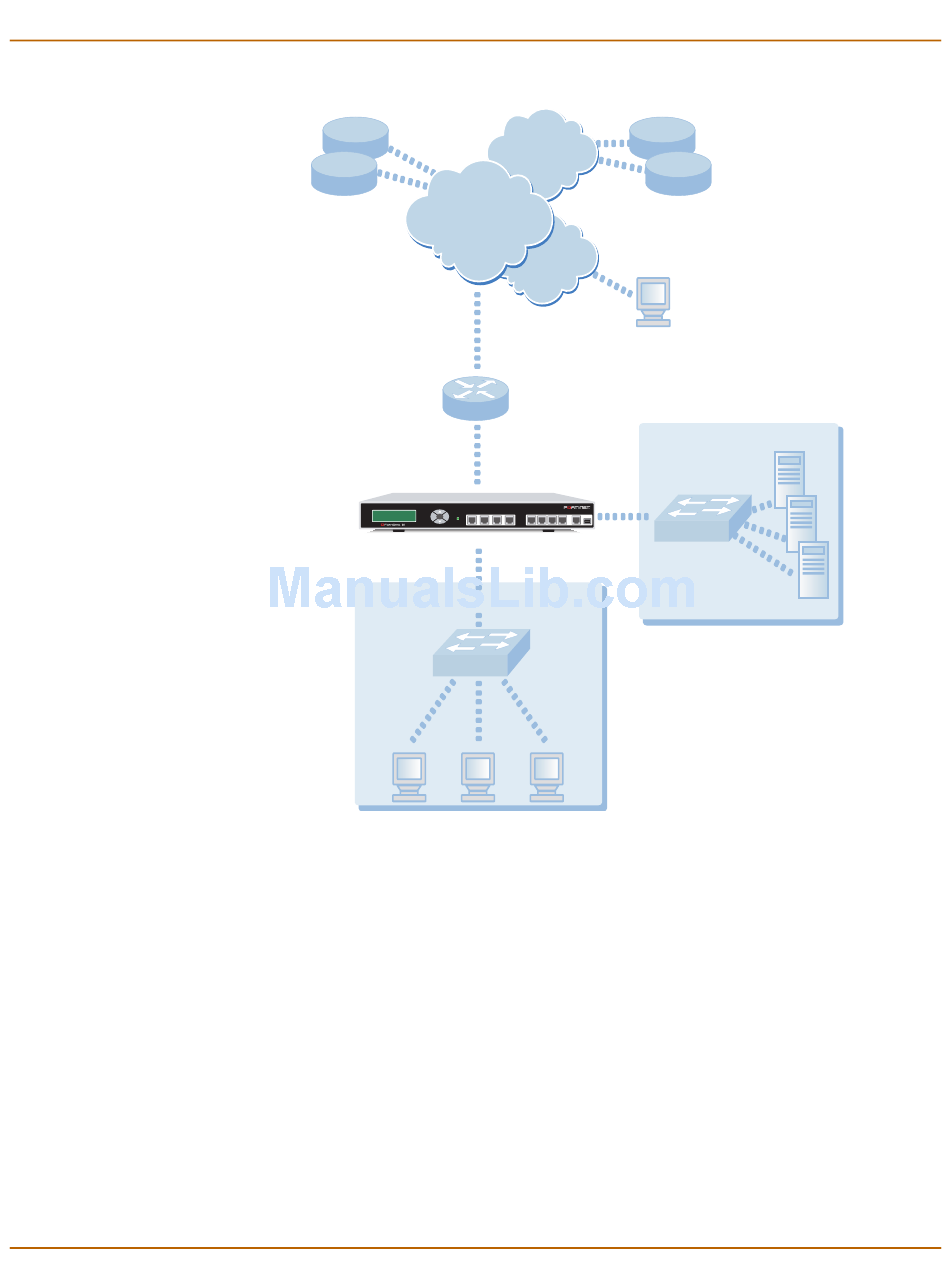

Figure 11: Default route to an external network
DNS
Gateway IP 192.168.1.2
Management IP 192.168.1.1
FortiGate-800

General configuration steps

1 Set the FortiGate unit to operate in Transparent mode.
2 Configure the Management IP address and Netmask of the FortiGate unit.
3 Configure the default route to the external network.
