Package contents

Package contents

Mounting

26
The FortiGate-800 package contains the following items:
• FortiGate-800 Antivirus Firewall
• one orange crossover ethernet cable
• one grey regular ethernet cable
• one RJ-45 serial cable
• one RJ-45 to DB-9 convertor
• one power cable
• two 19-inch rack mount brackets
• FortiGate-800 QuickStart Guide
• CD containing Fortinet user documentation

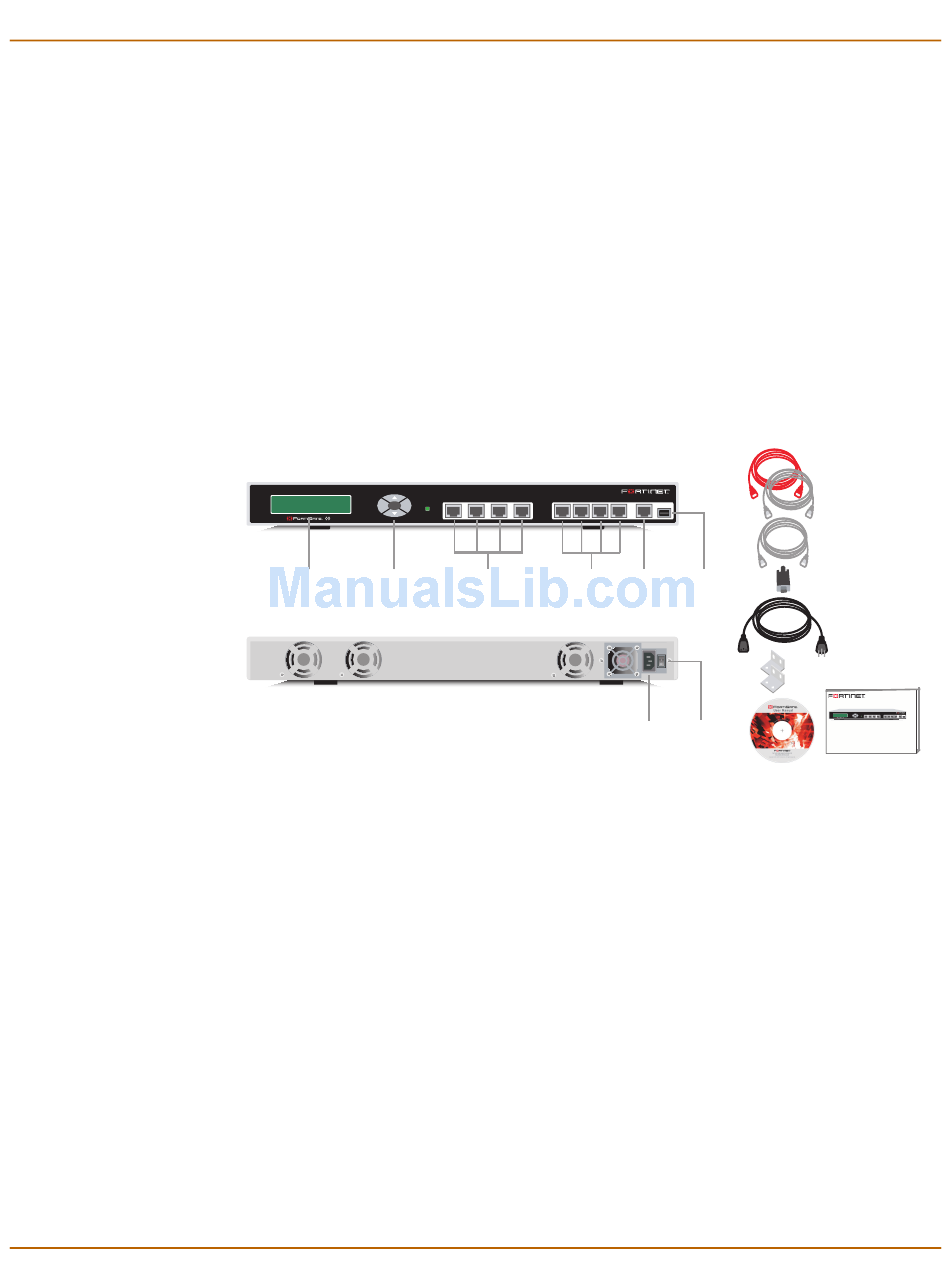

Figure 2: FortiGate-800 package contents
Esc Enter
8
LCD Control
Buttons
The FortiGate-800 unit can be mounted in a standard 19-inch rack. It requires 1 U of
vertical space in the rack.
The FortiGate-800 unit can also be installed as a free-standing appliance on any
stable surface. For free-standing installation, make sure that the appliance has at least
1.5 in. (3.75 cm) of clearance on each side to allow for adequate air flow and cooling.
Dimensions
• 16.75 x 12 x 1.75 in. (42.7 x 30.5 x 4.5 cm)
Weight
• 10 lb. (4.5 kg)
Front
I N T E R N A L E X T E R N A L D M Z HA 1 2 3
P W R
Internal,External,DMZ 1 to 4
HA Interface Interface
Back
4 CONSOLE USB
Serial USB
Port (future)
USER MANUAL
Power Power
Connection Switch
Getting started
Ethernet Cables:
Orange - Crossover
Grey - Straight-through
RJ-45 Serial Cable
RJ-45 to DB-9 Convertor
Power Cable
Rack-Mount Brackets
FortiGate-800
I N T E R N A L E X T E R N A L D M Z HA 1 2 3 4 CONSOLE USB
Esc Enter P W R
8
QuickStart Guide
