Introducing the CyberPro PCI 2S

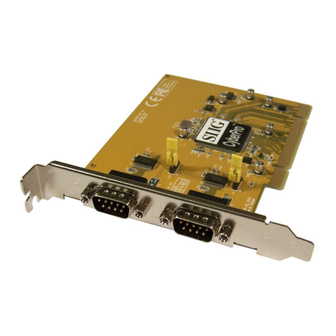

The CyberPro PCI 2S high-speed serial I/O card provides
two additional 9-pin serial ports.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Reduces CPU load and improves system
performance dramatically
•
IRQ sharing feature reduces IRQ conflicts
•
High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•
Built-in FIFO buffers dramatically increase data
transmit/receive speed, especially under Windows'
multitasking environment
•
Each serial port can be configured for either 5V or
12V output, for serial devices that require power
System Requirements
•
Pentium or equivalent computer with an available
PCI slot
•
Windows
/64-bit)/Server 2003 (32-/64-bit)/Vista (32-/64-bit)
04-0341C
CyberPro PCI 2S

Quick Installation Guide

®
95/98/98SE/ME/NT 4.0/2000/XP (32-
1

Advertisement

Table of Contents
loading

Related Manuals for SIIG CyberPro PCI 2S

Summary of Contents for SIIG CyberPro PCI 2S

  • Page 1: Quick Installation Guide

    CyberPro PCI 2S Quick Installation Guide Introducing the CyberPro PCI 2S The CyberPro PCI 2S high-speed serial I/O card provides two additional 9-pin serial ports. Features and Benefits • Conforms to PCI v2.2 Plug and Play • Full support for Windows-based software •...

  • Page 2: Package Contents

    Package Contents • CyberPro PCI 2S board • Driver CD • Quick installation guide Layout JP2 (Serial port 2) Serial Port 2 Serial Port 1 JP1 (Serial port 1) Figure 1. Layout Jumper Settings (JP1, JP2) Open = 0 volts (default)

  • Page 3: Hardware Installation

    Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds.

  • Page 4: Driver Installation

    Driver Installation This section provides information on how to install the CyberPro PCI 2S drivers. Windows 95 At the Update Device Driver Wizard, click Next. Insert the driver CD, and click Other Locations. Type in D:\9x, click OK, then Finish. (Change D: to match your CD-ROM drive letter) From the Insert Disk window, click OK.
  • Page 5 From the main desktop, double click My Computer, Control Panel, System, then click Device Manager. Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed two times. Double click Multi-function adapters, SIIG CyberPro 2S PCI board and PCI Function should be displayed. Windows NT 4.0 From the desktop click Start, then Run.
  • Page 6 To Verify Windows NT 4.0 Installation Click Start, Settings, Control Panel, double click Ports device icon. Two new COM ports will be assigned when successfully installed. Windows 2000 At the Found New Hardware Wizard, click Next. Select Search for a suitable driver for my device (recommended), and click Next.
  • Page 7 Device Manager. Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed two times. Double click Multifunction adapters, SIIG CyberPro 2S PCI board should be displayed. Windows Vista ™ At the Found New Hardware window, insert the driver CD, click Locate and install driver software (recommended), then click Continue.
  • Page 8 Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial 16Cxxx... should be displayed two times. Double click Multifunction adapters, SIIG CyberPro 2S PCI board should be displayed. Changing COM Port Address Some serial devices need a specific COM port in order to work.
  • Page 9 Blank Page...
  • Page 10 Blank Page...

  • Page 11: Technical Support And Warranty

    Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. SIIG RMA department can also be reached at (510) 413-5333.
  • Page 12 6078 Stewart Avenue Fremont, CA 94538-3152, USA CyberPro PCI 2S is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Other names used in this publication are for identification only and may be trademarks of their respective companies.
