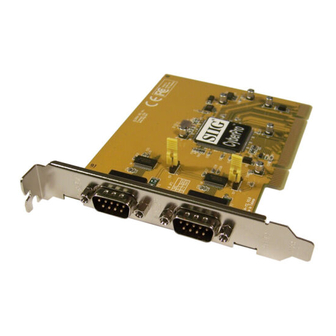

Introducing the CyberPro PCI 2S
The CyberPro PCI 2S high-speed serial I/O card provides
two additional 9-pin serial ports.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Reduces CPU load and improves system
performance dramatically
•
IRQ sharing feature reduces IRQ conflicts
•
High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•
Built-in FIFO buffers dramatically increase data
transmit/receive speed, especially under Windows'
multitasking environment
•
Each serial port can be configured for either 5V or
12V output, for serial devices that require power
System Requirements
•
Pentium
PCI slot
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
/ NT 4.0 / ME / 98SE / 98 / 95
04-0341D
CyberPro PCI 2S

Quick Installation Guide

or equivalent computer with an available
®
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
1

Advertisement

Table of Contents
loading

Related Manuals for SIIG CyberPro PCI 2S

Summary of Contents for SIIG CyberPro PCI 2S

  • Page 1: Quick Installation Guide

    CyberPro PCI 2S Quick Installation Guide Introducing the CyberPro PCI 2S The CyberPro PCI 2S high-speed serial I/O card provides two additional 9-pin serial ports. Features and Benefits • Conforms to PCI v2.2 Plug and Play • Full support for Windows-based software •...

  • Page 2: Package Contents

    Package Contents • CyberPro PCI 2S board • Driver CD • Quick installation guide Layout JP2 (Serial port 2) Serial Port 2 JP1 (Serial port 1) Serial Port 1 Figure 1. Layout Jumper Settings (JP1, JP2) Open = 0 volts (default) Short 1-2 = 5V Short 2-3 = 12V Note: Most serial devices do not require additional...

  • Page 3: Hardware Installation

    Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system. Discharge any static electricity build up in your body by touching your computer’s case for a few seconds.

  • Page 4: Driver Installation

    Driver Installation This section provides information on how to install the CyberPro PCI 2S drivers. Windows 7 (32-/64-bit) Right click Computer, click Manage, click Device Manager. Insert the driver CD. Right click PCI Serial Port, click Update Driver Software. Click Browse my computer for driver software. Type D:, then click Next.
  • Page 5 Repeat step 2 to complete the driver installation. Note: Windows Vista driver installation process may take several minutes to complete. Windows XP (32-/64-bit) / Server 2003 (32-/64-bit) At the Found New Hardware Wizard, insert the driver CD. Select No, not this time, click Next. (Skip this step if not prompted) Select Install the software automatically (Recommended), then click Next.
  • Page 6 Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial 16Cxxx... should be displayed two times. Double click Multifunction adapters, SIIG CyberPro 2S board should be displayed. Windows 2000 At the Found New Hardware Wizard, click Next.
  • Page 7 Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial 16Cxxx... should be displayed two times. Double click Multifunction adapters, SIIG CyberPro 2S board should be displayed. Windows ME At the Add New Hardware Wizard, select Specify the location of the driver (Advanced), then click Next.
  • Page 8 Right click My Computer, click Properties, then click Device Manager. Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed two times. Double click Multi-function adapters, SIIG CyberPro 2S... and PCI Function should be displayed. Windows NT 4.0 From the desktop click Start, then Run.
  • Page 9 Click Yes, then click Exit. Restart Windows to complete the installation. To Verify Windows NT 4.0 Installation Click Start, Settings, Control Panel. Double click Ports device icon. Two new COM ports will be assigned when successfully installed.
  • Page 10 Changing COM Port Address Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. Windows 7 / Vista / XP / Server 2003 & 2008 / 2000 From the Device Manager window double click Ports (COM &...

  • Page 11: Technical Support And Warranty

    Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product.
  • Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 CyberPro PCI 2S is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Pentium is a registered trademark of Intel Corporation.
