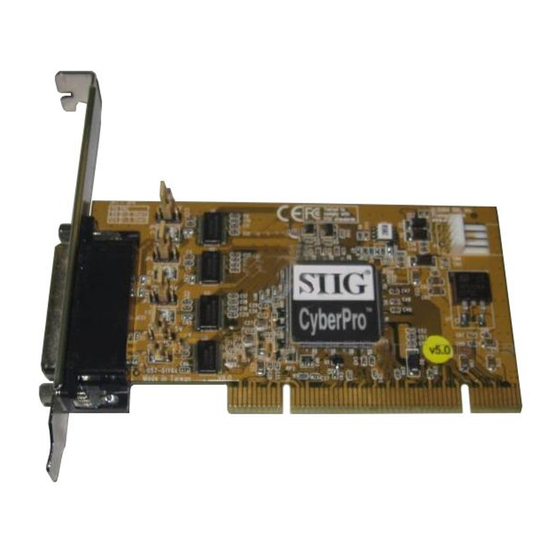

Introducing the CyberPro PCI 4S
The CyberPro PCI 4S high-speed serial I/O card provides
four additional 9-pin serial ports. Depending on the
model purchased, this board will fit into either a Full or
Low Profile chassis.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Reduces CPU load and improves system
performance dramatically
•
IRQ sharing feature reduces IRQ conflicts
•
High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•
Built-in FIFO buffers dramatically increase data
transmit/receive speed, especially under Windows'
multitasking environment
•
Each serial port can be configured for either 5V or
12V output, for serial devices that require power
System Requirements
•
Pentium
PCI slot
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
/ NT 4.0 / ME / 98SE / 98 / 95
04-0343D
CyberPro PCI 4S

Quick Installation Guide

or equivalent computer with an available
®
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
1

Advertisement

loading

Related Manuals for SIIG CyberPro PCI 4S

Summary of Contents for SIIG CyberPro PCI 4S

  • Page 1: Quick Installation Guide

    CyberPro PCI 4S Quick Installation Guide Introducing the CyberPro PCI 4S The CyberPro PCI 4S high-speed serial I/O card provides four additional 9-pin serial ports. Depending on the model purchased, this board will fit into either a Full or Low Profile chassis.
  • Page 2 Package Contents • CyberPro PCI 4S board • 4-port fan-out cable • Low profile bracket (Dual Profile board only) • Driver CD • Quick installation guide Layout Full profile bracket (S1) (S2) 4-pin power connector (optional)* 44-pin connector (S4) (S3) Figure 1.

  • Page 3: Hardware Installation

    Fan-out Cable Serial ports DB9 (9-pin) 44-pin connector Figure 2. Fan-out cable Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system.

  • Page 4: Driver Installation

    44-pin connector. For more information, see Figure 2 on page 3. Driver Installation This section provides information on how to install the CyberPro PCI 4S drivers. Windows 7 (32-/64-bit) Install the board and boot up Windows. At the desktop, right click Computer, click Manage, click Device Manager.
  • Page 5 Right click Other PCI Bridge Device, click Update Driver Software. Repeat steps 4-6. Right click CyberSerial Communication Port, click Update Driver Software. 10. Click Browse my computer for driver software. 11. Type D:, click Next. (Change D: to match your CD/ DVD-ROM drive letter) 12.
  • Page 6 Repeat steps 3-5 two more times. Restart Windows to complete the installation. Windows Server 2008 (32-/64-bit) Install the board and boot up Windows. At the Found New Hardware Wizard, click Locate and install driver software (recommended). Insert the driver CD. Click Don't search online.
  • Page 7 Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial 16Cxxx... should be displayed four times. Double click Multifunction adapters, SIIG CyberPro 4S board should be displayed. Windows 2000 Install the board and boot up Windows.
  • Page 8 Windows ME Install the board and boot up Windows. At the Add New Hardware Wizard, select Specify the location of the driver (Advanced), click Next. Insert the driver CD, check Specify a location, uncheck the other box, type in D:\Me, click Next. (Change D: to match your CD/DVD-ROM drive letter) Click Next, Next, and Finish.
  • Page 9 From the main desktop, double click My Computer, Control Panel, System, then click Device Manager. Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed four times. Double click Multi-function adapters, SIIG CyberPro 4S PCI board and PCI Function should be displayed. Windows NT 4.0 Install the board and boot up Windows.
  • Page 10 Changing COM Port Address Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. Windows 7 / Vista / XP / Server 2003 & 2008 / 2000 From the Device Manager window double click Ports (COM &...

  • Page 11: Technical Support And Warranty

    Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product.
  • Page 12 Fremont, CA 94538-3152, USA Phone: 510-657-8688 CyberPro PCI 4S is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Pentium is a registered trademark of Intel Corporation.
