Features and Benefits
•
Compliant with PCI local bus specification 2.2
•
Compliant with PC card standard release 8.0
specification
•
Supports CardBus (Card-32) and 16-bit (PCMCIA
2.1/JEIDA 4.2) card
•
ACPI and PCI bus power management 1.1 compliant
•
Bridge function between PCI bus and CardBus
•
Supports PCI Master/Target protocol and direct
connection to PCI bus
System Requirements
•
Pentium or equivalent PC with an available PCI slot
•
Windows
•
Windows XP/Server 2003/Vista: supports both 32-
bit PC Card and 16-bit PCMCIA
Package Contents
•

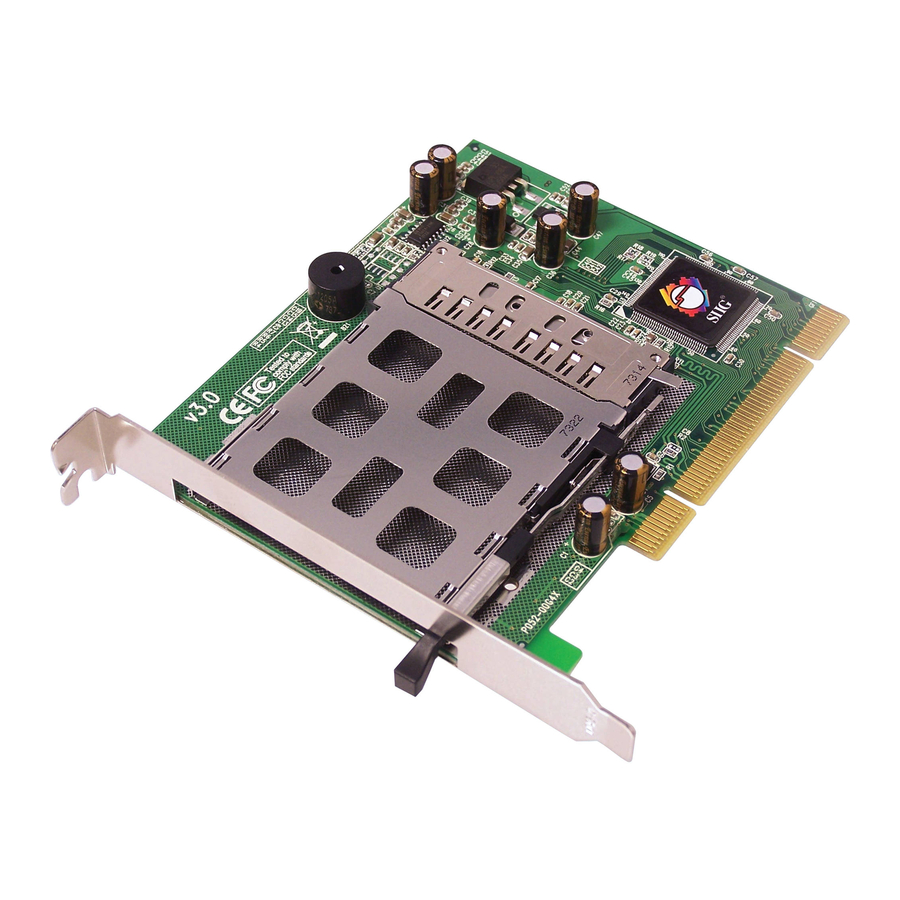

PCI-to-PC Card Pro
•
This quick installation guide
04-0362C
PCI-to-PC Card Pro
Quick Installation Guide
®
98SE/ME/2000: supports 32-bit PC Card
1
Advertisement
Related Manuals for SIIG PCI-to-PC Card Pro
Summary of Contents for SIIG PCI-to-PC Card Pro
-
Page 1: Quick Installation Guide
PCI-to-PC Card Pro Quick Installation Guide Features and Benefits • Compliant with PCI local bus specification 2.2 • Compliant with PC card standard release 8.0 specification • Supports CardBus (Card-32) and 16-bit (PCMCIA 2.1/JEIDA 4.2) card • ACPI and PCI bus power management 1.1 compliant •... -
Page 2: Hardware Installation
Layout Ejector lever Figure 1. Layout Note: The ejector lever can be placed in two positions, locked and unlocked. When inserting a PC Card, the lever can be in either position. However, the lever must be in the unlocked position to eject a PC Card. -
Page 3: Driver Installation
Turn OFF the power to your computer. Unplug the power cord and remove your computer's cover. Remove the slot bracket from an available PCI slot. Carefully align the card to the selected PCI slot push the board down firmly, but gently, until it is well seated. - Page 4 To Verify Successful Installation Check Device Manager to verify successful driver installation. Windows 98SE/ME: From the main desktop, right click My Computer, then click Properties. Click Device Manager tab. Windows 2000/XP/Server 2003/Vista: Right click My Computer, click Manage, then click Device Manager.
- Page 5 Inserting/Removing the PC Cards Inserting the PC Card: There's only one way the PC Card can be inserted into the slot. Do not try to force it in if you meet some resistance. In most systems, the PC Card should be inserted with the label facing down towards the bottom of your system.
- Page 6 Blank Page...
-
Page 7: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. SIIG RMA department can also be reached at (510) 413-5333. - Page 8 6078 Stewart Avenue Fremont, CA 94538-3152, USA PCI-to-PC Card Pro is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Other names used in this publication are for identification only and may be trademarks of their respective companies.
