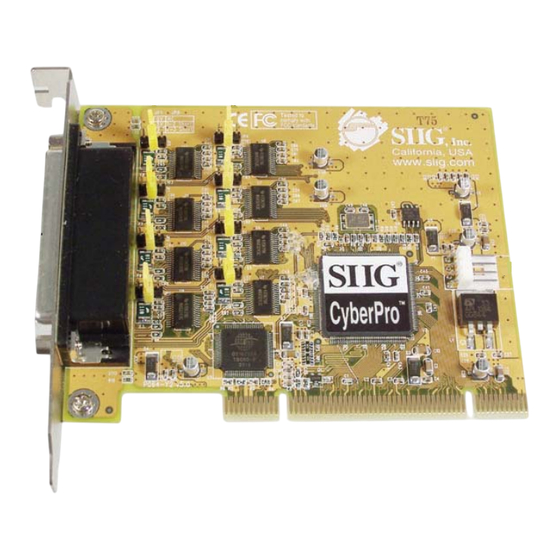

Introducing the CyberPro PCI 8S
The CyberPro PCI 8S high-speed serial I/O card provides
eight additional 9-pin serial ports.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Reduces CPU load and improves system
performance dramatically
•
IRQ sharing feature reduces IRQ conflicts
•
High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•
Built-in FIFO buffers dramatically increase data
transmit/receive speed, especially under Windows'
multitasking environment
•
Each serial port can be configured for either 5v or
12v output, for serial devices that require additional
power
System Requirements
•
Pentium or equivalent computer with an available
PCI slot
•
Windows
/64-bit)/Server 2003 (32-/64-bit)/Vista (32-/64-bit)
04-0387B
CyberPro PCI 8S
Quick Installation Guide
95/98/98SE/ME/NT 4.0/2000/XP (32-
®
1
Advertisement
Related Manuals for SIIG CyberPro PCI 8S
Summary of Contents for SIIG CyberPro PCI 8S
- Page 1 CyberPro PCI 8S Quick Installation Guide Introducing the CyberPro PCI 8S The CyberPro PCI 8S high-speed serial I/O card provides eight additional 9-pin serial ports. Features and Benefits • Conforms to PCI v2.2 Plug and Play • Full support for Windows-based software •...
-
Page 2: Package Contents
Package Contents • CyberPro PCI 8S board • 8-port fan-out cable • Driver CD • Quick Installation Guide Layout JP1-JP4 JP5-JP8 4-pin power connector (optional)* 78-pin connector Figure 1: Layout * Note: Make this connection only when two or more serial ports are configured for 5V/12V output. -
Page 3: Hardware Installation
Note: Most serial devices do not require additional power through the serial port. Refer to your serial device's manual for more information. The jumpers can be removed if the ports do not need power. Fan-out Cable 78-pin connnector Serial ports DB9 (9-pin) Figure 2: Fan-out cable Hardware Installation General instructions for installing the card are provided... -
Page 4: Driver Installation
For more information, see figure 2 on page 3. Driver Installation This section provides information on how to install the CyberPro PCI 8S drivers. Windows 95 At the Update Device Driver Wizard, click Next. Insert the driver CD, and click Other Locations. - Page 5 From the Insert Disk window, click OK. When the Copying Files dialog box appears, type in D:\9x, then click OK. Restart Windows to complete the installation. Windows 98/98SE At the Add New Hardware Wizard, click Next. Select Search for the best driver for your device (Recommend), then click Next.
- Page 6 Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed eight times. Double click Multi-function adapters, SIIG CyberPro 8S PCI board and PCI Function should be displayed. Windows NT 4.0 From the desktop click Start, then Run. Insert the driver CD, type in D:\NT4\Install_Serial.exe, then click OK.
- Page 7 Repeat steps 1-5 nine more times. Restart Windows to complete the installation. 32-bit Windows XP/Server 2003 At the Found New Hardware Wizard, insert the driver CD. For XP w/SP1 or earlier/ Server 2003: go to step #2. For XP w/SP2 or later/Server 2003 wSP1 or later: select No, not this time, click Next.
- Page 8 Device Manager. Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed eight times. Double click Multifunction adapters, SIIG CyberPro 8S PCI board should be displayed. Windows Vista ™ At the Found New Hardware window, insert the driver CD, click Locate and install driver software (recommended), then click Continue.
- Page 9 Changing COM Port Address Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. Windows 95/98/98SE/ME From the Device Manager window double click Ports (COM & LPT), then double click the CyberSerial PCI serial port you want to change.
- Page 10 Blank Page...
-
Page 11: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. SIIG RMA department can also be reached at (510) 413-5333. - Page 12 6078 Stewart Avenue Fremont, CA 94538-3152, USA CyberPro PCI 8S is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Other names used in this publication are for identification only and may be trademarks of their respective companies.
