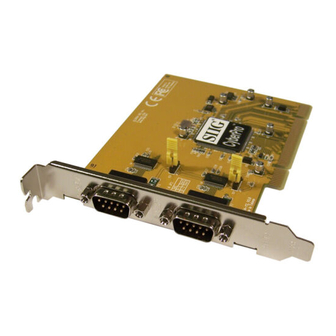

Introducing the CyberPro PCI 2S
The CyberPro PCI 2S high-speed serial I/O card provides
two additional 9-pin serial ports. Depending on the
model purchased, this board will fit into either a Full or
Low Profile chassis.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Reduces CPU load and improves system
performance dramatically
•
IRQ sharing feature reduces IRQ conflicts
•
High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•
Built-in FIFO buffers dramatically increase data
transmit/receive speed, especially under Windows'
multitasking environment
•
Each serial port can be configured for either 5V or
12V output, for serial devices that require power
System Requirements
•
Pentium or equivalent computer with an available
PCI slot
•
Windows 95/98/98SE/ME/NT 4.0/2000/XP/
Server 2003
04-0342B
CyberPro PCI 2S

Quick Installation Guide

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CyberPro PCI 2S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SIIG CyberPro PCI 2S

Summary of Contents for SIIG CyberPro PCI 2S

  • Page 1: Quick Installation Guide

    CyberPro PCI 2S Quick Installation Guide Introducing the CyberPro PCI 2S The CyberPro PCI 2S high-speed serial I/O card provides two additional 9-pin serial ports. Depending on the model purchased, this board will fit into either a Full or Low Profile chassis.

  • Page 2: Package Contents

    Package Contents • CyberPro PCI 2S board • 2-port fan-out cable • Low profile bracket (Dual Profile board only) • Driver CD • Quick installation guide Layout Full profile bracket* JP2 (Serial port 2) Fan-out cable connector (25-pin) JP1 (Serial port 1) Figure 1.

  • Page 3: Hardware Installation

    Fan-out Cable 9-pin serial 25-pin connector 9-pin serial Figure 2. Fan-out cable Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system.

  • Page 4: Driver Installation

    25-pin connector. See Figure 2 on page 3 for more details. Driver Installation This section provides information on how to install the CyberPro PCI 2S drivers. Windows 95 At the Update Device Driver Wizard, click Next. Insert the driver CD, click Other Locations.
  • Page 5 Windows 98/98SE At the Add New Hardware Wizard, click Next. Select Search for the best driver for your device (Recommend), then click Next. Insert the driver CD, check Specify a location, uncheck the other boxes, type in D:\9x, then click Next.
  • Page 6 Double click Multi-function adapters, SIIG CyberPro 2S PCI board and PCI Function should be displayed. Windows NT 4.0 From the desktop click Start, then Run. Insert the driver CD, type in D:\NT4\Install_serial.exe, then click OK. (Change D: to match your CD-ROM drive letter) Click Next when the Welcome window appears.
  • Page 7 Windows XP At the Found New Hardware Wizard, select Install from a list or specific location (Advanced), then click Next. Insert the driver CD, check Include this location in the search, uncheck the other box, type in D:\XP, and click Next. (Change D: to match your CD-ROM drive letter) If the Hardware Installation window pops up, click Continue Anyway, then Finish.
  • Page 8 Click on the + (plus sign) in front of Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed two times. Double click Multifunction adapters, SIIG CyberPro 2S PCI board should be displayed. Changing COM Port Address Some serial devices need a specific COM port in order to work.

  • Page 9: Technical Support And Warranty

    SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton. You are responsible for the cost of shipping the product to SIIG • at the following address: SIIG, Inc.
  • Page 10 Fremont, CA 94538-3152 CyberPro PCI 2S is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Other names used in publication are for identification only and may be trademarks of their respective companies.
