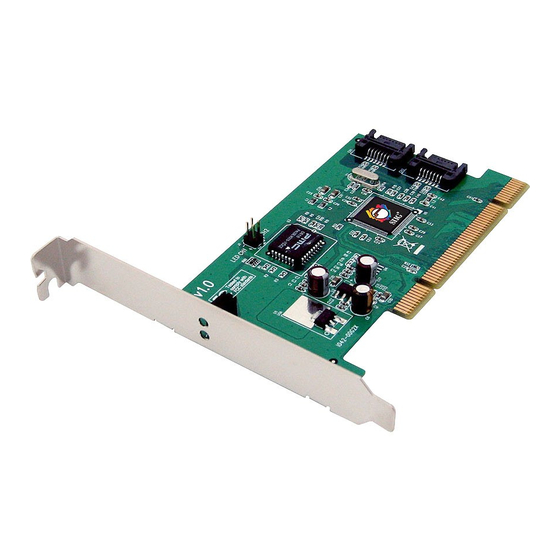

Introducing the SATA II-150 PCI
The SATA II-150 PCI is an ultra high-speed dual channel
Serial ATA Generation 2 controller for use in PCI enabled
systems.
Features and Benefits
•
Add up to two high-speed SATA hard drives
•
New Serial ATA cable – easier to install & provides
better air circulation
•
Supports two SATA channels and data transfer rate
up to 1.5Gb/s (150MB/s)
•
Supports Native Command Queuing (NCQ) and
SATA TCQ commands
•
Onboard bus master engine relieves the system
processor from book keeping and enhances
performance
•
Features independent 256-byte FIFOs per channel
for host reads and writes
•
Breaks the 137GB barrier! Works with various
brands of large capacity Serial ATA hard disks
•
Supports SATA hard disk hot-plugging
•
Compliant with PCI 2.3
•
Compliant with Serial ATA 1.0 specifications and
complement of SATA II optional features
04-0409D
SATA II-150 PCI
Quick Installation Guide
1
Advertisement
Table of Contents
Related Manuals for SIIG SATA II-150 PCI
Summary of Contents for SIIG SATA II-150 PCI
- Page 1 SATA II-150 PCI Quick Installation Guide Introducing the SATA II-150 PCI The SATA II-150 PCI is an ultra high-speed dual channel Serial ATA Generation 2 controller for use in PCI enabled systems. Features and Benefits • Add up to two high-speed SATA hard drives •...
-
Page 2: System Requirements
System Requirements ® • Pentium or equivalent PC with an available PCI slot ® • Windows 2000 / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Vista (32-/64-bit) Package Contents • SATA II-150 PCI • SATA data cable and power cable •... -
Page 3: Hardware Installation
Hardware Installation Note: For low profile systems, replace the currently mounted bracket with the included low profile bracket. General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer s reference ’... -
Page 4: Driver Installation
Driver Installation This section provides information on how to install the SATA II-150 PCI drivers for the following operating systems. Windows 2000 New Windows 2000 Installation A new installation of Windows 2000 requires a floppy disk for the driver installation. To make this floppy disk, copy the contents of the Floppy folder, found on the driver CD, onto a blank floppy disk then follow the directions below. - Page 5 Click Yes, then click Finish. Restart Windows to complete the driver installation. Windows XP/Server 2003 New Windows XP/Server 2003 Installation A new installation of Windows XP/Server 2003 requires a floppy disk for the driver installation. To make this floppy disk, copy the contents of the Floppy folder, found on the driver CD, onto a blank floppy disk then follow the directions below.
- Page 6 Insert the driver CD, select Install the software automatically (Recommended), then click Next, Next. Click Continue Anyway, then click Finish. Restart Windows to complete the driver installation. To Verify Windows 2000/XP/2003 Installation Right click My Computer and click Manage. Select Device Manager. Double click SCSI and RAID Controllers, then double click Initio inic1620 S-ATA Adapter.
- Page 7 Existing Windows Vista Installation Install the board and boot up Windows. At the Found New Hardware Wizard, insert the driver CD, select Locate and install driver software (Recommended), then click Continue. Click Next, select Install this driver anyway, then click Close. Remove the driver CD and restart Windows to complete the installation.
- Page 8 Remove the driver CD and restart Windows to complete the installation. To Verify Windows Vista Installation Right click Computer, click Manage, click Continue. Select Device Manager. Double click SCSI and RAID Controllers, then double click Initio inic1620 S-ATA Adapter. A message This device is working properly is displayed, the driver has been correctly installed.
- Page 9 Click Browse my computer for driver software (Advanced). Type in D:\Vista32, (change D: to match your CD-ROM drive letter), then click Next. Click Install this driver software anyway, then click Close. Remove the driver CD and restart Windows to complete the installation. Windows Server 2008 (64-bit) New Windows 2008 Installation Install the board and follow Microsoft procedures...
-
Page 10: Bios Configuration
Existing Windows 2008 Installation Install the board and boot up Windows. At the Found New Hardware Wizard, insert the driver CD, select Locate and install driver software (Recommended), then click Don't search online. Click I don't have the disc. Show me other options. Click Browse my computer for driver software (Advanced). -
Page 11: Technical Support And Warranty
Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. Step 2: After obtaining an RMA number, ship the product. - Page 12 Fremont, CA 94538-3152, USA Ph: 510-657-8688 SATA II-150 PCI is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Pentium is a registered trademark of Intel Corporation.
