Introducing the CyberPro PCI 4S

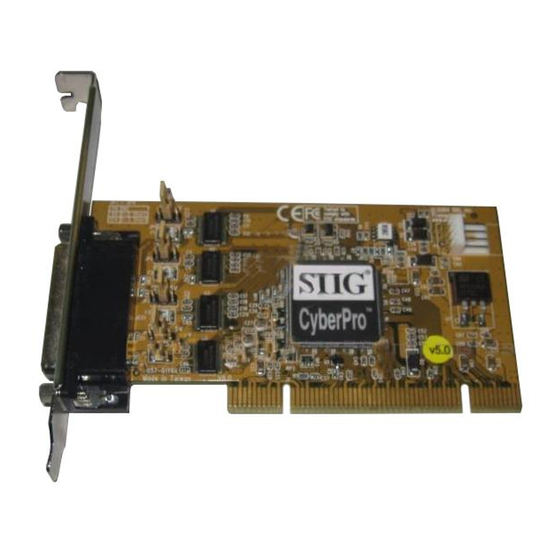

The CyberPro PCI 4S high-speed serial I/O card provides
four additional 9-pin serial ports. Depending on the
model purchased, this board will fit into either a Full or
Low Profile chassis.
Features and Benefits
•
Conforms to PCI v2.2 Plug and Play
•
Full support for Windows-based software
•
Reduces CPU load and improves system
performance dramatically
•
IRQ sharing feature reduces IRQ conflicts
•
High-speed serial port (9-pin) works with 56K V.90
external modems, ISDN terminal adapters, PDAs,
digital cameras, label printers and other serial port
devices
•
Built-in FIFO buffers dramatically increase data
transmit/receive speed, especially under Windows'
multitasking environment
•
Each serial port can be configured for either 5V or
12V output, for serial devices that require power
System Requirements
•
Pentium or equivalent computer with an available
PCI slot
•
Windows
/64-bit)/Server 2003 (32-/64-bit)/Vista (32-/64-bit)
04-0343C
CyberPro PCI 4S

Quick Installation Guide

®
95/98/98SE/ME/NT 4.0/2000/XP (32-
1

Advertisement

loading

Related Manuals for SIIG CyberPro PCI 4S

Summary of Contents for SIIG CyberPro PCI 4S

  • Page 1: Quick Installation Guide

    CyberPro PCI 4S Quick Installation Guide Introducing the CyberPro PCI 4S The CyberPro PCI 4S high-speed serial I/O card provides four additional 9-pin serial ports. Depending on the model purchased, this board will fit into either a Full or Low Profile chassis. Features and Benefits •...
  • Page 2 Package Contents • CyberPro PCI 4S board • 4-port fan-out cable • Low profile bracket (Dual Profile board only) • Driver CD • Quick installation guide Layout Full profile 4-pin power bracket connector (S1) (S2) (optional)* 44-pin connector (S4) (S3) Figure 1.

  • Page 3: Hardware Installation

    Fan-out Cable Serial ports DB9 44-pin (9-pin) connector Figure 2. Fan-out cable Hardware Installation General instructions for installing the card are provided below. Since the design of computer cases and motherboards vary, refer to your computer’s reference manual for further information, if needed. Static Electricity Discharge may permanently damage your system.

  • Page 4: Driver Installation

    Set JP1-JP4 jumper settings to the desired voltage only if your serial device(s) needs additional power from the serial port. However, most serial devices do not require additional power. For more information, see Figure 1 on page 2. Skip this step if power is not required.
  • Page 5 From the main desktop, double click My Computer, Control Panel, System, then click Device Manager. Double click Ports (COM & LPT), CyberSerial PCI 16Cxxx... should be displayed four times. Double click Multi-function adapters, SIIG CyberPro 4S PCI board and PCI Function should be displayed.
  • Page 6 Windows NT 4.0 From the desktop click Start, then Run. Insert driver type D:\NT4\Install_serial.exe, then click OK. (Change D: to match your CD-ROM drive letter) Click Next when the Welcome window appears. Select Install, then click Next. Click Yes, then click Exit. Restart Windows to complete the installation.
  • Page 7 32-bit Windows XP/Server 2003 At the Found New Hardware Wizard, insert the driver CD. For XP w/SP1 or earlier/ Server 2003: go to step #2. For XP w/SP2 or later/Server 2003 wSP1 or later: select No, not this time, click Next. Select Install the software automatically (Recommended, then click Next.
  • Page 8 Device Manager. Click on the + (plus sign) in front of Ports (COM & LPT), and CyberSerial PCI 16Cxxx... should be displayed four times. Double click Multifunction adapters, SIIG CyberPro 4S PCI board should be displayed. Windows Vista ™ At the Found New Hardware window, insert the driver CD, click Locate and install driver software (recommended), then click Continue.
  • Page 9 Changing COM Port Address Some serial devices need a specific COM port in order to work. If your serial device works properly, do not change this setting. Windows 95/98/98SE/ME From the Device Manager window double click Ports (COM & LPT), then double click the CyberSerial PCI serial port you want to change.
  • Page 10 Blank Page...

  • Page 11: Technical Support And Warranty

    Step 1: Submit your RMA request. Go to www.siig.com, click Support, then RMA to submit a request to SIIG RMA. If the product is determined to be defective, an RMA number will be issued. SIIG RMA department can also be reached at (510) 413-5333.
  • Page 12 6078 Stewart Avenue Fremont, CA 94538-3152, USA CyberPro PCI 4S is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft, Windows and Windows Vista are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation. Other names used in this publication are for identification only and may be trademarks of their respective companies.
