NOTE: Hold the card by its external edges
only. Try to avoid touching the components,
connectors or pins.

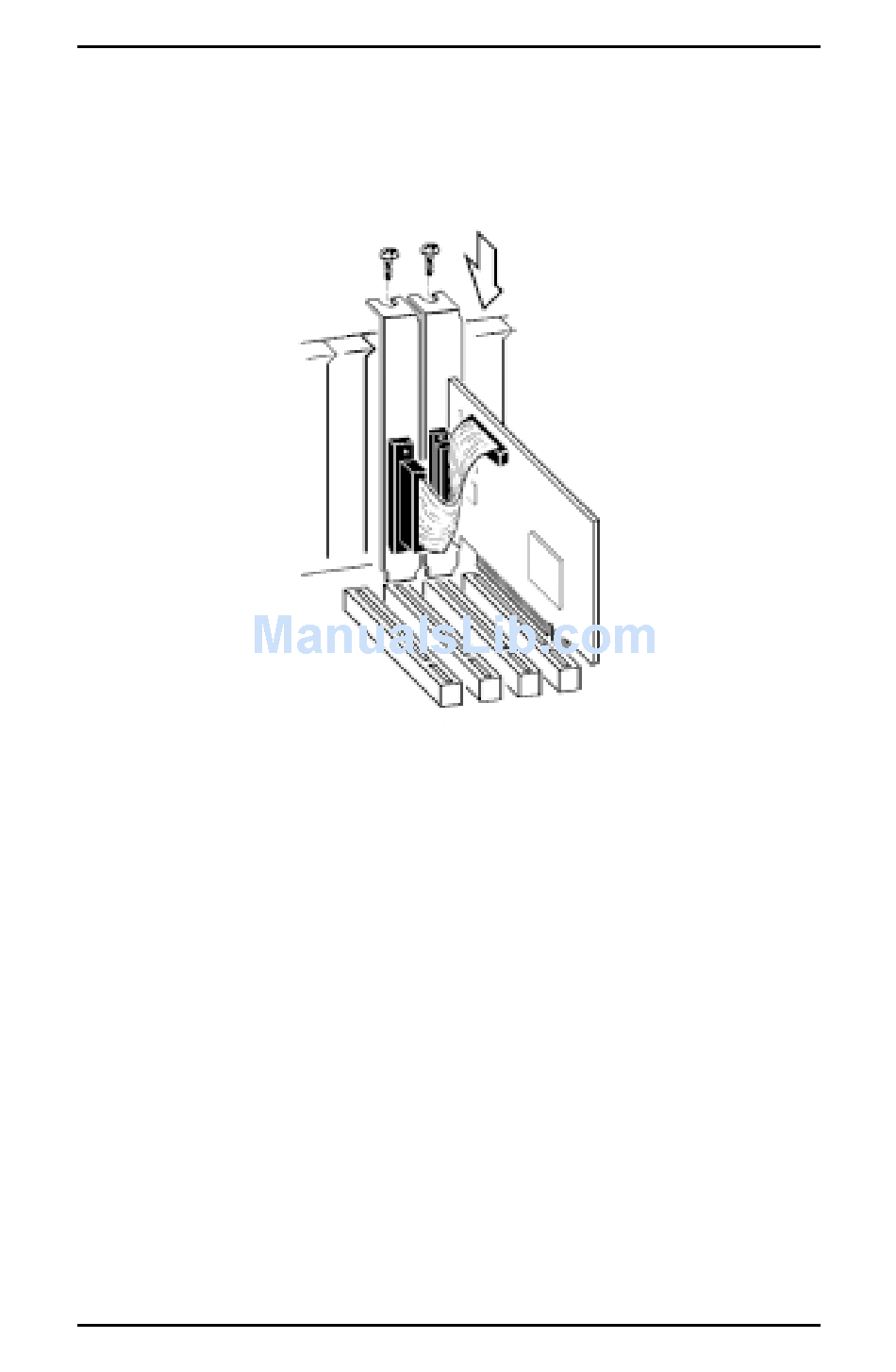

Fig. 2-2. Install the CyberParallel Dual Board and
8. Replace the slot bracket holding screws to secure the
board and the connector bracket to the rear slot panels.
9. Connect the connector on the bracket mounted parallel
port's ribbon cable to the 26-pin connector on the
CyberParallel Dual board. Make sure pin 1 of the ribbon
cable (the side imprinted with color stripe) is matched
with pin 1 on the board's connector (indicated by a silk
screened number 1).
10. Replace the computer's cover.
11. Reconnect the power cord and make new connections to
the ports.
The hardware installation is now complete. Continue to the
next section for the installation of the driver and utiltiy files.
the connector bracket
Installation
2-3
