A
P
DDING THE
APER
Part #4005
1. Make sure the printer is turned off and disconnected.
2. Make sure there is plenty of room around and above the
printer to work. Remove the optional Paper Tray 2 unit
from its packaging. Find the packet of brackets and
thumb screws and set aside.
3. Remove the .75"x 2" Cable Connector Door from the
unit. Extent the Connector Cable away from the unit.

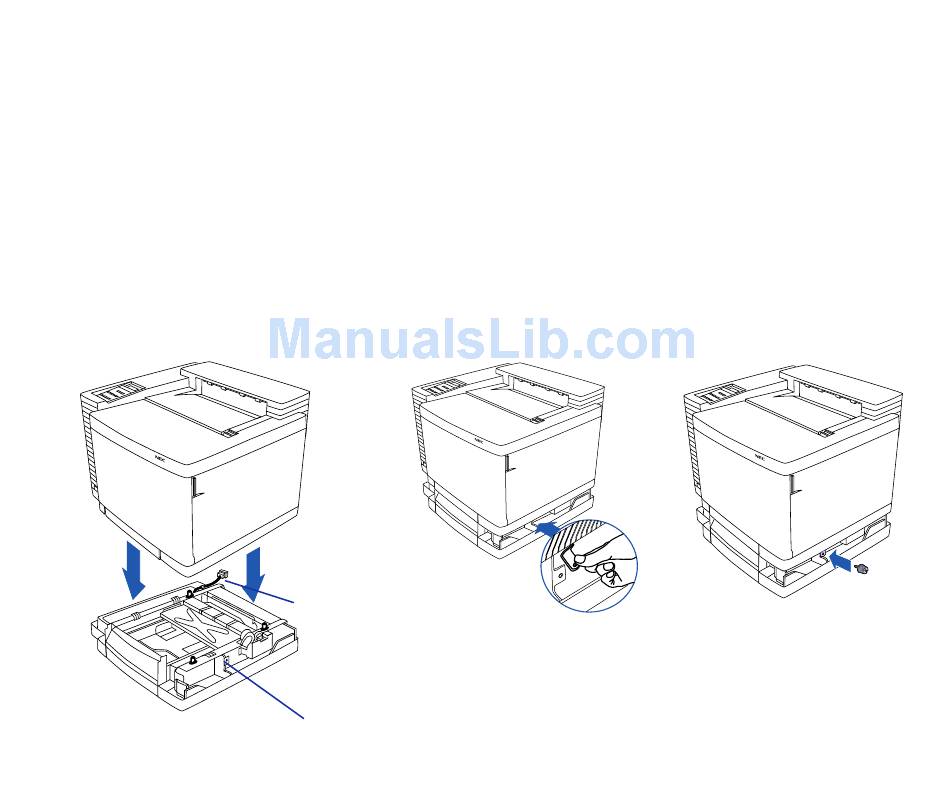

4. Set the Paper Tray 2 unit next to the printer. Carefully
align the Paper Tray 2 unit to the printer. Keeping the
printer level, lift the printer up and onto the Paper Tray 2
Unit as shown (A).
Adding Paper Tray 2 Unit
A
26
SuperScript 4200N — User's Guide
T
2 U
RAY
NIT
B
Connector Cable
Adding Paper Tray 2 will increase
the printer's height by 4 inches
Screw Hole
WARNING!
It takes two adults to lift the printer and
assure that it is level. If the printer is tipped more than 1.5
degrees, oil will spill inside and cause damage.
5.
Locate the metal tab with screw hole on each side of the
Paper Tray 2 unit (A).
6.
Take a metal bracket from the packet and hold it at a
slight angle away from you. Slide the bracket up into the
hole underneath the printer (B).
7.
Make sure the hole in each metal bracket is lined up with
the corresponding screw hole on the Paper Tray 2 unit.
Insert and tighten the thumb screws (C).
C
