RuggedBackbone™ RX1501
Installation Guide

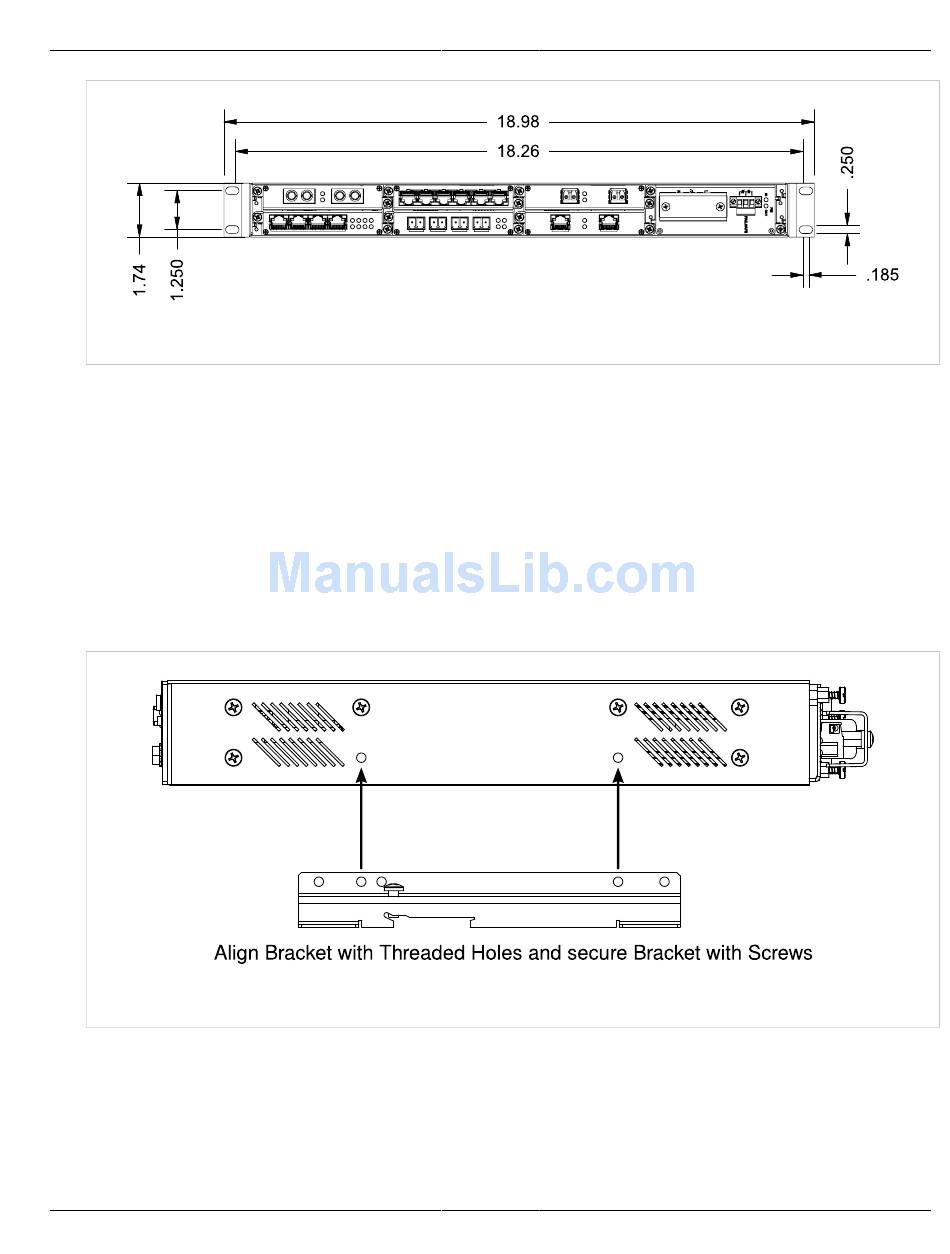

Figure 34: RX1501Rack Mounting Dimensions – Rear View
Section 3.1.2
Panel and DIN Rail Mounting
The RuggedBackbone™ RX1501 features optional mounting brackets for panel and DIN rail mounting. The
optional brackets attach to both sides of the appliance at the rear of the chassis. For panel mounting, the
mounting bracket provides four mounting holes. For DIN rail mounting, the DIN adaptor mounts to a standard 1"
DIN rail and is secured with a lock screw on each adaptor.
To attach the mounting brackets, remove the black pan head Phillips screws from side of the appliance. Align the
brackets with the threaded holes on the sides of the appliance. Secure the mounting bracket with the screws from
the chassis. Torque all screws to 10 in-lbs.
Figure 35: Installing Panel and DIN Rail Mounting Brackets
Panel and DIN Rail Mounting
Chapter 3
Installation
15
