Chapter 3

Installation

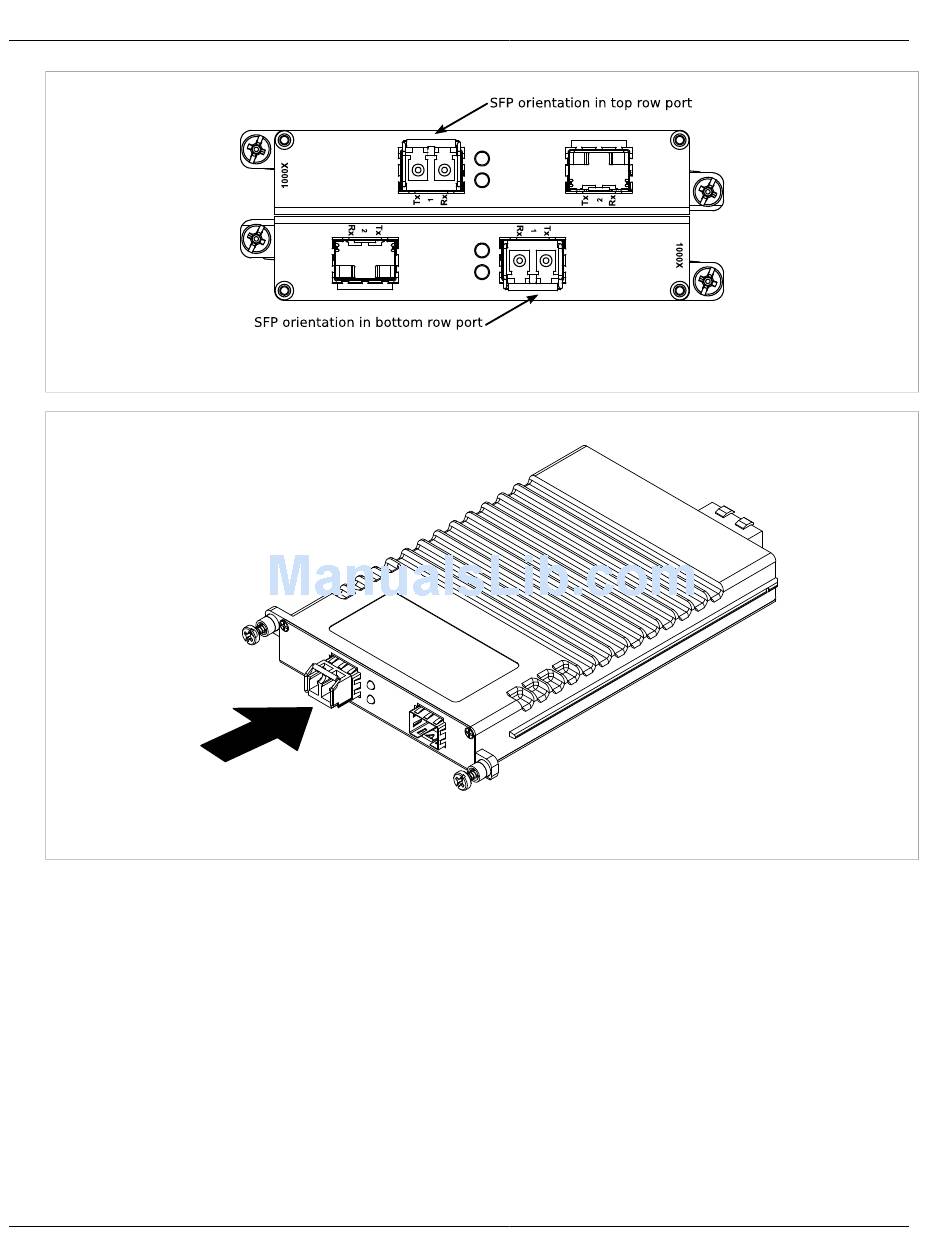

Figure 55: SFP module orientation

Figure 56: SFP module insertion

SFP modules should slide gently into their ports and should lock in place when fully inserted. Dust covers should

be in place when installing the modules, and should always be in place when cables are not connected.

Section 3.11.2

SFP Module Removal

To remove the SFP module, disconnect any cables and replace the dust cover to protect the optics. Extend the

bail latch found on the top of the module. Grasp the bail latch and gently pull outwards to unlock and remove the

module.

Immediately after removal, store the SFP module in an ESD-safe environment.

RuggedBackbone™ RX1501

Installation Guide
