Chapter 2
RuggedBackbone™ Modules

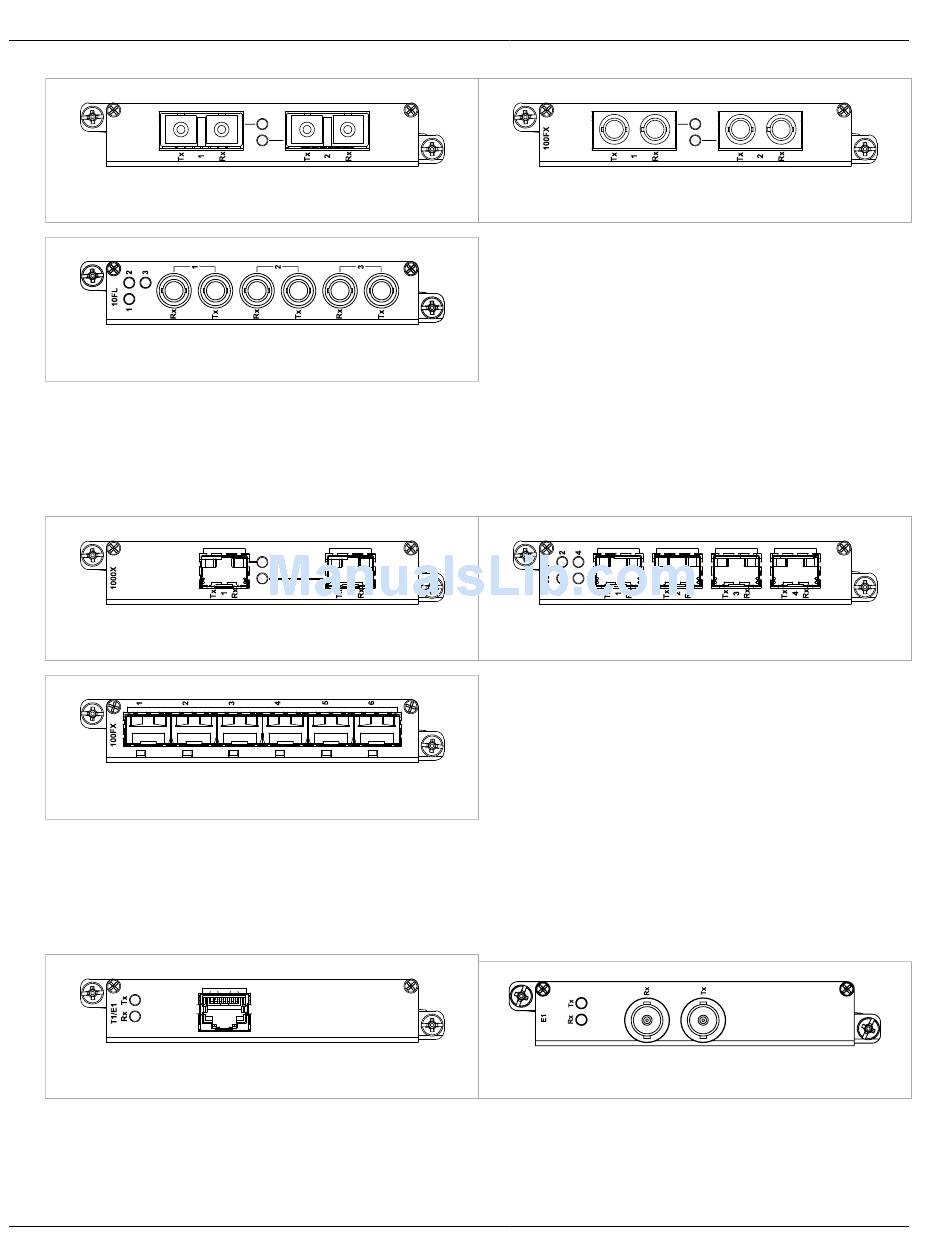

Figure 12: FX**: 2 × 100FX SC
Figure 14: FL01: 3 × 10FL/100SX
Section 2.3.3
SFP Modular
Figure 15: FG5*: 2 × 1000LX/1000SX SFP
Figure 17: 6FX50: 6 × 100FX SFP
Section 2.3.4
WAN
Figure 18: TC1: 1 × T1/E1 RJ45
8
Figure 13: FX**: 2 × 100FX ST
Figure 16: FX5*: 4 × 100FX/100LX/100SX SFP
Figure 19: E01: 1 × E1 BNC
RuggedBackbone™ RX1501
Installation Guide
SFP Modular
