RuggedBackbone™ RX1501
Installation Guide
Section 3.1.3
Panel and DIN Rail Mounting Dimensions

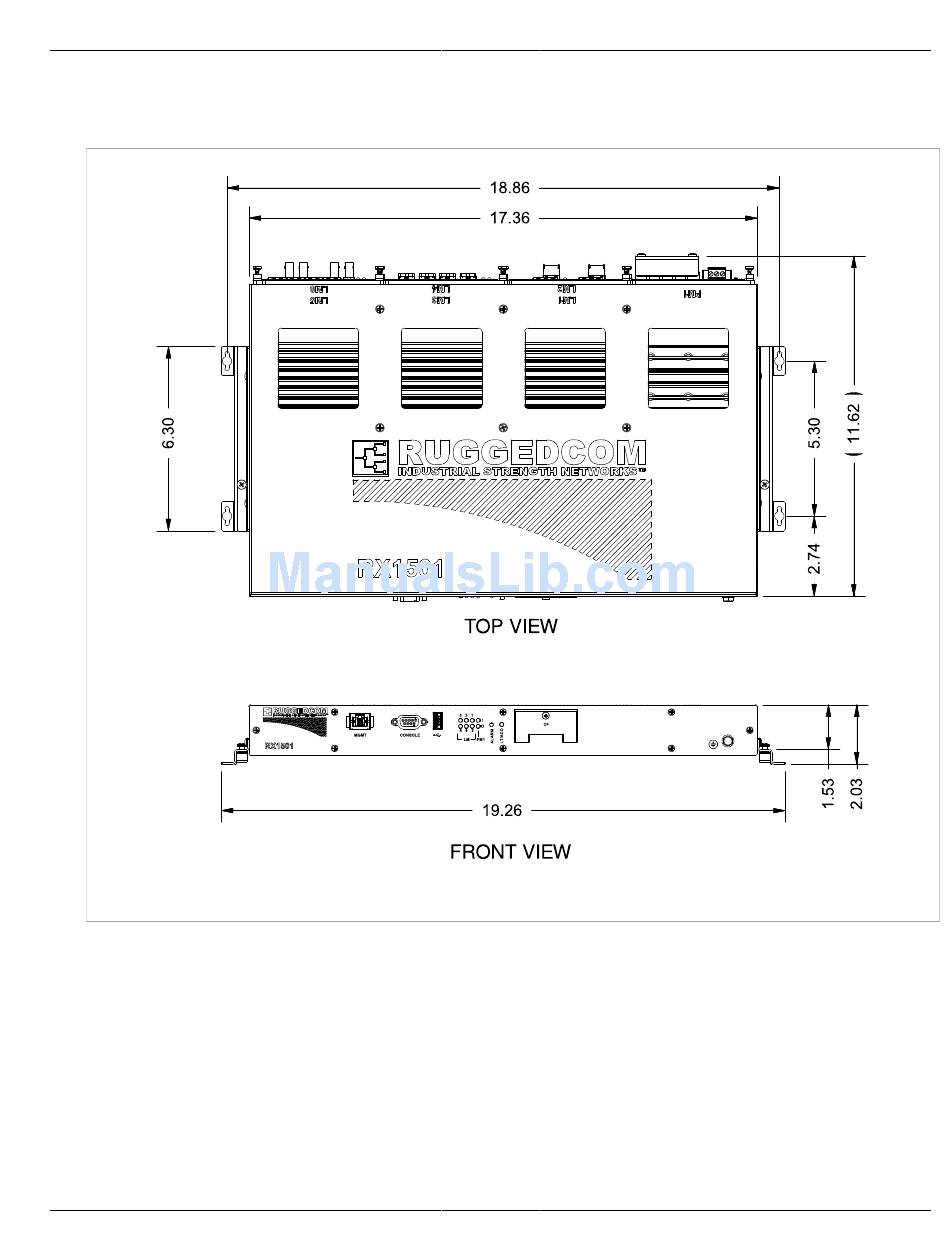

Figure 37: Panel and DIN Rail Mounting Dimensions
Section 3.2
Power Supply Wiring and Grounding
The RX1501 supports a single power supply, power module 1 (PM1). Power connections are located on the PM1
module face plate. An optional chassis ground connection is located on the front panel as shown in
"Front
View".
RX1501 products can be equipped with either a Phillips Screw Terminal Block or a Phoenix Plug Terminal
Block. The Phillips Screw Terminal Block has Phillips screws with compression plates, allowing either bare wire
connections or crimped terminal lugs. We recommend the use of #6 size ring lugs to ensure secure, reliable
Panel and DIN Rail Mounting Dimensions
Chapter 3
Installation
Figure 2,
17
