2.2 Panel and DIN Rail Mounting
The RSG2000 series products can be ordered as a Panel/DIN mount chassis. Both
options involve the use of the panel/DIN adapters to be mounted on each side of the
chassis enclosure. The adapter allows for the chassis to be mounted on the standard 1"
DIN rail using the grooves in the adapter, secured using the included Philips screw. See
Figure 14 for a PANEL/DIN mount diagram.

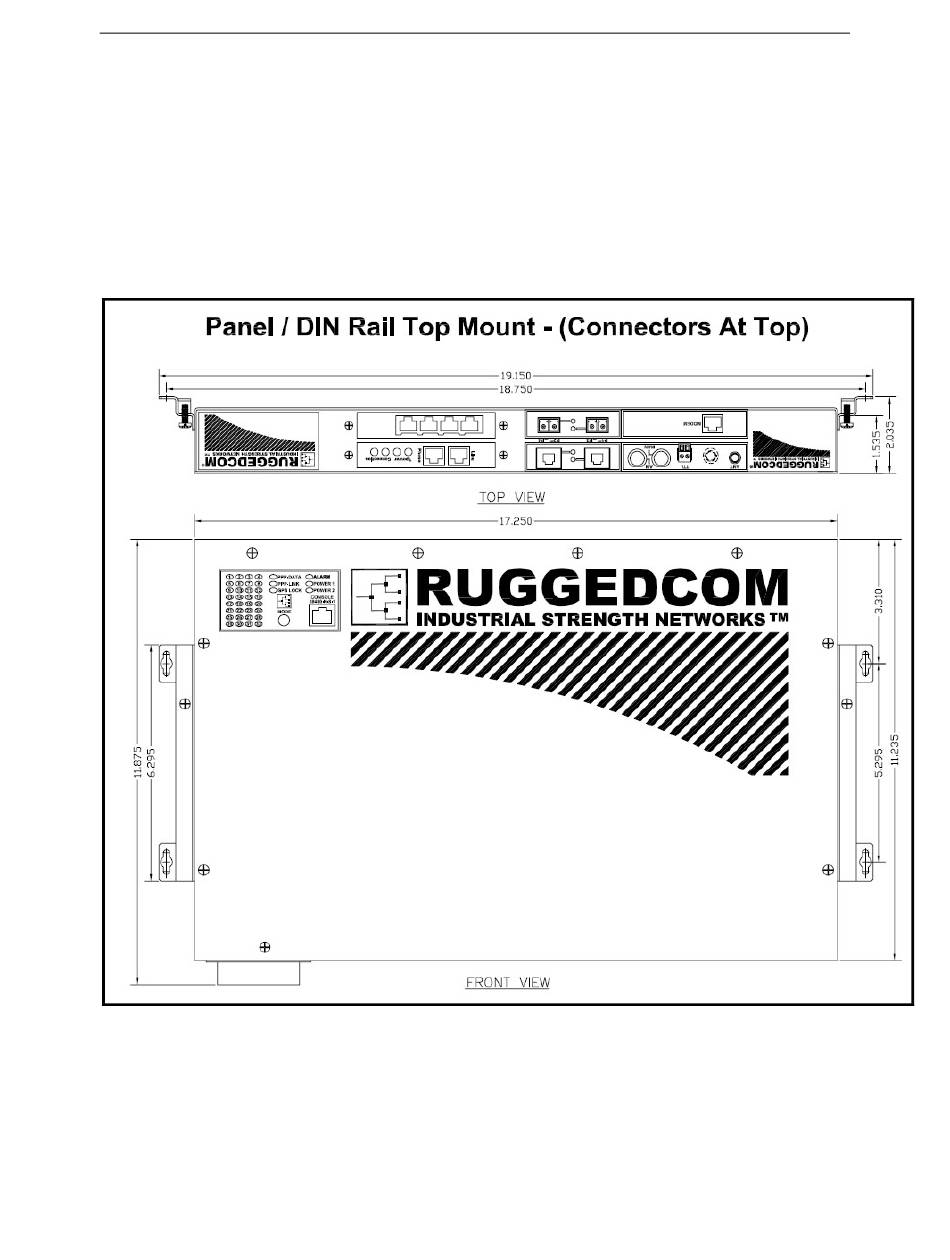

Figure 14: RSG2000 PANEL/DIN RAIL mounting diagram
®
®
