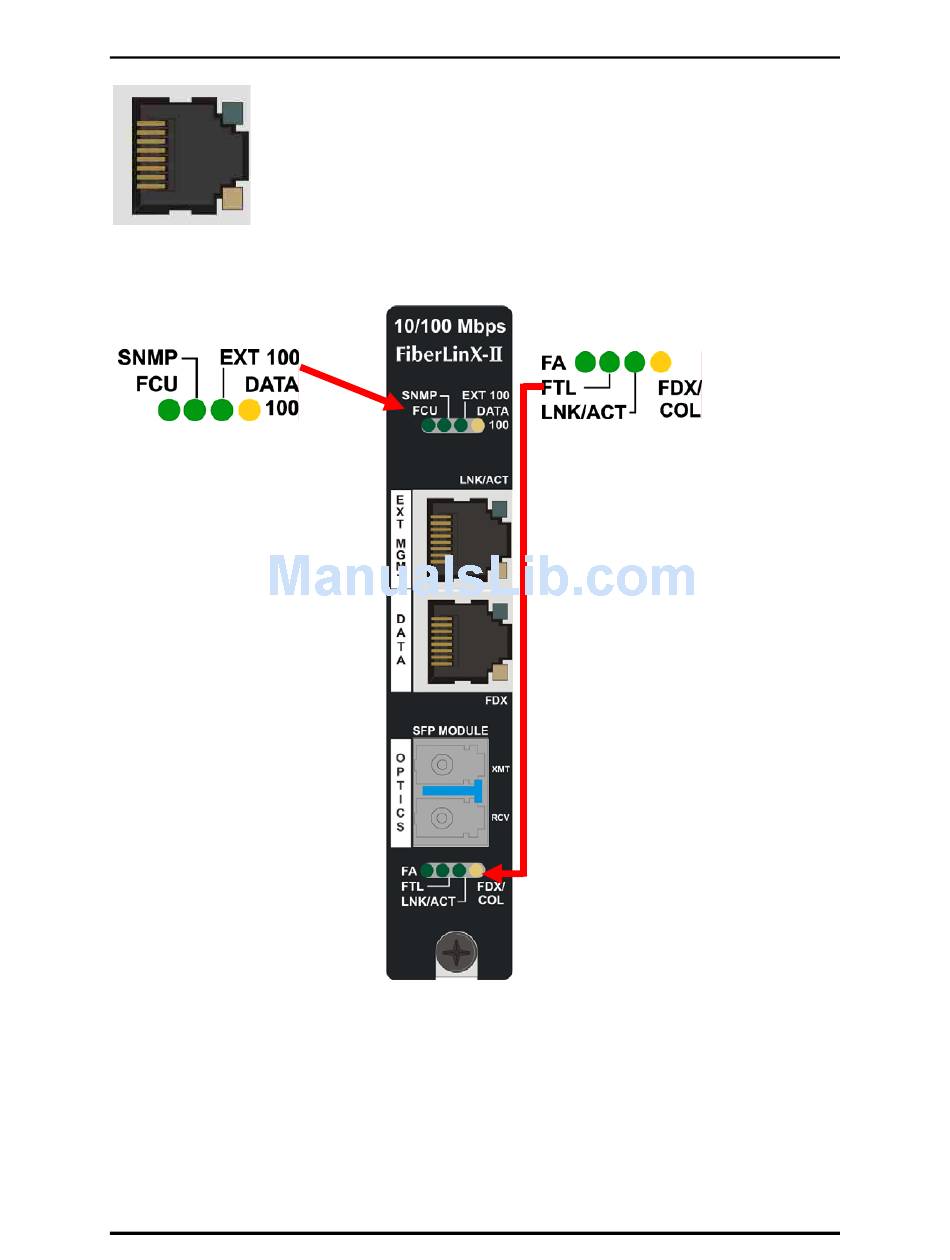

TX/SFP LEDs

LNK/ACT:
•
•
FDX:
•
•
Diagnostic LEDs
FCU (Far CPU Up):
• Host: Glows green when
far end is detected.
• Remote: Glows green
when unit is configured
as Remote.
• Standalone Unit: LED
remains OFF.
SNMP:
This LED glows green to
indicate that this is an SNMP
manageable module.
EXT 100:
Glows green when EXT
MGMT port is operating at
100 Mbps.
DATA 100:
Glows yellow when DATA port
is operating at 100 Mbps.
Glows green when link is established on port.
Blinks green during data activity on port.
Glows yellow when port is operating in Full-Duplex.
Blinks yellow when collisions occur on port.
7
Optics Port LEDs
FA:
Glows green when FiberAlert is
enabled.
FTL:
• Host: Glows green when a
link is established on remote
(far-end) DATA port.
• Remote: Glows green when
unit is configured as Remote.
• Standalone: LED remains
OFF.
LNK/ACT (Link/Activity):
• Glows green when link is
established on port.
• Blinks green during data
activity on port.
FDX/COL (Full Duplex/Collision):
• Glows yellow when port is
operating in Full-Duplex.
• Blinks yellow when collisions
occur on port.
