Summary of Contents for IMC Networks IE-iMcV-MuxDemux/4

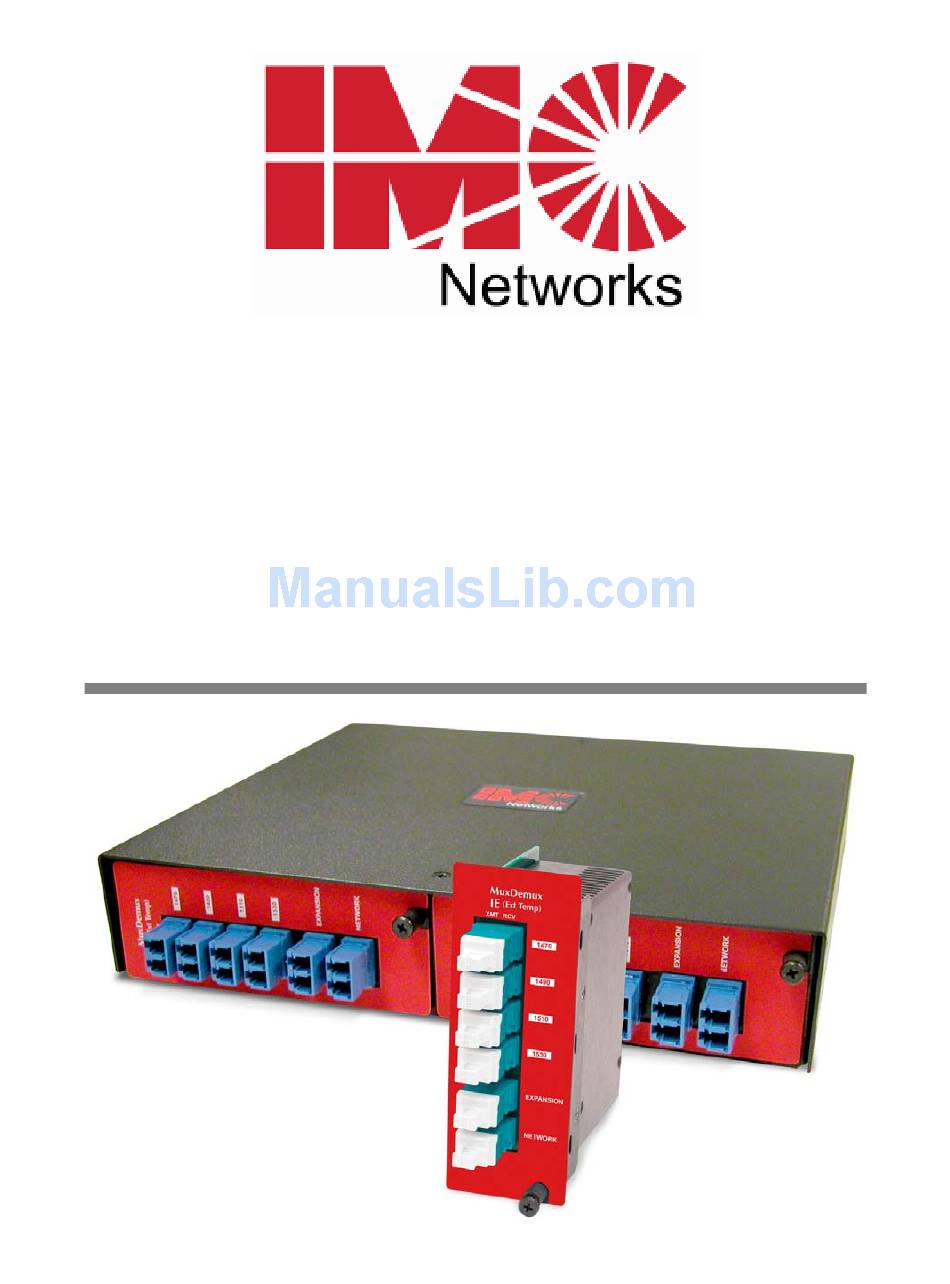

- Page 1 IE-iMcV-MuxDemux/4 CWDM System Operation Manual...
- Page 2 At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.
-
Page 3: Table Of Contents
Table of Contents Warranty......................ii About the IE-iMcV-MuxDemux/4 CWDM System ..........1 Installing an iMcV-Module .................2 Connecting the IE-iMcV-MuxDemux/4...............3 Specifications .....................4 IMC Networks Technical Support...............5 Fiber Optic Cleaning Guidelines.................6 Electrostatic Discharge Precautions..............7 Certifications......................8... -
Page 4: About The Ie-Imcv-Muxdemux/4 Cwdm System
Network Port Network Port The IE-iMcV-MuxDemux/4 is a dual wide module that provides 4 channels of CWDM (Coarse Wavelength Division Multiplexing), an expansion port to allow existing 1310sm fiber, in order to cascade additional units, and a network port. For customers deploying high-end gigabit switches, the IE-iMcV-MuxDemux/4can provide the growing need for greater bandwidth on fiber. -
Page 5: Installing An Imcv-Module
Installing an iMcV-Module The IE-iMcV-MuxDemux/4 installs in IMC Networks’ iMediaChassis series or in any MediaChassis/2. It occupies 2 slots as it is dual wide. The IE-iMcV-MuxDemux/4 can be installed in a 2 slot unmanaged chassis: • IE-MediaChassis/2-AC • IE-MediaChassis2-DC •... -
Page 6: Connecting The Ie-Imcv-Muxdemux/4
Port 5 Port 5 is an expansion port to allow multiple IE-iMcV-MuxDemux/4 to be daisy chained, or to carry a legacy 1310nm SM fiber link. Port 5... -
Page 7: Specifications
Specifications Fiber Optic (Insert Loss) 3.0dB for CWDM systems using an optical band between 1450nm and 1610nm NOTE Unit does not require power to operate! Operating Temperature -40°F to +185°F (-40°C to +85°C) Storage Temperature -40°F to +185°F (-40°C to +85°C) Humidity 5 to 95% (non-condensing);... -
Page 8: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 9: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 10: Electrostatic Discharge Precautions
Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component. -
Page 11: Certifications
Certifications European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste. This symbol indicates that the equipment should be disposed of separately from regular household waste. It is the consumer’s responsibility to dispose of this and all equipment so marked through designated collection facilities appointed by government or local authorities. - Page 12 © 2012 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-iMcV-MuxDemux/4 is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
