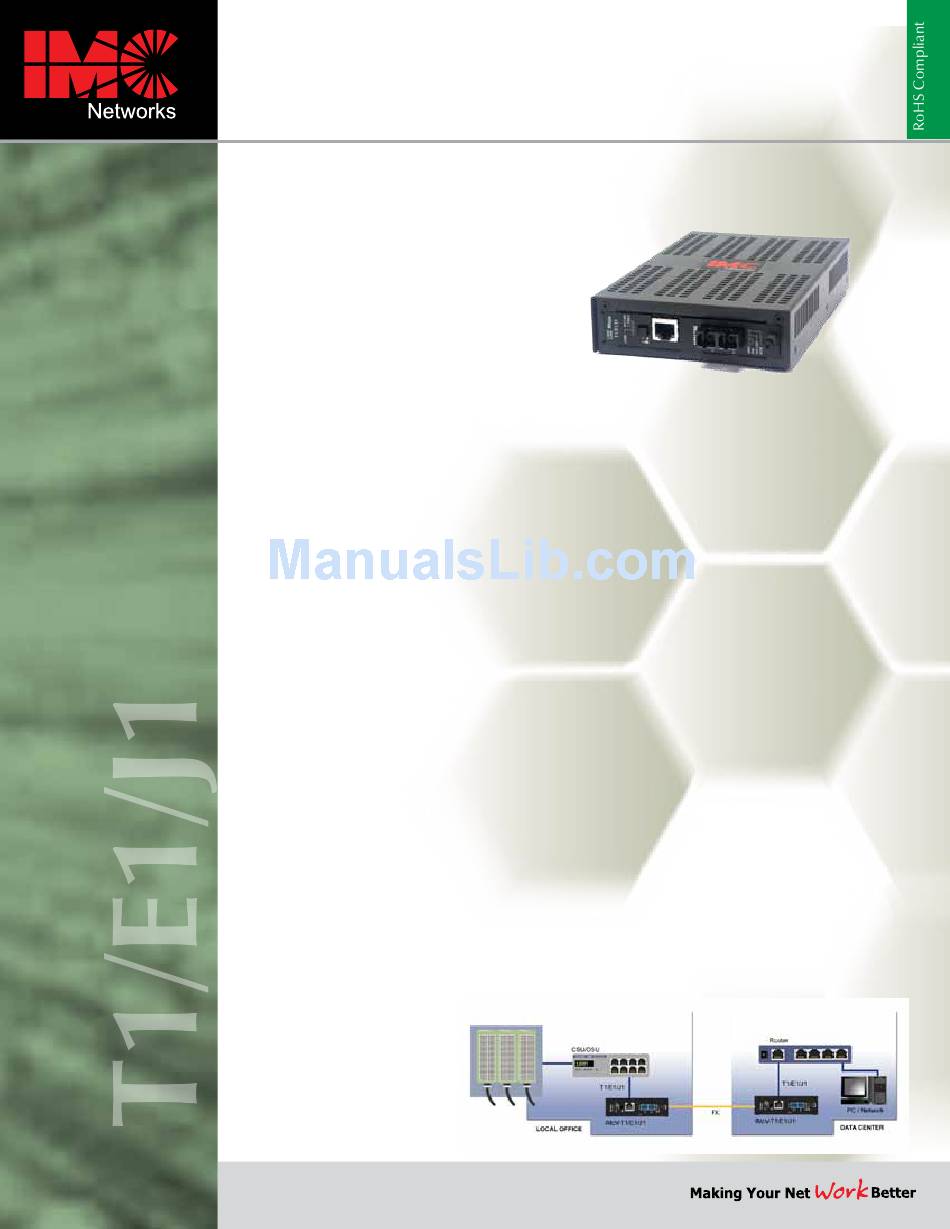

iMcV-T1/E1/J1 products are ideal for extending PBX or legacy Telco circuits
over fiber optics in the local loop and long-haul applications.
Switch Selectable Protocol
• Operates at T1 (1.544), E1 (2.048)
and J1 (1.544) protocols
Remote management
• Conduct loopback tests,
• Monitor/manage units via GUI-Based
iView²
• Full bit rate for customer traffic
Easy to configure and manage with
GUI-based iView²
• Up and running in less than five minutes
• Easily adjust settings when user
requirements change
• Easy upgrades; no user intervention or
visits to remote locations required
• Monitor and control all connections
Supports more fiber choices
• Available for multi-mode or single-mode
fiber
• Single-strand fiber versions
• Supports very long fiber distances
Eases Troubleshooting
• Three loopback testing modes, plus
SNMP management and LEDs assist
in diagnosing problems on fiber optic
networks
Application Example
iMcV-T1/E1/J1 media converters
allow users to link two PBXs, CSUs
or routers and extend the distance
between the two over fiber.
800-624-1070
iMcV-T1/E1/J1

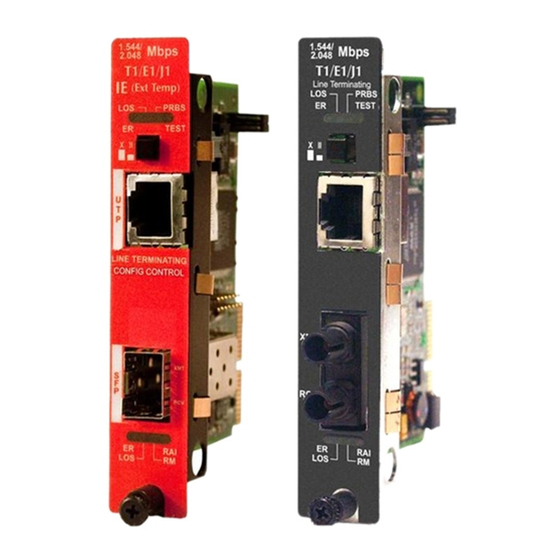

Telco Converter Switch Remote Management
* Module shown in MediaChassis/1-AC, sold separately
The iMcV-T1/E1/J1 modules are physical layer devices that
convert twisted pair to fiber and operate at a switch-selectable
protocol rate of T1 (1.544), E1 (2.048) and the Japanese J1
(1.544). The iMcV-T1/E1/J1 modules offer more fiber choices
and distances because they are engineered to the industry
standard 8B/10B PHY encoding.
Available with remote management via the fiber port, the
SNMP-manageable iMcV-T1/E1/J1 enables network managers
to conduct loopback testing, and monitor and manage units
located up to 100 km away at a remote location.
Full bit rate for customer traffic
Since IMC Networks' management technology functions
transparently to the frame format, customers will not experience
overhead or loss of a data channel typically associated with
remote management or SNMP polling. Customer traffic will
always be full bit rate: 1.544 Mbps or 2.048 Mbps.
iMcV-T1/E1/J1 products include:
• A line integrity test feature
• Three modes of operation for loopback testing (local,
remote and analog loopback)
• The Transmit Data Source diagnostic feature which
sends specific patterns of data (transmit all unframed
ones; transmit a pattern of zeros, and ones and transmit
a Pseudorandom Bit Sequence (PRBS) to determine
problems with the cable.
Configure all test modes remotely via iView² SNMP software
or locally by manually setting DIP Switches on the units. In
addition, iMcV-T1/E1/J1 also includes an internal elastic buffer
to remove jitter from transmitted data.
