System Description (sysDescr)

The sysDescr allows the end user to enter a description for the IMC Networks device.
Within the iView² GUI, a name or some kind of identifier can be entered into the
text box labeled Description. Once that description is saved, the identifier will be
maintained, even if power is interrupted to the unit.

Reboot

Entering reboot will save settings and reboot the IE-iMcV-MultiWay.

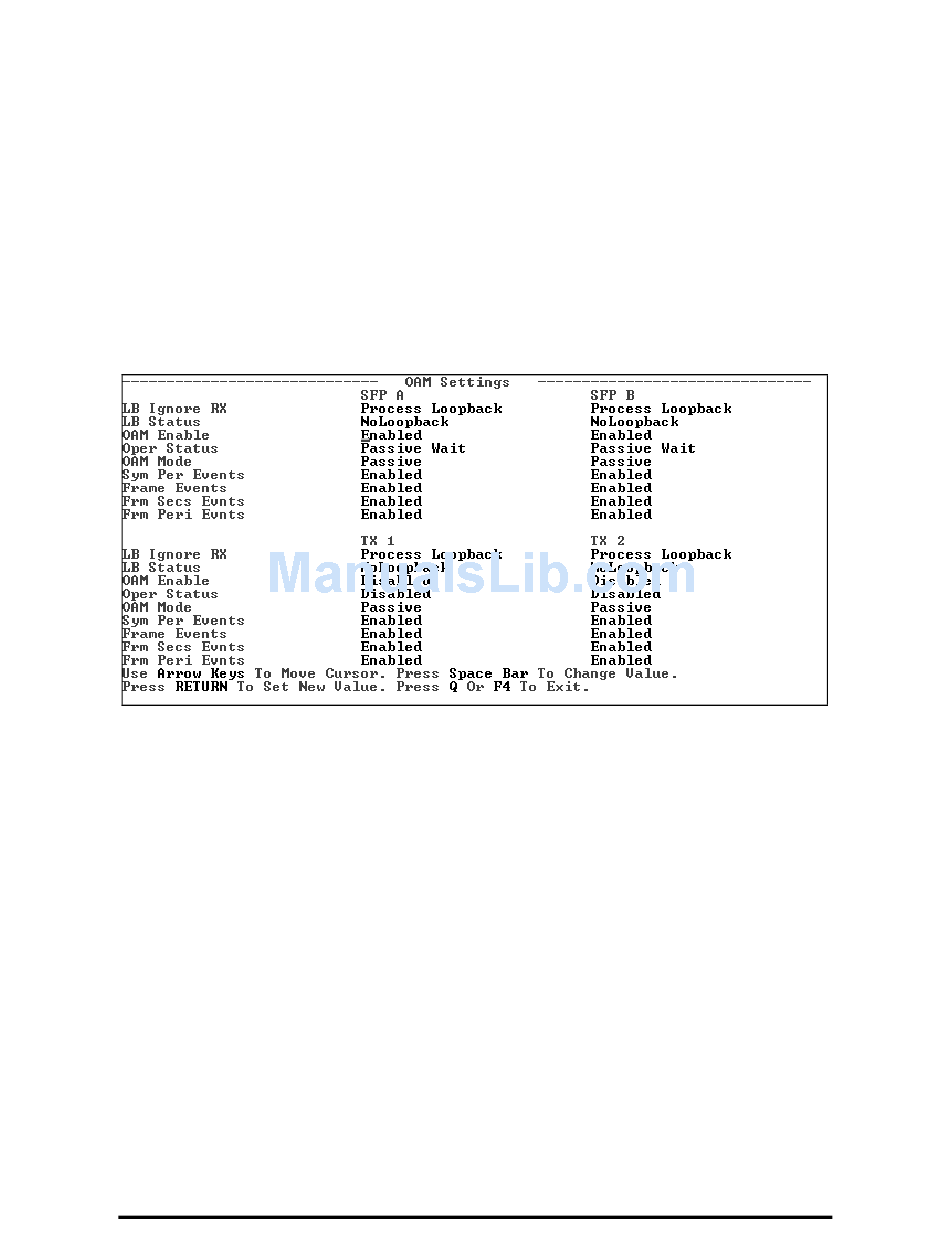

(Operation and Administration Management) OAM

Two modes of operations control the OAM function, Passive and Active. Passive
mode is the default mode.
OAM AH passive/active is available on the fiber SFP ports and TX ports
• Supports Discovery functions on the SFP ports.
• Supports reporting OAM Flag Events (Link Fault, Critical Event, and Dying Gasp)
• Supports Loopback
