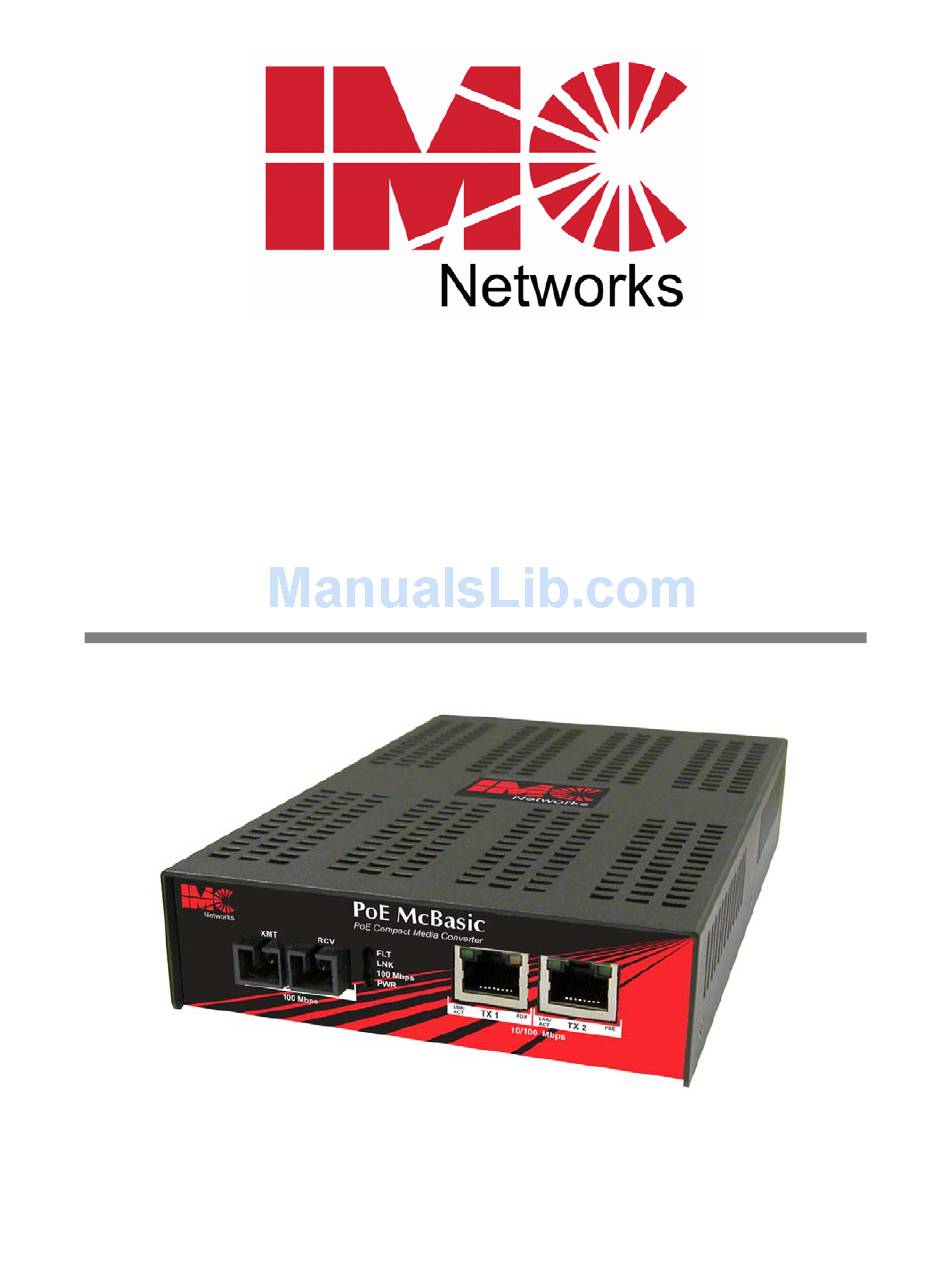

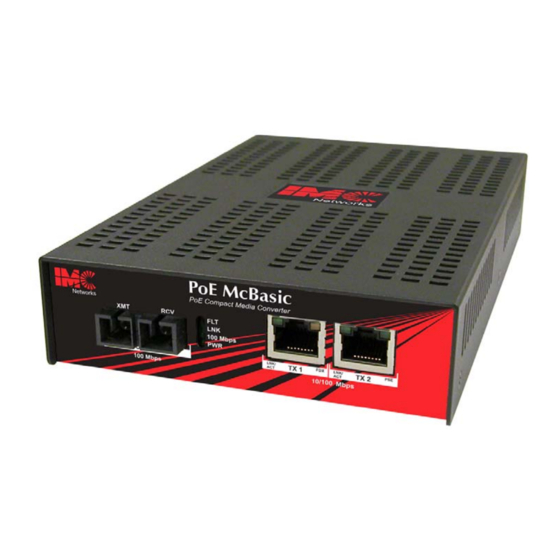

- Page 1 PoE McBasic Operation Manual Above illustration is representative; several models are available.
-
Page 2: Fcc Radio Frequency Interference Statement
IMC Networks' instructions and directions for a period of six (6) years after the original date of purchase. IMC Networks warrants to the original end- user purchaser that all SFPs shall be free from defects in materials and workmanship under normal and proper use in accordance with IMC Networks' instructions and directions for a period of one (1) year after the original date of purchase. -
Page 3: Table Of Contents
About the PoE McBasic ..................1 Installation ......................1 DIP Switch Configuration ...................2 LED Operation....................3 Troubleshooting ....................4 Specifications for the PoE McBasic ..............5 PoE Precautions (For Inside-a-Building Installation ONLY) ........5 IMC Networks Technical Support...............6 Fiber Optic Cleaning Guidelines.................7 Electrostatic Discharge Precautions..............7 Safety Certifications....................8... -
Page 4: About The Poe Mcbasic
PSE copper port, and is powered by an internal power supply, supporting 100-240 VAC. The copper ports Auto Negotiate to the connected device’s speed and duplex mode: 10 Mbps or 100 Mbps, and HDX or FDX (including Flow Control). The PoE McBasic supports jumbo frames up to 10240. Installation PoE McBasic installs virtually anywhere: as a standalone, table-top device, with rackmount ears, or using a Wallmount bracket. -
Page 5: Dip Switch Configuration
If one strand of fiber fails, the error is reported back down the other strand of fiber in the form of an FEF signal. This will cause the PoE McBasic to turn OFF the PoE power, if the PoE reset DSW #1 is set to ON. -
Page 6: Led Operation
LED Operation The PoE McBasicincludes LEDs for three ports, as shown below: 1x9 LED Functions are as follows: Glows red when a fault has been detected on the unit Glows green with a valid link 100 Mbps Glows green when is running at 100 Mbps Glows green when unit is powered RJ-45 LED Functions are as follows: LNK/ACT... -
Page 7: Troubleshooting
Troubleshooting • PWR LED glows green when the unit is powered. If this LED is not lit, contact IMC Networks Technical Support. • If the PSE LED flashes twice, it may indicate an over current condition. The PSE LED should maintain solid green, to indicate consistent power. Check the PD device and its requirements. -
Page 8: Specifications For The Poe Mcbasic
RFC-2475 DiffServ QoS PoE Precautions (For Inside-a-Building Installation ONLY) The PoE McBasic is for inside-a-building installation only. It cannot be installed in an outside-a-building environment, as it cannot meet the PoE requirements, per the PoE standard. If installing the device outside, serious damage can occur and void... -
Page 9: Imc Networks Technical Support
IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com... -
Page 10: Fiber Optic Cleaning Guidelines
Dust caps are installed at IMC Networks to ensure factory-clean optical devices. These protective caps should not be removed until the moment of connecting the fiber cable to the device. Should it be necessary to disconnect the fiber device, reinstall the protective dust caps. -
Page 11: Safety Certifications
Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1... - Page 12 The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. PoE McBasic is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
