How to change the direction of the drain hose

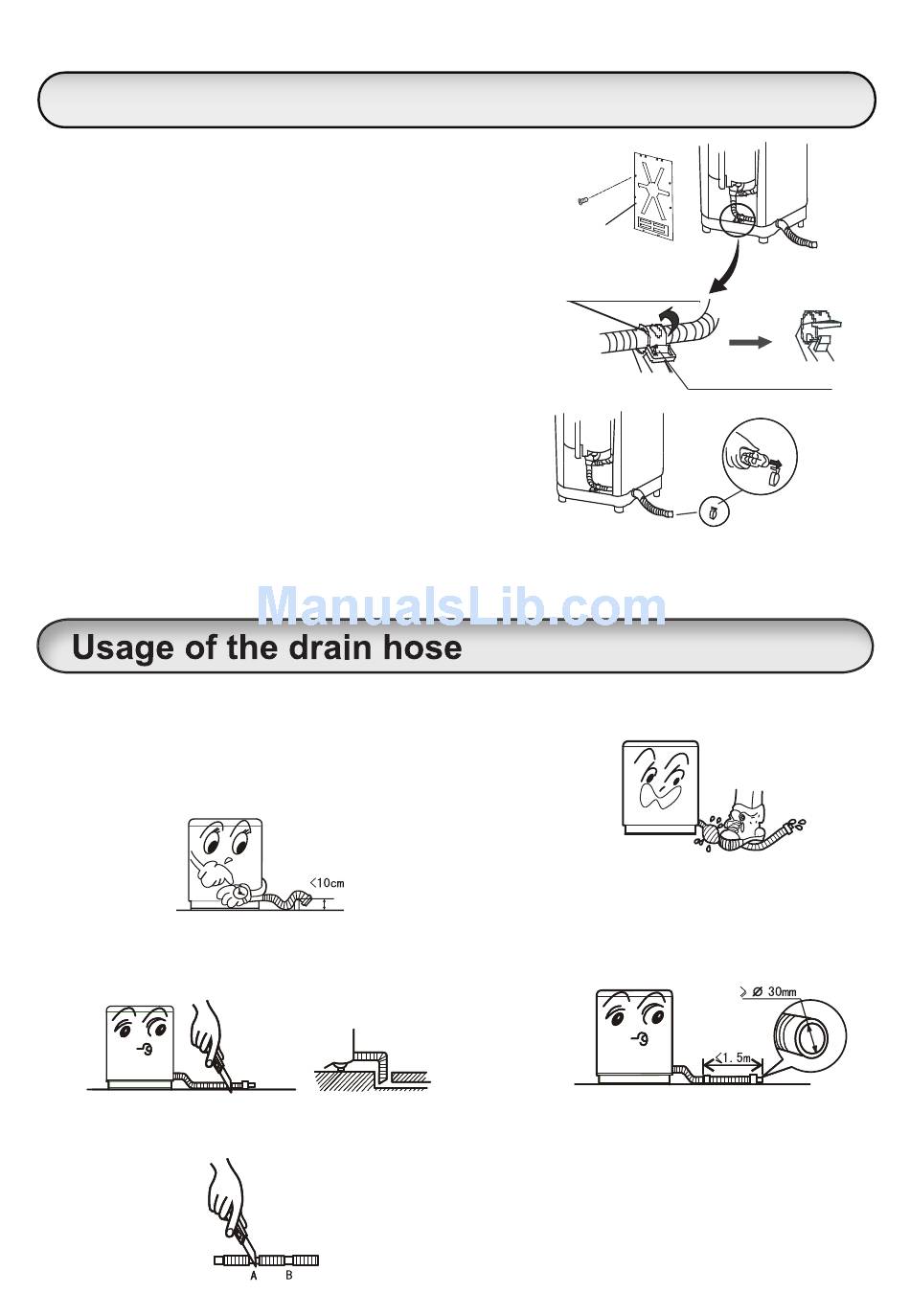

1.Dismantle the back cover of the washing machine.
2.Press the spring lamination lightly and pull the top
segment of the drain hose decumbent then put
down the drain hose from the drain hose frame.
3.Put down the drain hose, squeeze the drain hose
lightly and take off the hook, put the drain hose into
the cabinet. Take off the small baffle which installed
on the other drain outlet and install it on the side
which won't install the drain hose.
4.Extend the drain hose from the other side and install
it on the base by the drain hose frame
5.Install the back cover.
Remark: In order to make sure of the correct of installation, it is suggested to change the
direction of the drain hose with our company serviceman.
The drain hose shall drain smoothly.
The height of the drain hose shall be less
than 10cm , or the drainage will not be smooth,
and cost such long time that the machine may
stop at mid way.
If the drain hose is too long, cut it at mid
point. To make smooth drainage,cut the front
end of the hose slantingly.
If the extra hose is too long,cut it either at A or at B point.
Back cover
Drain hose frame
Spring lamination
Do not trample or press the drain hose.
If extra drain hose is needed,please
make separate purchase.The inner
diameter of the extra hose shall not
less than 30mm, and the length shall
not exceed 1.5m.
