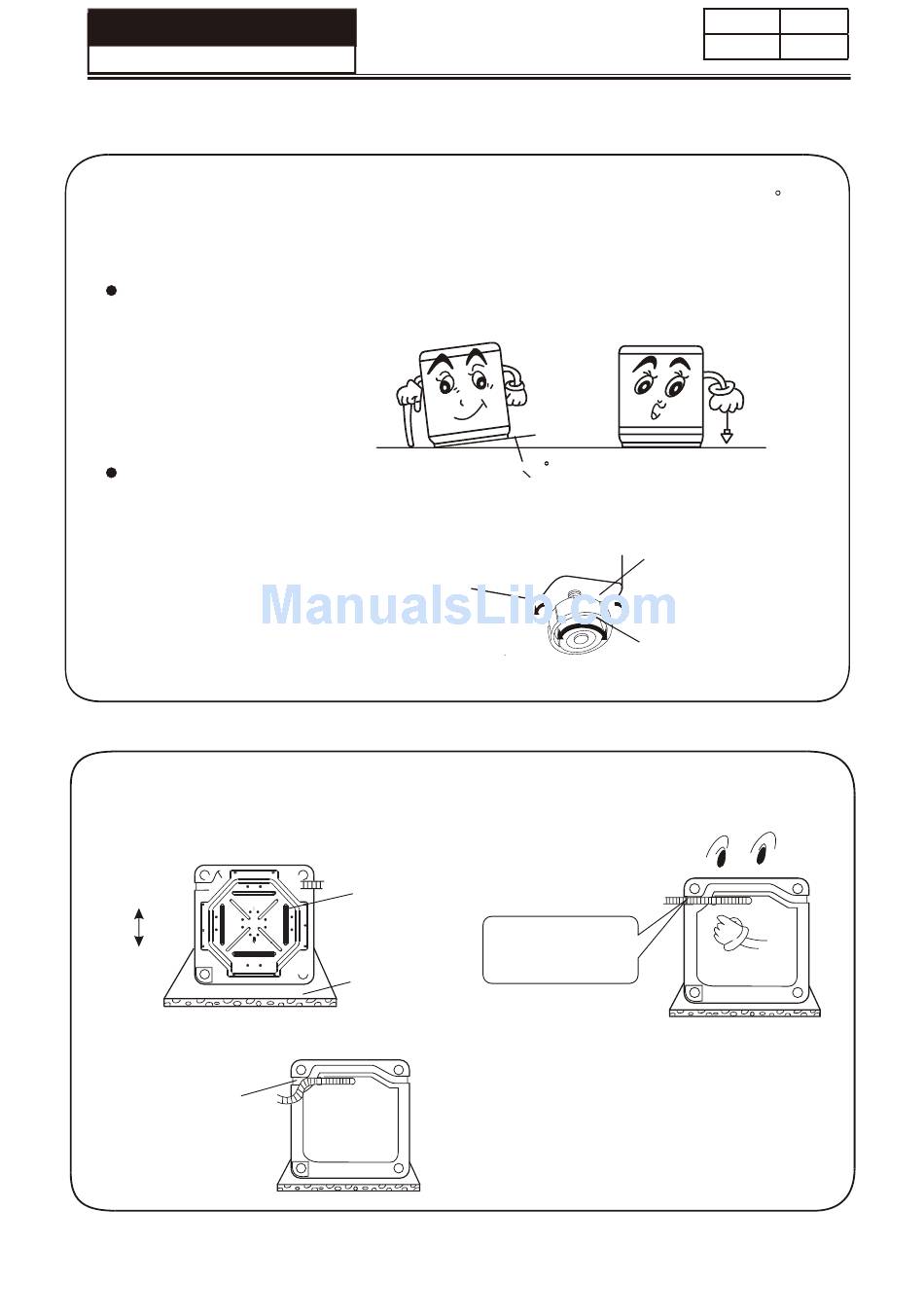

4-3 Adjustment of the installation position

The largest allowed slope of the shank base of the machine is 2 .
Slanting or rough ground will result in unstable running or stoppage
Confirm it's horizontal:
Hang up the lead line to
confirm it is horizontal.
Adjust the adjustable foot:
1) Please lift the foot side slightly in adjusting the foots. Loosen
the adjustable nut, and twist the foot.
2) Fasten the nut after adjustment.

4-4 How to change the direction of the drain hose

1.Lean the machine down gently with the
front surface facing the ground. Loosen
the eight screws by a cross screwdriver.
Take off the bottom plate
Back
Front
2.Pull out the drain hose from the right side
groove.
Use this groove after
direction changing
<2
Loosen
3.Extend the drain hose from the left side.
Push the drain hose into the groove with
hands.
Bottom plate
Push the drain
hose into the
groove with hands
Soft item
4.Install the bottom plate (method as stated in p6),
then lift the machine up gently.
-9-
adjustable nut
Fasten
adjustable foot
High
Low
Issue
Rev.
