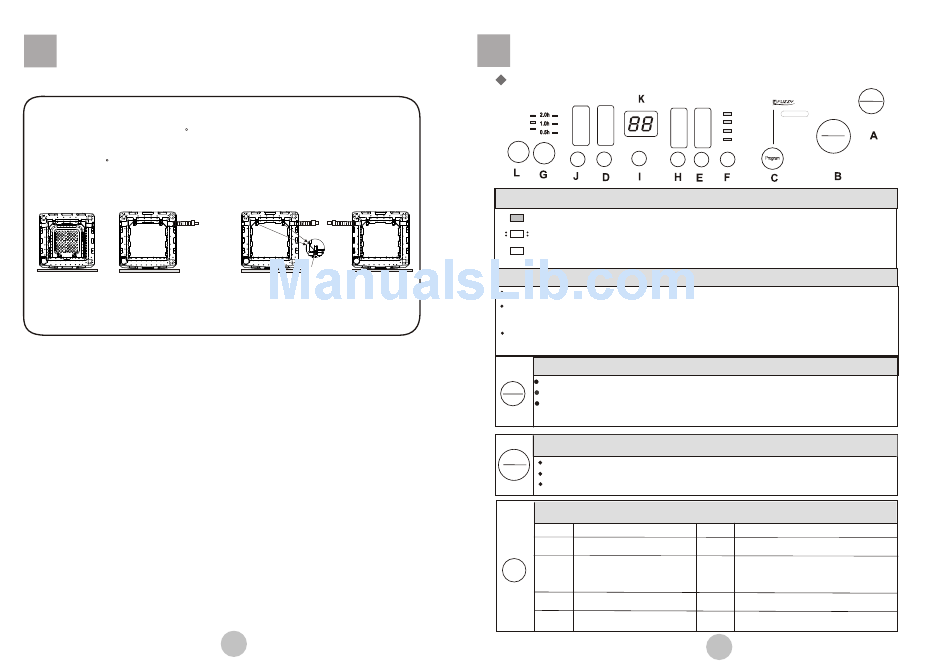

How to change the direction of the drain hose

1.
Lean the machine down gently with the front
surface facing the ground.
as indicated in Figure 1
2.Dismantle the rear cover of the washing machine.
as indicated in Figure 2
3.Pinch the mouth of drain pipe and take off the
pipe hook.
Figure 1
Figure 2
Remarks: in order to make sure of the correct of installation, it is suggested to change the direction of
the drain hose with our company serviceman .
4.Put your hand into the machine and loosen the
clip of drain pipe support then pull inside the pipe
and fetch out from the other side and set it on the
clip,
.
as indicated in Figure 3
5.Install Hook of fixing the drain hose and bottom
cover
then lift the machine up gently.
Unhinge clamp
outlet
Figure 3
6
5 Use the operation button
Description of operation button
REMAIN(MINUTES)
20
40
3
FIRST RINSE
15
30
SECOND RINSE
2
THIRD RINSE
10
20
1
5
10
RESERVER(HOURS)
OVERFLOW
RESERVE
AIR DRY
WATER
DELAY
SOAK
WASH
RINSE
Indicator mode and meaning
Off
Flashing, indicating the running program
On, indicating the program about to run or the selection mode
Child lock function
The function is intended for children safety and preventing the washing program from accidental changes by children.
Push and hold the water level button and spin button, then push down the power on/off button .
You can continue setting desired washing procedures. After setting ,push down the start/pause button. The
child lock function is activated. all of the buttons are locked and cannot make selection .
Release the child lock function :push down water level button and spin button at the same time for more 2seconds .
After a beep sound ,the child lock function is released.
A "POWER" button
Push the "POWER" button to switch on the power.
POWER
Under power-on mode, push it to switch off the power.
ON/OFF
Push the "POWER" button to switch on the power. If the "START/PAUSE" button is not pushed, the machine will
switch off the power automatically after 5 minutes.
B "START/PAUSE" button
START
After the power is switched on, press it to start the machine
PAUSE
During working, push it to pause.
During pause, push this button to restart and go on working
C "PROGRAM" button
Program
Application
COMMON
Washing the common laundries
PROGRAM
BLANKET
Washing the relatively big and thick laundries
JEAN
Washing the relatively big and thick laundries
SPEEDY
Quick washing for normal laundries
POWER
ON/OFF
7
8
9
STANDARD
COMMON
5
6
BLANKET
MEMORY
7
3
4
CHILD
WOOL
5
START
2
1
SPEEDY
3
SILK
PAUSE
WATER
SPIN
LEVEL
Program
Application
STANDARD
Standard saving washing for normal laundries
The commom wash ,
the washing machine
will set to MEMORY program including
MEMORY
"wash, rinse,spin,water value "automatically
last time
Washing for the woollen laundries,
under 2.5kg
WOOL
SILK
Washing the silk laundries
11
