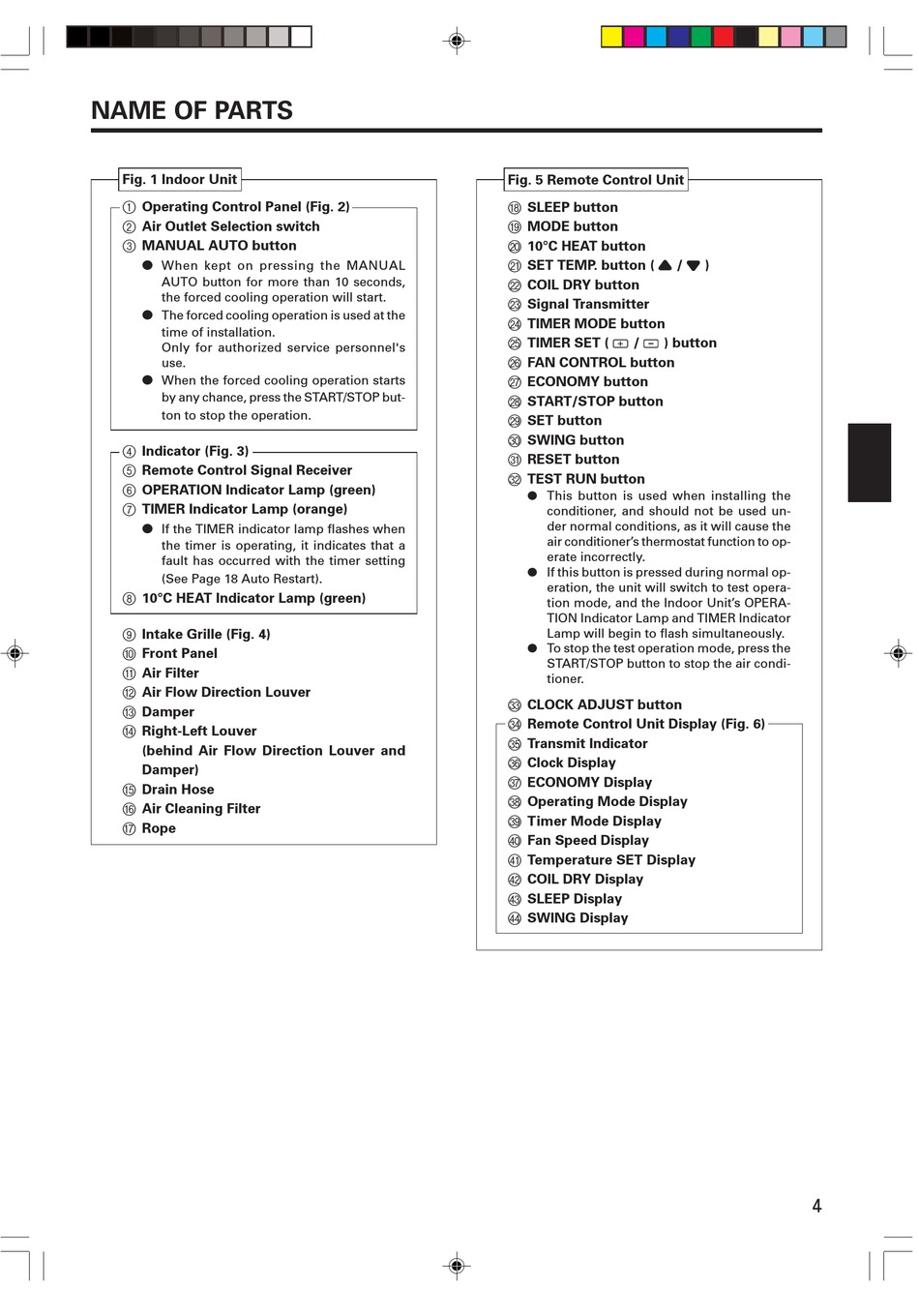

NAME OF PARTS

Fig. 1 Indoor Unit
1 Operating Control Panel (Fig. 2)
2 Air Outlet Selection switch
3 MANUAL AUTO button
When kept on pressing the MANUAL
AUTO button for more than 10 seconds,
the forced cooling operation will start.
The forced cooling operation is used at the
time of installation.
Only for authorized service personnel's
use.
When the forced cooling operation starts
by any chance, press the START/STOP but-
ton to stop the operation.
4 Indicator (Fig. 3)
5 Remote Control Signal Receiver
6 OPERATION Indicator Lamp (green)
7 TIMER Indicator Lamp (orange)
If the TIMER indicator lamp flashes when
the timer is operating, it indicates that a
fault has occurred with the timer setting
(See Page 18 Auto Restart).
8 10°C HEAT Indicator Lamp (green)
9 Intake Grille (Fig. 4)
0 Front Panel
A Air Filter
B Air Flow Direction Louver
C Damper
D Right-Left Louver
(behind Air Flow Direction Louver and
Damper)
E Drain Hose
F Air Cleaning Filter
G Rope
Fig. 5 Remote Control Unit
H SLEEP button
I MODE button
J 10°C HEAT button
K SET TEMP. button (
/
L COIL DRY button
M Signal Transmitter
N TIMER MODE button
O TIMER SET (
/
) button
P FAN CONTROL button
Q ECONOMY button
R START/STOP button
S SET button
T SWING button
U RESET button
V TEST RUN button
● This button is used when installing the
conditioner, and should not be used un-
der normal conditions, as it will cause the
air conditioner's thermostat function to op-
erate incorrectly.
● If this button is pressed during normal op-
eration, the unit will switch to test opera-
tion mode, and the Indoor Unit's OPERA-
TION Indicator Lamp and TIMER Indicator
Lamp will begin to flash simultaneously.
● To stop the test operation mode, press the
START/STOP button to stop the air condi-
tioner.
W CLOCK ADJUST button
X Remote Control Unit Display (Fig. 6)
Y Transmit Indicator
Z Clock Display
[ ECONOMY Display
\ Operating Mode Display
] Timer Mode Display
` Fan Speed Display
a Temperature SET Display
b COIL DRY Display
c SLEEP Display
d SWING Display
)
