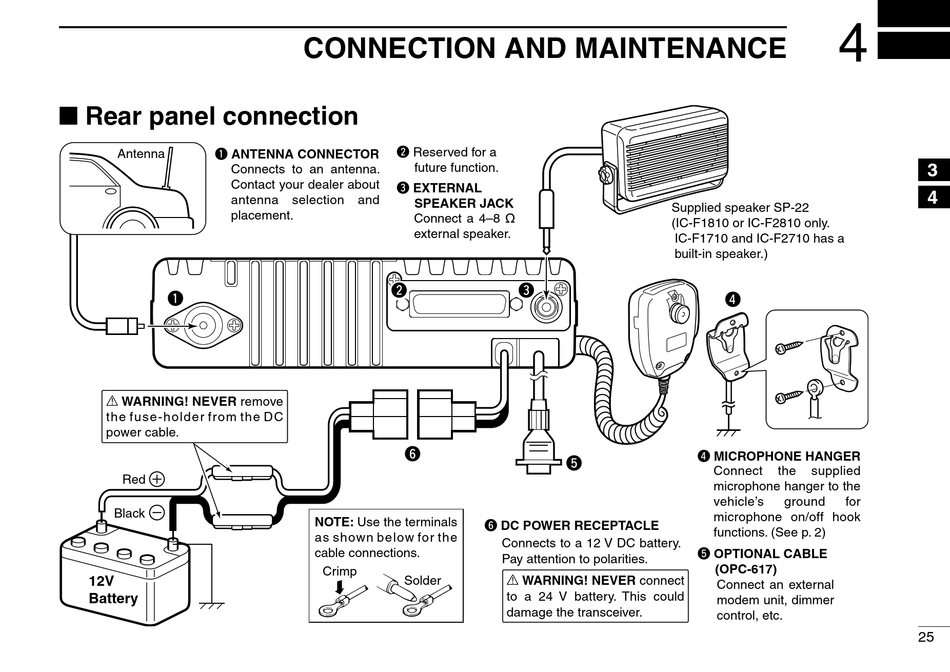

n Rear panel connection
Antenna q ANTENNA CONNECTOR
Connects to an antenna.
Contact your dealer about
antenna
placement.
q
R WARNING! NEVER remove
the fuse-holder from the DC
power cable.
Red
Black
12V
Battery

CONNECTION AND MAINTENANCE

w Reserved for a
future function.
e EXTERNAL
selection and
SPEAKER JACK
Connect a 4–8 ø
external speaker.
w
y
NOTE: Use the terminals
as shown below for the
cable connections.
Crimp
Solder
e
t
y DC POWER RECEPTACLE
Connects to a 12 V DC battery.
Pay attention to polarities.
R WARNING! NEVER connect
to a 24 V battery. This could
damage the transceiver.
4
Supplied speaker SP-22
(IC-F1810 or IC-F2810 only.
IC-F1710 and IC-F2710 has a
built-in speaker.)
r
r MICROPHONE HANGER
Connect the supplied
microphone hanger to the
vehicle's ground for
microphone on/off hook
functions. (See p. 2)
t OPTIONAL CABLE
(OPC-617)
Connect an external
modem unit, dimmer
control, etc.
3
4
25
