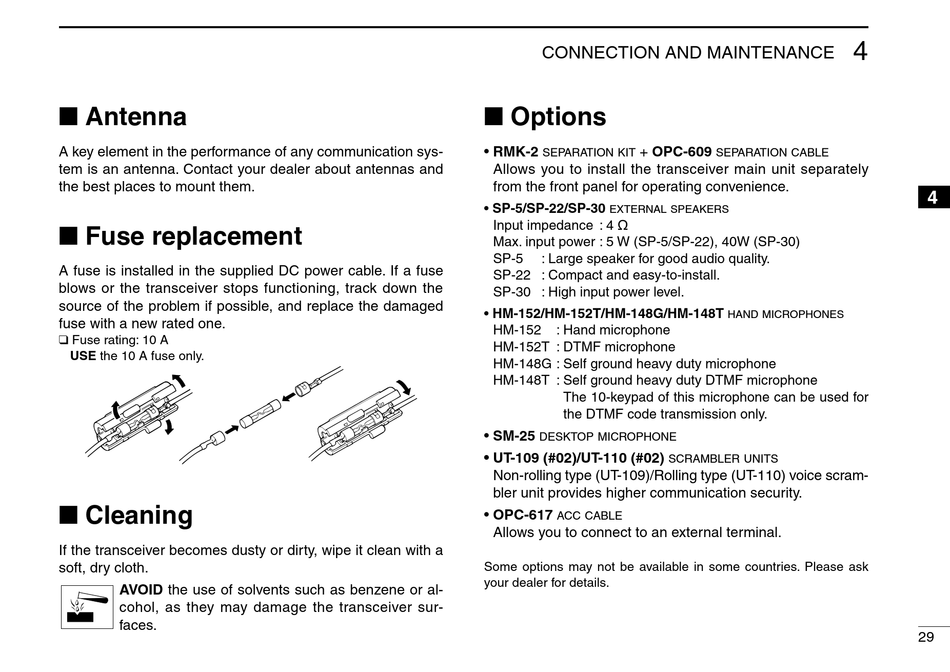

n Antenna
A key element in the performance of any communication sys-
tem is an antenna. Contact your dealer about antennas and
the best places to mount them.
n Fuse replacement
A fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem if possible, and replace the damaged
fuse with a new rated one.
q Fuse rating: 10 A
USE the 10 A fuse only.
n Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
AVOID the use of solvents such as benzene or al-
cohol, as they may damage the transceiver sur-
faces.

CONNECTION AND MAINTENANCE

n Options
• RMK-2 + OPC-609
separation kit
Allows you to install the transceiver main unit separately
from the front panel for operating convenience.
• SP-5/SP-22/SP-30
external speakers
Input impedance : 4 ø
Max. input power : 5 W (SP-5/SP-22), 40W (SP-30)
SP-5 : Large speaker for good audio quality.
SP-22 : Compact and easy-to-install.
SP-30 : High input power level.
• HM-152/HM-152T/HM-148G/HM-148T
HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148G : Self ground heavy duty microphone
HM-148T : Self ground heavy duty DTMF microphone
The 10-keypad of this microphone can be used for
the DTMF code transmission only.
• SM-25
desktop microphone
• UT-109 (#02)/UT-110 (#02)
Non-rolling type (UT-109)/Rolling type (UT-110) voice scram-
bler unit provides higher communication security.
• OPC-617
acc cable
Allows you to connect to an external terminal.
Some options may not be available in some countries. Please ask
your dealer for details.
separation cable
hand microphones
scrambler units
