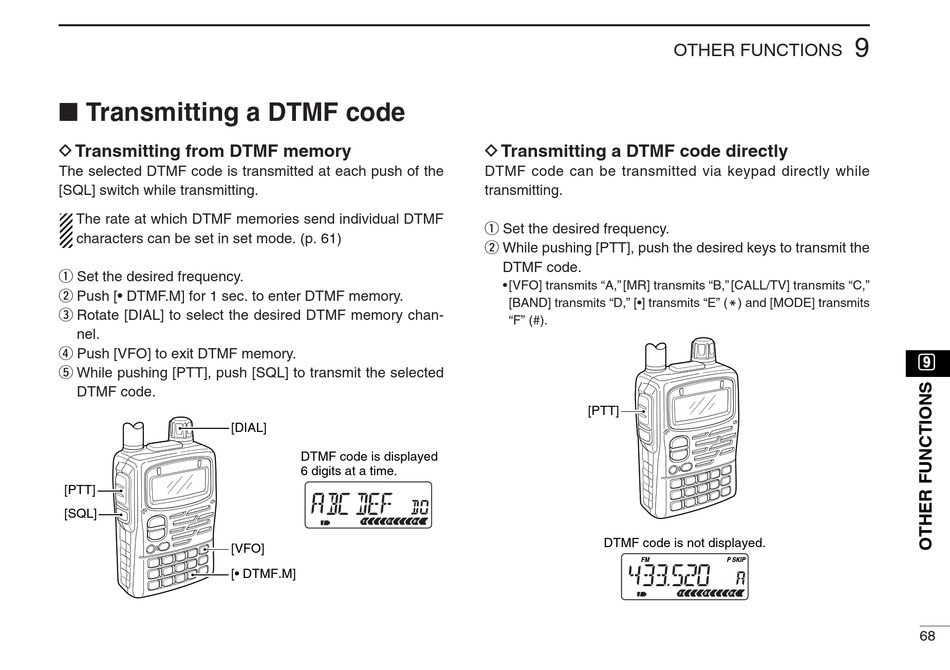

■ Transmitting a DTMF code

D Transmitting from DTMF memory
The selected DTMF code is transmitted at each push of the
[SQL] switch while transmitting.
The rate at which DTMF memories send individual DTMF
characters can be set in set mode. (p. 61)
q Set the desired frequency.
w Push [• DTMF.M] for 1 sec. to enter DTMF memory.
e Rotate [DIAL] to select the desired DTMF memory chan-
nel.
r Push [VFO] to exit DTMF memory.
t While pushing [PTT], push [SQL] to transmit the selected
DTMF code.
[DIAL]
[PTT]
[SQL]
[VFO]
[• DTMF.M]
DTMF code is displayed
6 digits at a time.
D Transmitting a DTMF code directly
DTMF code can be transmitted via keypad directly while
transmitting.
q Set the desired frequency.
w While pushing [PTT], push the desired keys to transmit the
DTMF code.
• [VFO] transmits "A," [MR] transmits "B," [CALL/TV] transmits "C,"
[BAND] transmits "D," [•] transmits "E" (M) and [MODE] transmits
"F" (#).
[PTT]
DTMF code is not displayed.
FM
OTHER FUNCTIONS
P SKIP
9
o o
68
