4
BASIC OPERATION

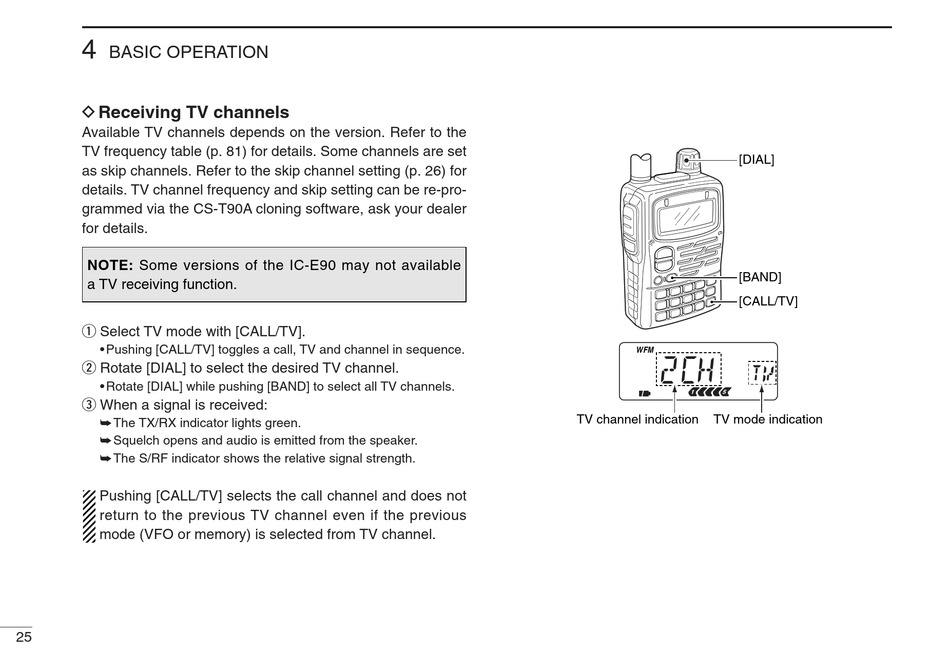

D Receiving TV channels
Available TV channels depends on the version. Refer to the
TV frequency table (p. 81) for details. Some channels are set
as skip channels. Refer to the skip channel setting (p. 26) for
details. TV channel frequency and skip setting can be re-pro-
grammed via the CS-T90A cloning software, ask your dealer
for details.
NOTE: Some versions of the IC-E90 may not available
a TV receiving function.
q Select TV mode with [CALL/TV].
• Pushing [CALL/TV] toggles a call, TV and channel in sequence.
w Rotate [DIAL] to select the desired TV channel.
• Rotate [DIAL] while pushing [BAND] to select all TV channels.
e When a signal is received:
➥ The TX/RX indicator lights green.
➥ Squelch opens and audio is emitted from the speaker.
➥ The S/RF indicator shows the relative signal strength.
Pushing [CALL/TV] selects the call channel and does not
return to the previous TV channel even if the previous
mode (VFO or memory) is selected from TV channel.
25
[DIAL]
[BAND]
[CALL/TV]
W FM
TV channel indication TV mode indication
