Specifying The Hba Driver Settings; Shared Components Dialog Box - Qlogic SANsurfer FC HBA Manager User Manual

A
3. Click the shared device or LUN in the left column to view the shared hosts in
the right column.
4. To close the Shared Components dialog box and return to the Shared
Device Found dialog box, click OK.
5. To close the Shared Device Found dialog box, click OK.
When SANsurfer FC HBA Manager updates the configuration to reflect
configuration changes made by another host, the "configuration
change - reloading" message appears. Click OK.

Specifying the HBA Driver Settings

NOTE:
If you are using the IOCTL module with inbox drivers in Red Hat 4.0, the
driver settings are disabled. The driver settings are also disabled if you are
using sysfs supported inbox drivers with SLES 10.0.
When you set HBA driver parameters, you specify the following:
Target: Display Options. Indicates that only targets configured using
SANsurfer FC HBA Manager are seen by the system.
Target Binding Options. Indicates that the driver binds the target ID using
the target's world wide port name (WWPN) or port ID.
SN0054651-00 B

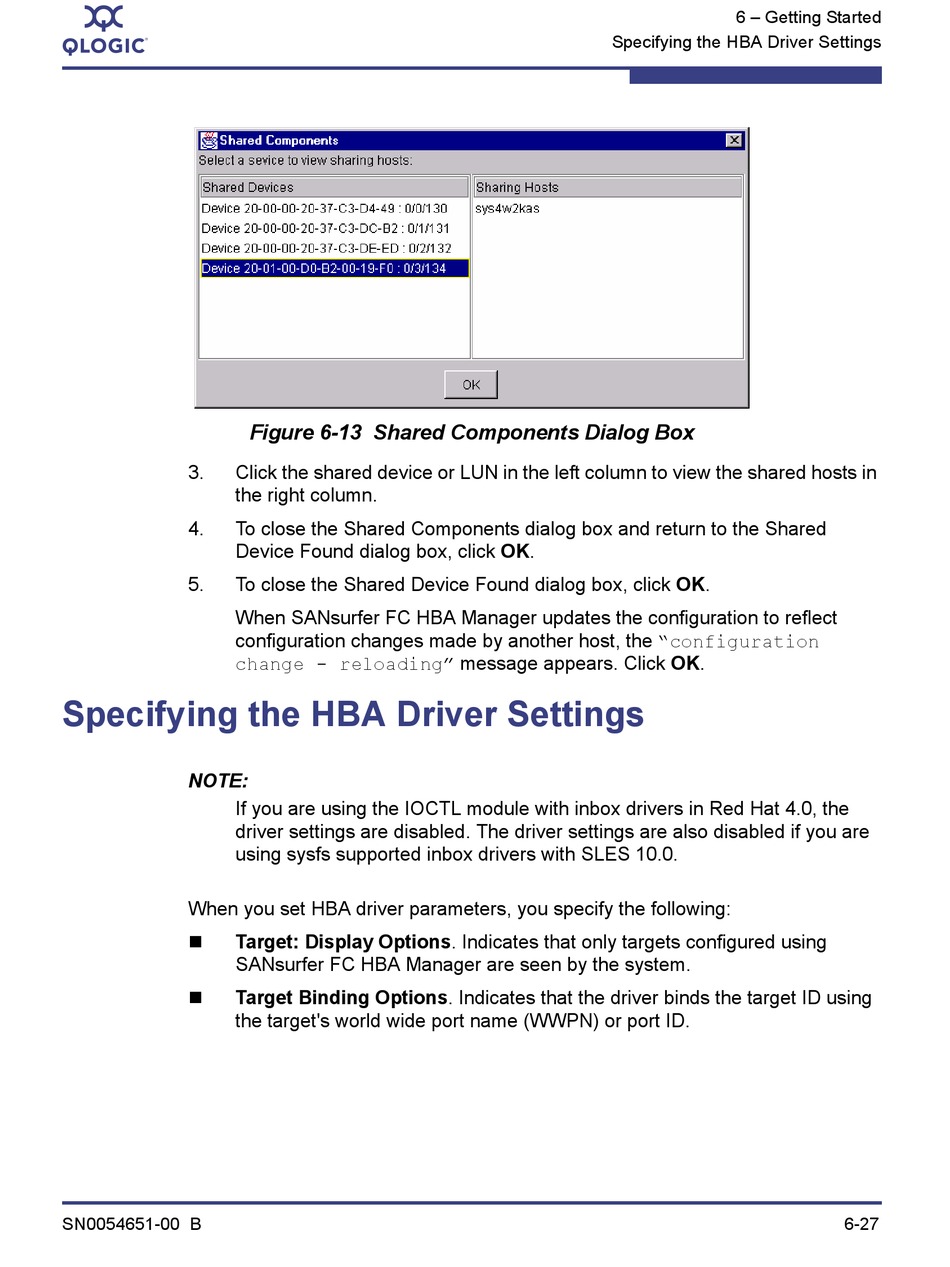

Figure 6-13 Shared Components Dialog Box
6 – Getting Started
Specifying the HBA Driver Settings
6-27
