5 – Installing SANsurfer FC HBA Manager
Web- and CD-Based Installation Updates
d.
e.
When your computer accesses the Internet, the Update dialog box appears
(Figure

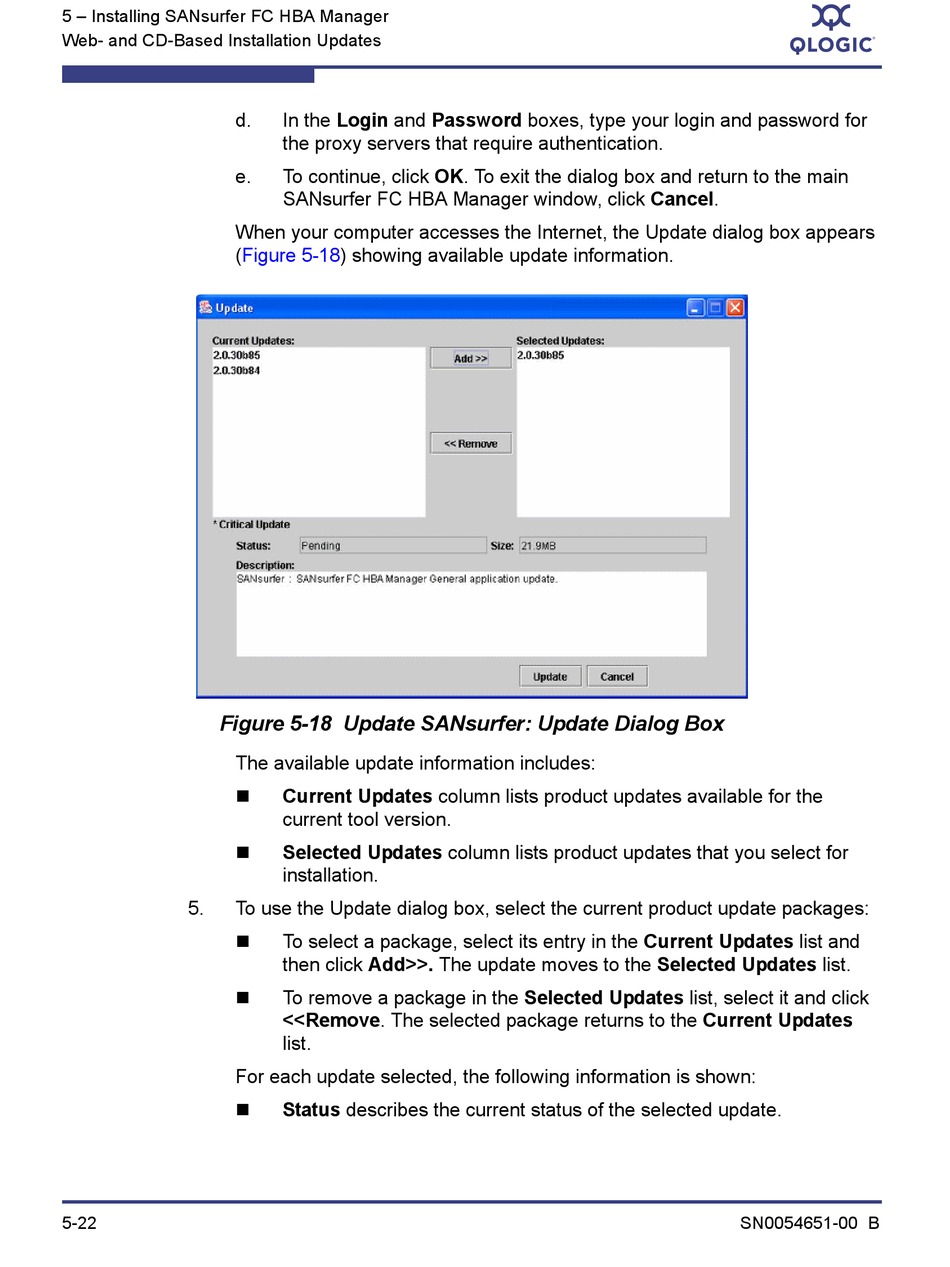

Figure 5-18 Update SANsurfer: Update Dialog Box
The available update information includes:
5. To use the Update dialog box, select the current product update packages:
For each update selected, the following information is shown:
5-22
In the Login and Password boxes, type your login and password for
the proxy servers that require authentication.
To continue, click OK. To exit the dialog box and return to the main
SANsurfer FC HBA Manager window, click Cancel.
5-18) showing available update information.
Current Updates column lists product updates available for the
current tool version.
Selected Updates column lists product updates that you select for
installation.
To select a package, select its entry in the Current Updates list and
then click Add>>. The update moves to the Selected Updates list.
To remove a package in the Selected Updates list, select it and click
<<Remove. The selected package returns to the Current Updates
list.
Status describes the current status of the selected update.
S
SN0054651-00 B
