6 – Getting Started

SANsurfer FC HBA Manager Main Window

Signal
The SANsurfer FC HBA Manager window contains an HBA tree, tool tabs, a title
bar, menu bar, toolbar, tabbed pages, and a status line. The toolbar conveniently
provides buttons for commonly used functionality.
The HBA tree lists all hosts—including IP addresses—with their connected HBAs,
HBA ports, devices, and LUNs. When you click an item in the HBA tree, the status
line shows additional information about the selection. When you hold your cursor
over an HBA in the HBA tree for a few seconds, information about the HBA model
appears. The HBA tree contains icons and text as visual indicators for the hosts,
HBAs, ports, devices, and LUNs.
To view the SANsurfer FC HBA Manager main window:
1. In the left frame of the main window, click the FC HBA tab. SANsurfer FC
HBA Manager shows in the title bar.
2. Connect to the host (for details, see the SANsurfer FC HBA Manager help
system). The SANsurfer FC HBA Manager main window opens.
shows the elements contained on the main window.
6-6

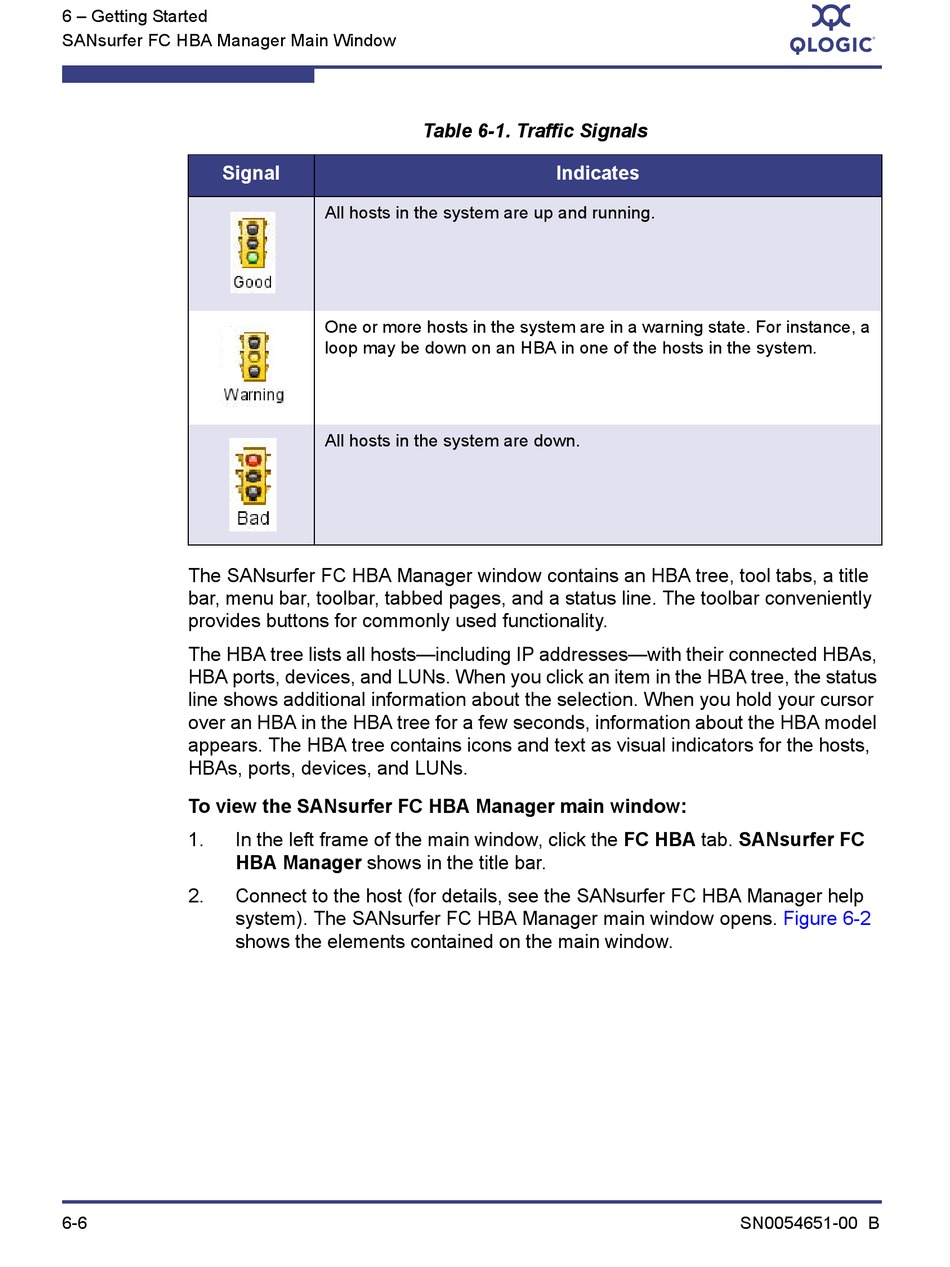

Table 6-1. Traffic Signals
All hosts in the system are up and running.
One or more hosts in the system are in a warning state. For instance, a
loop may be down on an HBA in one of the hosts in the system.
All hosts in the system are down.
Indicates
S
Figure 6-2
SN0054651-00 B
