6 – Getting Started
Setting the HBA Event Log Option
The Options dialog box opens

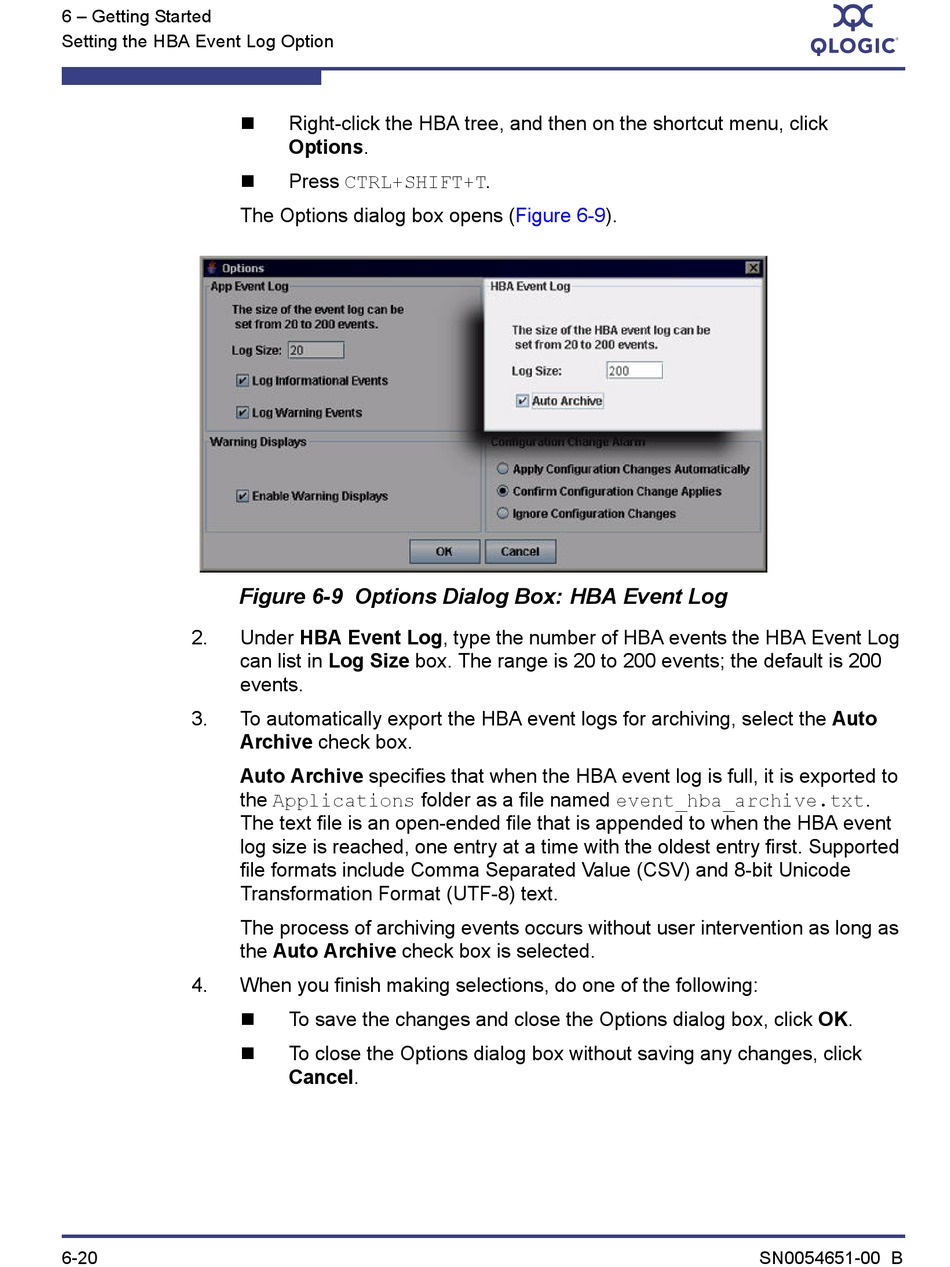

Figure 6-9 Options Dialog Box: HBA Event Log
2. Under HBA Event Log, type the number of HBA events the HBA Event Log
can list in Log Size box. The range is 20 to 200 events; the default is 200
events.
3. To automatically export the HBA event logs for archiving, select the Auto
Archive check box.
Auto Archive specifies that when the HBA event log is full, it is exported to
the Applications folder as a file named event_hba_archive.txt.
The text file is an open-ended file that is appended to when the HBA event
log size is reached, one entry at a time with the oldest entry first. Supported
file formats include Comma Separated Value (CSV) and 8-bit Unicode
Transformation Format (UTF-8) text.
The process of archiving events occurs without user intervention as long as
the Auto Archive check box is selected.
4. When you finish making selections, do one of the following:
6-20
Right-click the HBA tree, and then on the shortcut menu, click
Options.
Press CTRL+SHIFT+T.
To save the changes and close the Options dialog box, click OK.
To close the Options dialog box without saving any changes, click
Cancel.
(Figure 6-9).
S
SN0054651-00 B
