6 – Getting Started

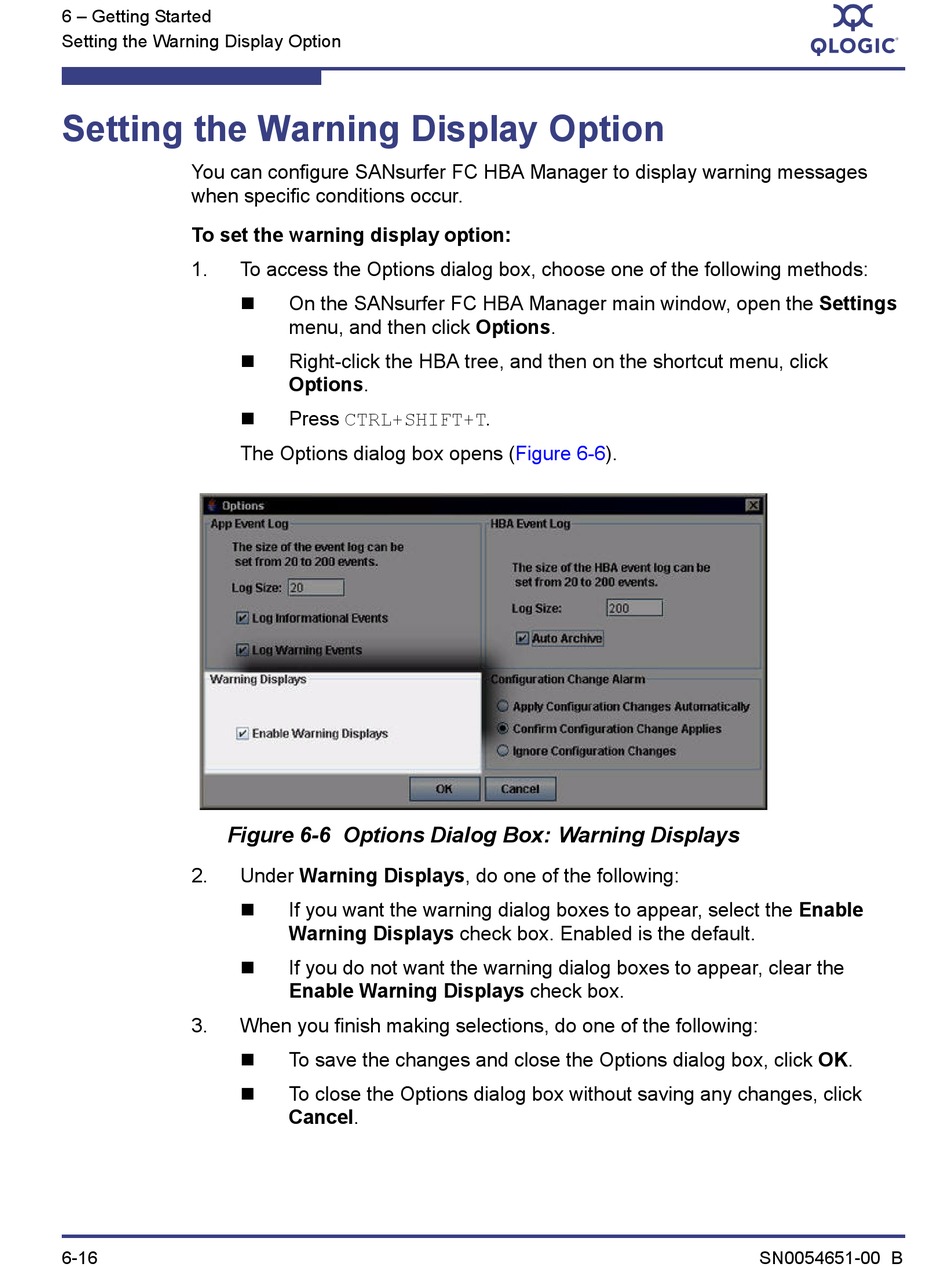

Setting the Warning Display Option

Setting the Warning Display Option
You can configure SANsurfer FC HBA Manager to display warning messages
when specific conditions occur.
To set the warning display option:
1. To access the Options dialog box, choose one of the following methods:
The Options dialog box opens
Figure 6-6 Options Dialog Box: Warning Displays
2. Under Warning Displays, do one of the following:
3. When you finish making selections, do one of the following:
6-16
On the SANsurfer FC HBA Manager main window, open the Settings
menu, and then click Options.
Right-click the HBA tree, and then on the shortcut menu, click
Options.
Press CTRL+SHIFT+T.
If you want the warning dialog boxes to appear, select the Enable
Warning Displays check box. Enabled is the default.
If you do not want the warning dialog boxes to appear, clear the
Enable Warning Displays check box.
To save the changes and close the Options dialog box, click OK.
To close the Options dialog box without saving any changes, click
Cancel.
(Figure 6-6).
S
SN0054651-00 B
