Storage Devices, Mouse, Audio & Printer

8 Channel Sound Support

2
If you wish to configure your system for 8 channel sound support, then the fol-
lowing ports should be used as outputs.
• Side Speaker Out - Connect to S/PDIF Out
• Center/Subwoofer Speaker Out - Connect to Microphone In
• Front Speaker Out - Connect to Speaker/Headphone Out
• Rear Speaker Out - Connect to Line In

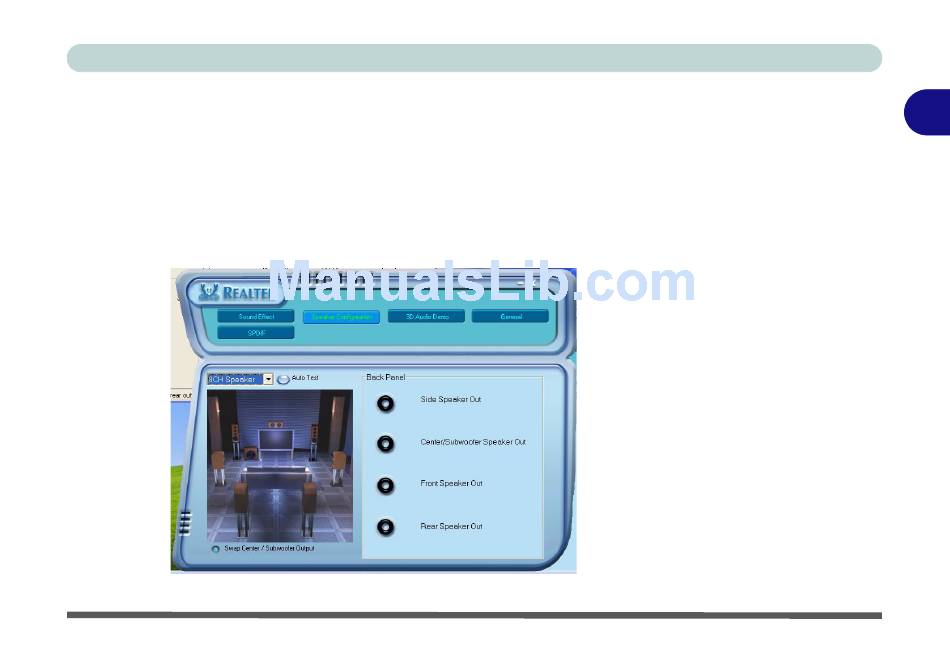

Figure 2 - 8
8 Channel Sound
Support
Audio Features 2 - 11
